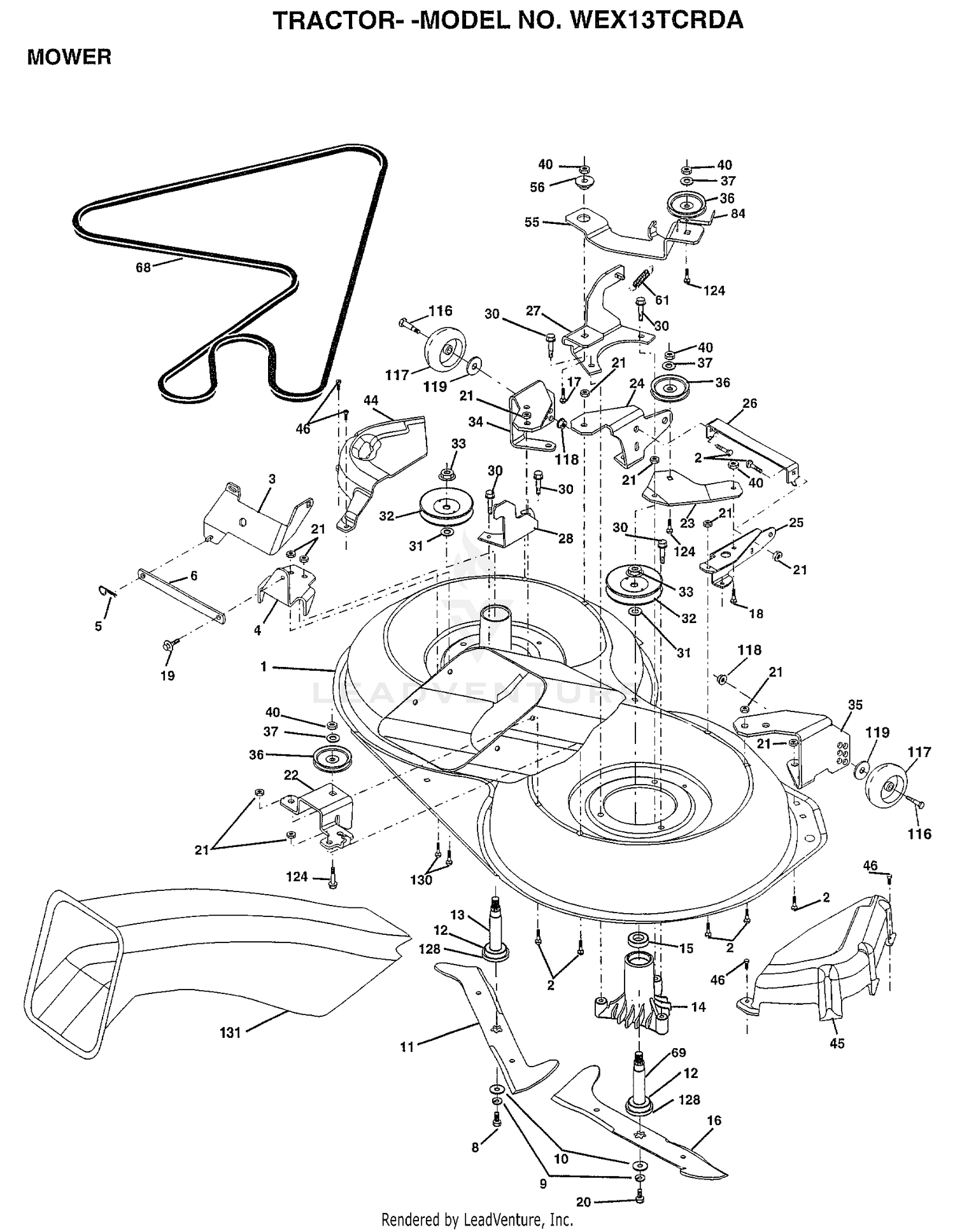

| Ref | Part Number | Description |
|---|
| 1 |
165552 |
HOUSING.ASM.MOWER Price: Call Us |
| 2 |
322-3 |
SCREW-HH Price: $0.79 |
| 2 |
72140506 |
BOLT Price: Call Us |
| 3 |
165569 |
BRKT.ASM.S-BAR.CHASSIS Price: Call Us |
| 3 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 4 |
165558 |
BRKT.BAR.SWAY.DECK Price: Call Us |
| 5 |
23-1840 |
BUSHING-TAPERLOCK Price: $92.22 |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 6 |
165557 |
BAR.SWAY.92.CRD Price: Call Us |
| 7 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 9 |
58-0070 |
DISC BRAKE ASM Price: $316.73 |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 11 |
165560 |
BLADE.3-1.LH.92.CRD Price: Call Us |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 12 |
58-5430 |
PISTON MOTOR ASM Price: $3,072.75 |
| 13 |
137645 |
SUB= 137646 Price: Call Us |
| 14 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 15 |
110485X |
BEARING Price: Call Us |
| 16 |
165561 |
BLADE.3-1.RH.CRD.92 Price: Call Us |
| 16 |
323-18 |
SCREW-HH Price: $0.82 |
| 17 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 17 |
72140610 |
BOLT.3/8-14X1.25 Price: Call Us |
| 18 |
353-949 |
O-RING Price: $3.49 |
| 18 |
72110608 |
BOLT D Price: Call Us |
| 19 |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 19 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 20 |
165484 |
BOLT.3/8-24X1.25 Price: Call Us |
| 20 |
327-3 |
SCREW-HH Price: $1.49 |
| 21 |
73680500 |
SUB= 73690500 Price: Call Us |
| 22 |
165243 |
BRKT.IDLER.SPRT.CRD Price: Call Us |
| 23 |
3219-5 |
NUT-HEX Price: $1.22 |
| 24 |
108-1434-03 |
PLANETARY GEAR DRIVE ASM Price: $3,448.21 |
| 24 |
165242 |
BRKT.SUSP.LF.92.CRD Price: Call Us |
| 25 |
165244 |
BRKT.SUSP.RF.92.CRD Price: Call Us |
| 26 |
165237 |
BRACE.SUPT.SUSP.FRT.CRD Price: Call Us |
| 26 |
66-5660 |
WHEEL AND TIRE ASM Price: $567.51 |
| 27 |
165568 |
BRKT.ASM.SUSP.RR.92.CRD Price: Call Us |
| 27 |
323-20 |
SCREW-HH Price: $1.28 |
| 28 |
165567 |
BRKT.ASM.SUSP.LR.92.CRD Price: Call Us |
| 28 |
58-3780 |
TUBE-SPACE Price: $25.99 |
| 29 |
29-1060 |
BRACKET-SECONDARY Price: $135.49 |
| 31 |
129963 |
WASHER Price: Call Us |
| 32 |
153531 |
PULLEY.MAND.36/46 Price: Call Us |
| 32 |
58-0110-03 |
BRACKET-CALIPER, BRAKE Price: $142.37 |
| 33 |
137266 |
SUB= 139729 Price: Call Us |
| 33 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 34 |
165239 |
BRKT.GUAGE.WHL.LF.92.CRD Price: Call Us |
| 34 |
29-1070 |
LEVER ASM Price: $64.17 |
| 35 |
165238 |
BRKT.GUAGE.WHL.RF.92.CRD Price: Call Us |
| 35 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 36 |
146763 |
PULLEY.IDLER.4.25 Price: Call Us |
| 36 |
60-1740 |
NUT Price: $1.53 |
| 37 |
19131316 |
WASHER Price: Call Us |
| 37 |
58-2300 |
LINK-BRAKE Price: $30.30 |
| 38 |
283-67 |
PIN-CLEVIS Price: $2.04 |
| 39 |
29-1080 |
BRAKE PAD Price: $66.87 |
| 40 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 40 |
73680600 |
SUB= 73690600 Price: Call Us |
| 41 |
3253-8 |
WASHER-LOCK Price: $0.47 |
| 44 |
165724 |
COVER.MANDREL.LH.92.CRD Price: Call Us |
| 44 |
92-6058 |
FITTING-STR Price: $105.61 |
| 45 |
165556 |
COVER.MANDREL.RH.92.CRD Price: Call Us |
| 45 |
98-1282 |
ADAPTER-HYD, STRAIGHT Price: $54.52 |
| 46 |
137729 |
SCREW.1/4-20X5/8 Price: Call Us |
| 46 |
340-159 |
FITTING-HYD, 90 DEG This part replaces 98-1281. Price: $55.33 |
| 47 |
86-5480 |
NIPPLE-TEST Price: $48.77 |
| 55 |
165445 |
ARM.IDLER.92.CRD Price: Call Us |
| 56 |
122052X |
SPACER RETAINER Price: Call Us |
| 61 |
165945 |
SPRING.TENSION.BELT Price: Call Us |
| 68 |
165555 |
HEX-BELT.92.MWR.105AA Price: Call Us |
| 69 |
165482 |
SHAFT.ASM.W/LWR.BRG.RH.THD Price: Call Us |
| 116 |
137644 |
BOLT.SHOULDER Price: Call Us |
| 117 |
133957 |
WHEEL GAGE DONUT Price: Call Us |
| 118 |
73930600 |
LOCKNUT Price: Call Us |
| 119 |
19121414 |
WASHER Price: Call Us |
| 124 |
72110612 |
BOLT.3/8-16X1.50 Price: Call Us |
| 128 |
153390 |
WASHER.FELT. Price: Call Us |
| 130 |
72110506 |
SUB= 72270506 Price: Call Us |
| 131 |
165661 |
CHUTE.BAGGER.CRD Price: Call Us |
| 130794 |
MANDREL |
ASM Price: Call Us 130794 |
| 165579 |
MANDREL.ASM.CRD.LH.THREADS |
Price: Call Us 165579 |
