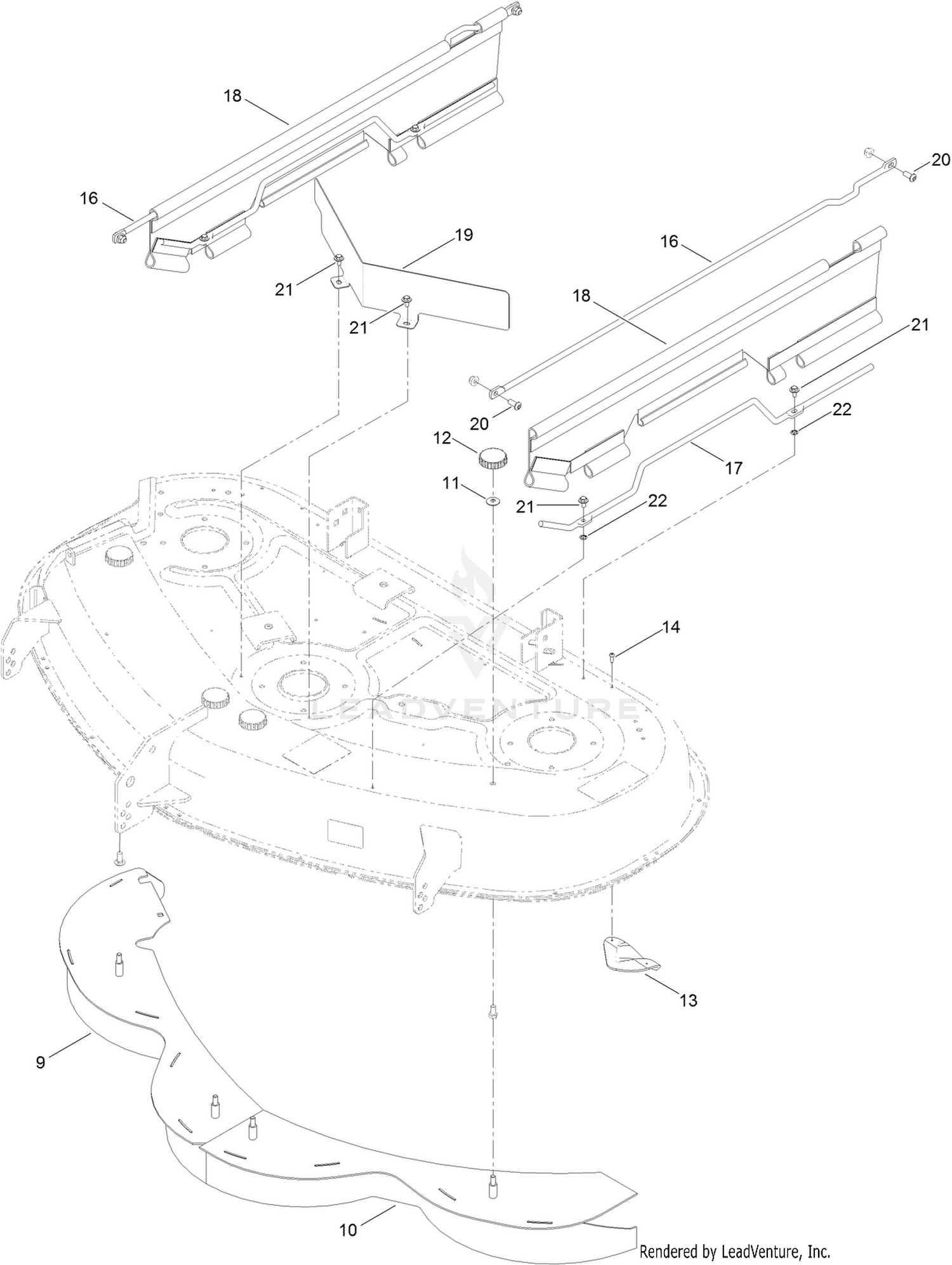

50 Inch Deck and Baffle Assembly
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 9 | 112-4010-03 | RH BAFFLE ASM Price: $176.90 |
| 10 | 112-4011-03 | LH BAFFLE ASM Price: $176.90 |
| 11 | 3290-456 | WASHER-BELLEVILLE Price: $2.59 |
| 12 | 94-5583 | KNOB Price: $12.99 |
| 13 | 76-2160 | PLATE-KICKER Price: $10.37 |
| 14 | 32144-111 | SCREW-PPH Price: $0.66 |
| 16 | 131-3669 | ROD-SUPPORT, UPPER Price: $13.32 |
| 17 | 131-3684 | ROD SUPPORT, LOWER Price: $14.66 |
| 18 | 131-3926 | GUARD-SIDE Price: $16.40 |
| 19 | 131-3648-03 | SHIELD-FRONT Price: $14.71 |
| 20 | 3274-55 | SCREW-HSBH Price: $3.19 |
| 21 | 46-8560 | SCREW-HHFTF Price: $1.79 |
