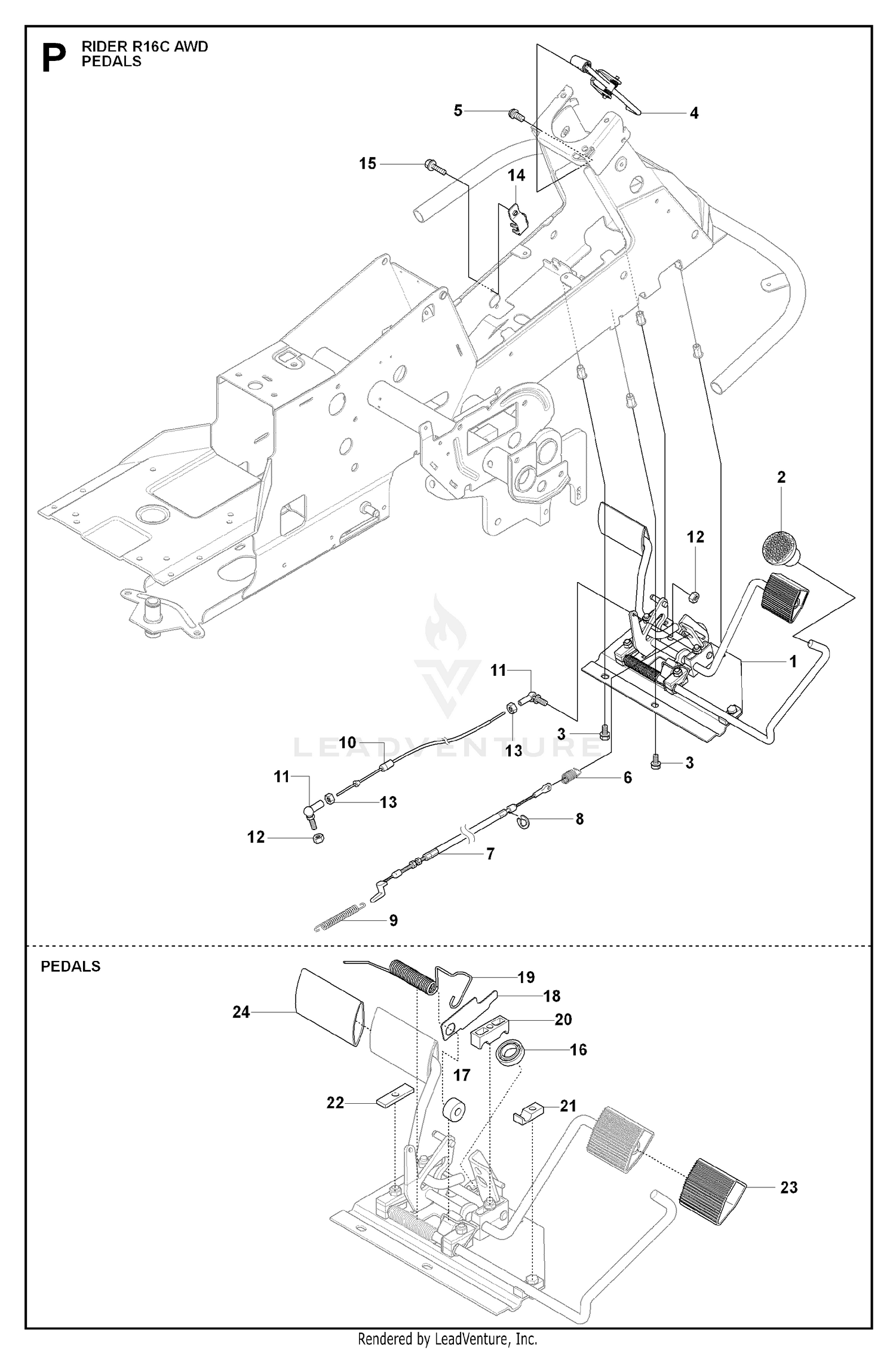

| Ref | Part Number | Description |
|---|
| 1 |
117-8958 |
SPINDLE Price: $184.00 |
| 1 |
583951401 |
PEDAL PLATE ASSY HYDROSTATIC K This part replaces 544126001. Price: $139.99 |
| 2 |
117-8963 |
HUB ASM Price: $121.12 |
| 2 |
586727401 |
KNOB, THREADED This part replaces 535473701. Price: $9.99 |
| 3 |
254-94 |
BEARING-CONE, TAPERED Price: $8.48 |
| 3 |
506570104 |
BOLT Price: $4.99 |
| 4 |
112-1690 |
SEAL-OIL Price: $12.15 |
| 4 |
544403101 |
BRAKE LEVER ASSY Price: $19.99 |
| 5 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 5 |
725236461 |
SCREW Price: $2.99 |
| 6 |
506946301 |
SPRING Price: $7.99 |
| 7 |
117-8259 |
WASHER-SPINDLE Price: $2.71 |
| 7 |
576712101 |
BRAKE WIRE This part replaces 535489601. Price: $32.99 |
| 8 |
117-8260 |
NUT Price: $19.27 |
| 8 |
735310920 |
E-RING 5 Price: $3.99 |
| 9 |
506535603 |
SPRING Price: $4.99 |
| 9 |
93-0307 |
NUT-LOCK, RETAINER Price: $3.36 |
| 10 |
582152001 |
CONTROL CABLE TRANSMISSION This part replaces 506827202. Price: $69.99 |
| 11 |
578776801 |
CONNECTOR, BALL JOINT This part replaces 506557301. Price: $9.99 |
| 12 |
732211401 |
LOCKNUT M5 Price: $2.99 |
| 13 |
731231401 |
NUT Price: $1.99 |
| 14 |
522430801 |
BRACKET Price: $5.99 |
| 15 |
725236461 |
SCREW Price: $2.99 |
| 16 |
738210204 |
BALL BEARING 6002-2RS1 Price: $7.99 |
| 17 |
535459901 |
ROLLER This part replaces 535480201. Price: $15.99 |
| 18 |
535459601 |
PLATE This part replaces 535480601. Price: $6.99 |
| 19 |
535459501 |
SPRING This part replaces 535480701. Price: $7.99 |
| 21 |
506954101 |
SUPPORT This part replaces 535480901. Price: $5.99 |
| 22 |
506804101 |
PLATE This part replaces 535481001. Price: $5.99 |
| 23 |
586966401 |
PEDAL RUBBER This part replaces 535478801. Price: $14.99 |
| 24 |
586966402 |
PEDAL RUBBER L = 102MM This part replaces 535478802. Price: $14.99 |
