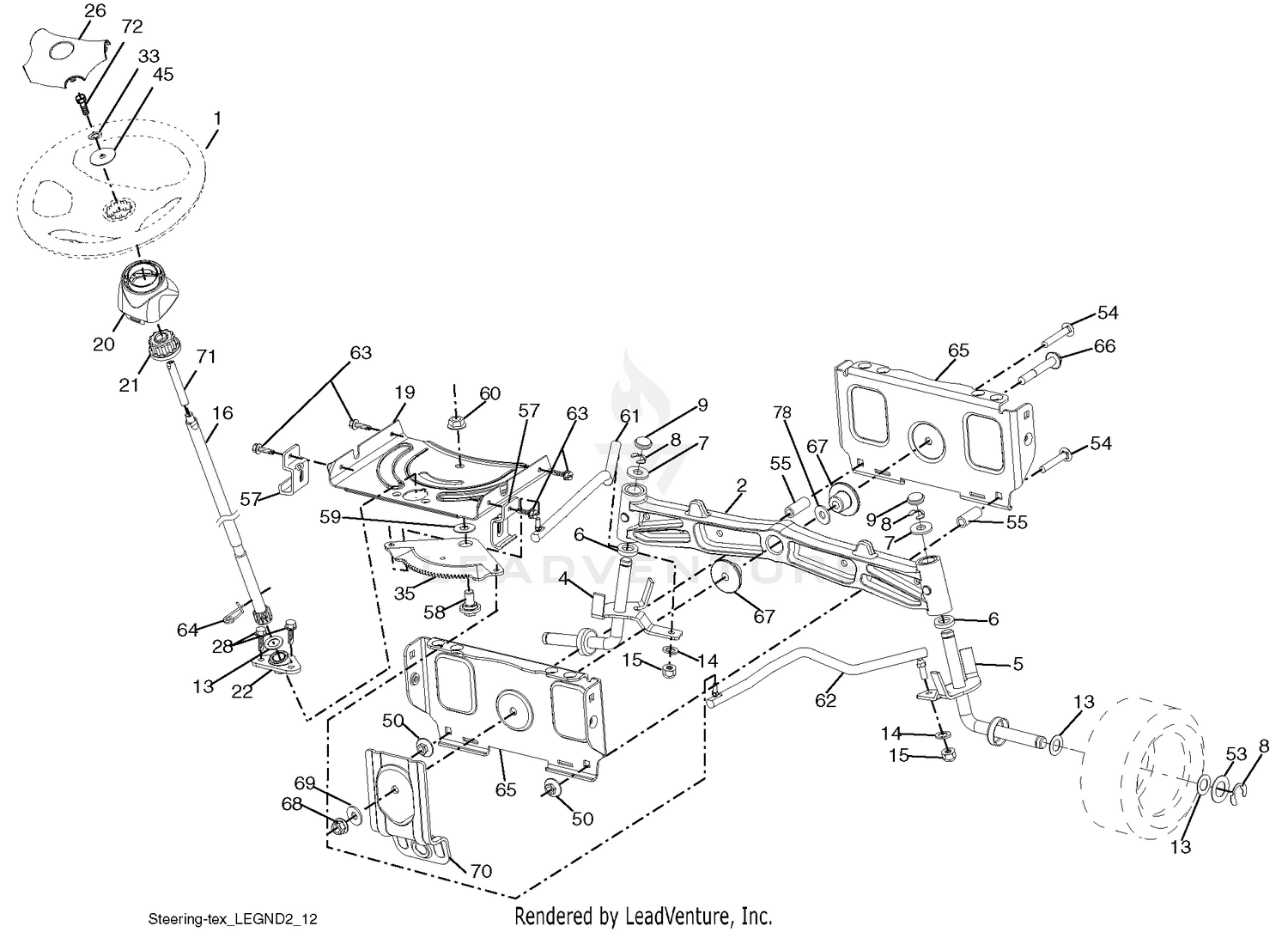

| Ref | Part Number | Description |
|---|
| 1 |
186093X428 |
Wheel, Steering Price: Call Us |
| 1 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 2 |
184706 |
Axle Asm., Front Price: Call Us |
| 2 |
93-8469 |
Accelerator Pedal Price: Call Us |
| 3 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 4 |
32128-20 |
NUT-HF Price: $0.99 |
| 4 |
403087 |
Spindle Asm., LH Price: Call Us |
| 5 |
3272-1 |
PIN-COTTER Price: $0.25 |
| 5 |
403088 |
Spindle Asm., RH Price: Call Us |
| 6 |
283-66 |
PIN-CLEVIS Price: $3.05 |
| 6 |
6266H |
Bearing, Race Thrust Harden Price: Call Us |
| 7 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 7 |
282-28 |
CLEVIS-ADJUSTABLE Price: $58.02 |
| 8 |
12000029 |
Ring, Clip #T5304-75 Price: Call Us |
| 8 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 9 |
121232X |
Cap, Spindle Price: Call Us |
| 9 |
99-8090 |
MAGNET ASM Price: $290.99 |
| 10 |
100-8422-0P |
BRACKET-PEDAL, WELDED This part replaces 100-8422. Price: $63.76 |
| 11 |
7-3900 |
PAD-BRAKE Price: $27.35 |
| 12 |
32128-21 |
NUT-HF Price: $0.39 |
| 13 |
100-8554 |
PIN-PIVOT Price: $48.79 |
| 13 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 14 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 14 |
67-1450 |
SPRING-IDLER Price: $23.99 |
| 15 |
100-8367-03 |
ACCELERATOR-LEVER This part replaces 100-8367. Price: $92.66 |
| 15 |
73540600 |
Nut, Crown Lock 3/8-24 unf Price: Call Us |
| 16 |
32153-3 |
NUT-HEX, SIDE DEFORM Price: $5.59 |
| 16 |
408220 |
Shaft Steering Price: Call Us |
| 17 |
100-8553-03 |
BRAKE-LEVER This part replaces 100-8553. Price: $232.79 |
| 18 |
256-257 |
BUSHING-NYLINER Price: $3.19 |
| 19 |
194729 |
Plate Steering Price: Call Us |
| 19 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 20 |
198375X428 |
Boot, Steering Price: Call Us |
| 20 |
283-2 |
PIN-CLEVIS Price: $12.99 |
| 21 |
186737 |
Adapter, Wheel Steering Price: Call Us |
| 21 |
94-3800 |
MASTER CYLINDER ASM Price: $270.15 |
| 22 |
194845 |
Bushing, Strg. Blk. Price: Call Us |
| 22 |
2412-134 |
CLAMP-R Price: $5.79 |
| 23 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 24 |
3217-26 |
NUT-HEX Price: $0.25 |
| 25 |
32128-33 |
NUT-HF Price: $0.25 |
| 26 |
186095X428 |
Insert, Wheel Steering Price: Call Us |
| 26 |
3219-14 |
NUT-HEX Price: $0.25 |
| 27 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 28 |
17000612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 28 |
3290-134 |
SCREW Price: $0.27 |
| 29 |
2412-134 |
CLAMP-R Price: $5.79 |
| 30 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 31 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 32 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 33 |
10040500 |
Washer Lock 5/16 Price: Call Us |
| 33 |
3274-81 |
SCREW-HSH Price: $0.74 |
| 34 |
100-8560 |
BRACKET-THROTTLE Price: $12.70 |
| 35 |
194732 |
Gear, Sector Plate Price: Call Us |
| 35 |
3217-26 |
NUT-HEX Price: $0.25 |
| 36 |
100-8561 |
PLATE-SPACER Price: $15.04 |
| 37 |
100-8383 |
CABLE-ACCELERATOR Price: $193.63 |
| 38 |
1-513152 |
SWITCH-CLOSED, NORMALLY This part replaces 92-0305. Price: $10.93 |
| 39 |
104-8791-03 |
PLATE-PEDAL, STOP This part replaces 104-8791. Price: $22.48 |
| 45 |
19113812 |
Washer 11/32 x 2-3/8 x 12 Ga. Price: Call Us |
| 50 |
73900600 |
Nut Lock Flg. 3/8-16 unc Price: Call Us |
| 53 |
188967 |
Washer Hardened .793 x 1.637 x .060 Price: Call Us |
| 54 |
74760636 |
Bolt Hex HS 3/8-16 unc x 2-1/4 Price: Call Us |
| 55 |
197636 |
Spacer Brace Axle Price: Call Us |
| 57 |
407465 |
Bracket Upstop Price: Call Us |
| 58 |
194747 |
Bolt Shoulder Sector Pivot CFM Price: Call Us |
| 59 |
194748 |
Washer Thrust Sector Steering Price: Call Us |
| 60 |
73971000 |
Nut Flange Lock 5/8-11 Price: Call Us |
| 61 |
194740 |
Draglink LH Price: Call Us |
| 62 |
194741 |
Draglink, RH Price: Call Us |
| 63 |
17000512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 64 |
199849 |
Retainer Clip Spring Steering Price: Call Us |
| 65 |
194734 |
Brace Axle Front Price: Call Us |
| 66 |
71020748 |
Bolt Hex Fghd. 7/16-14 x 3 Serr. Price: Call Us |
| 67 |
194737 |
Bushing PM Front Axle Price: Call Us |
| 68 |
73900700 |
Nut Lock Flange 7/16-14 Gr. 5 Price: Call Us |
| 69 |
199162 |
Washer 1.5 x .505 x .118 Price: Call Us |
| 70 |
196197 |
Bracket Deck Susp. Front Price: Call Us |
| 71 |
196075 |
Shaft Ext. Steering Price: Call Us |
| 72 |
74780572 |
Bolt 5/16-18 x 4.5 Gr. 5 Price: Call Us |
