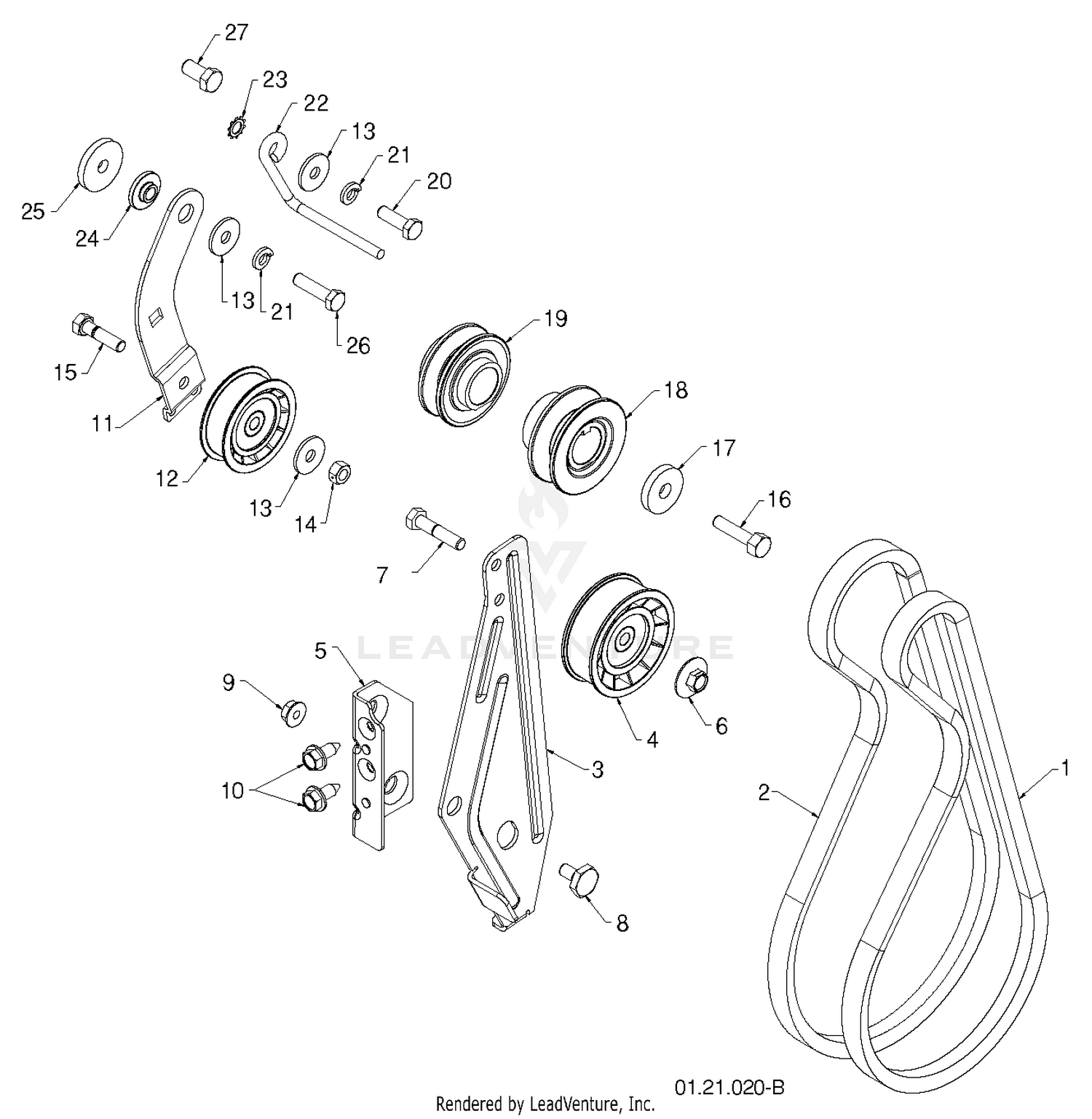

| Ref | Part Number | Description |
|---|
| 1 |
32151-41 |
RING-SNAP Price: $0.41 |
| 1 |
532419888 |
V-BELT.IMPELLER Price: $49.99 |
| 2 |
532427304 |
TRACTION BELT Price: $17.99 |
| 2 |
92-8863 |
REPAIR KIT This part replaces 92-8864. Price: $53.91 |
| 3 |
353-590 |
SPACER Price: $1.09 |
| 3 |
584232402 |
ARM.IDLER BRAKE.CLEAR.ZINC This part replaces 532429271. Price: $12.99 |
| 4 |
594095301 |
Pulleys This part replaces 532180523. Price: $9.99 |
| 4 |
93-3614 |
COVER ASM Price: $222.48 |
| 5 |
354-46 |
RING-SEAL Price: $16.74 |
| 5 |
532423990 |
RP.BRACKET.IDLER.PIVOT.BLACK This part replaces 532429270. Price: $4.99 |
| 6 |
104-7712 |
LOAD PLATE ASM Price: $229.38 |
| 6 |
585802801 |
NUT.HEX.FL 5/16-18 TOP LCK BLK This part replaces 532426589. Price: $4.99 |
| 7 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 7 |
93-3615 |
DRIVE SHAFT AND GEAR ASM Price: $436.97 |
| 8 |
532424297 |
BOLT.SHOULDER.1/2X12 Price: $3.99 |
| 8 |
93-3616 |
IDLER SHAFT AND GEAR ASM Price: $273.11 |
| 9 |
354-50 |
SCREW-HSH Price: $3.60 |
| 9 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 10 |
354-51 |
WASHER Price: $0.47 |
| 10 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 11 |
353-599 |
PIN-DOWEL Price: $2.65 |
| 11 |
532427577 |
ARM.ASM.TRACTION.IDLER This part replaces 532427576. Price: $17.99 |
| 12 |
532180522 |
PULLEY.W/SPACER.2.25 Price: $22.99 |
| 12 |
92-8795 |
BODY ASM Price: $497.61 |
| 13 |
532059289 |
STEEL WASHER Price: $3.99 |
| 13 |
92-8796 |
DISCONTINUED Price: Call Us |
| 14 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 15 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 16 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 17 |
819132005 |
WASHER.400X1.25X5. Price: $5.99 |
| 18 |
532425934 |
PULLEY ENG IMPELLER Price: $29.99 |
| 19 |
532425933 |
PULLEY.ASM.ENG.TRACTION.1.00 Price: $22.99 |
| 20 |
874610516 |
SCREW Price: $3.99 |
| 21 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 22 |
532155452 |
BELT.GUIDE.RH Price: $4.99 |
| 23 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 811050500. Price: $2.99 |
| 24 |
587343701 |
BUSHING.BRAKE.ARM This part replaces 532175331. Price: $5.99 |
| 25 |
819112206 |
WASHER.FLAT.34X1.38X22 Price: $4.99 |
| 26 |
874610520 |
CAPSCREW.HEXHD.5/16X1.25. Price: $7.99 |
