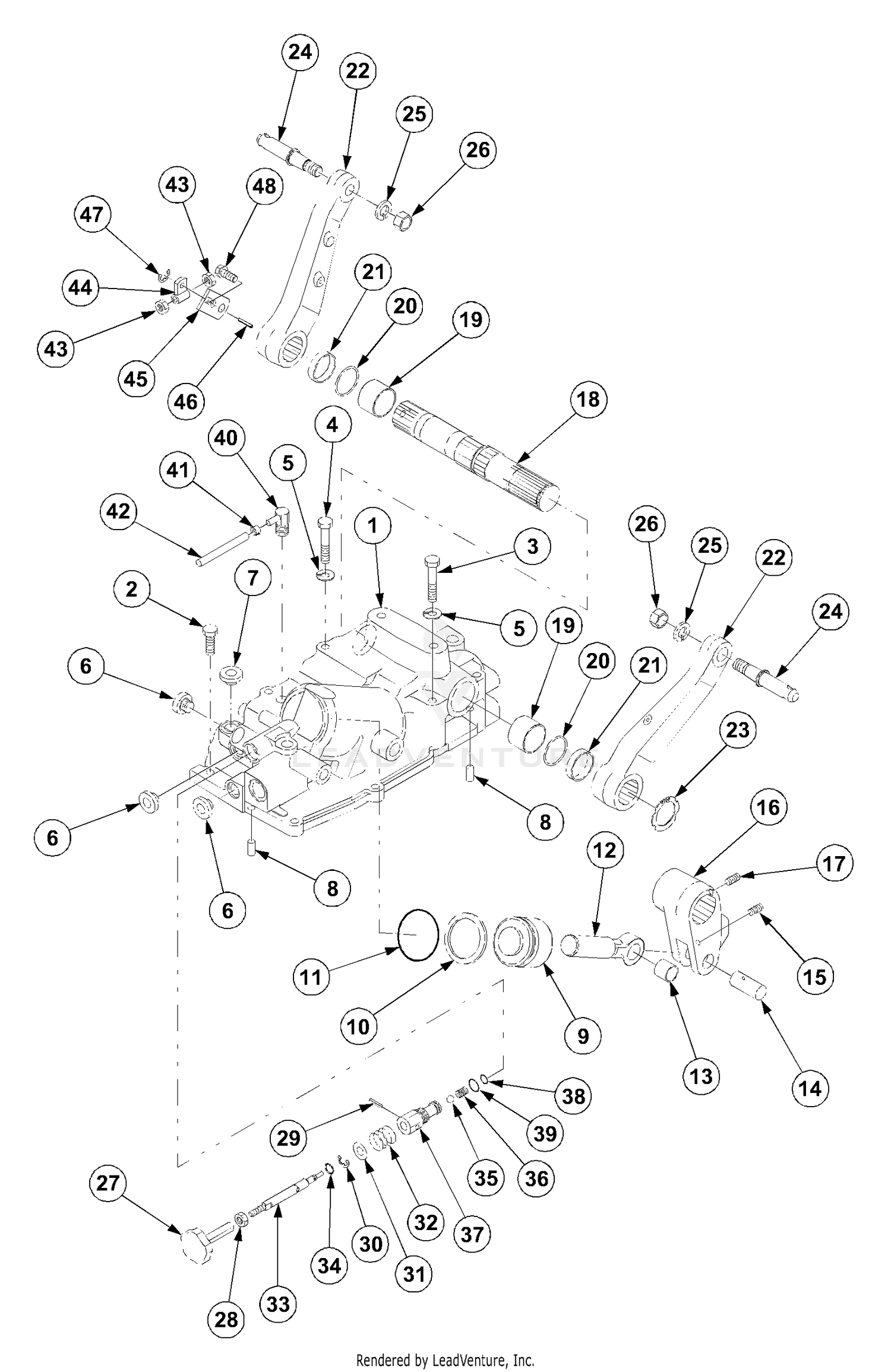

Hydraulic Lift (Part 1)
Parts (74)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 76-4950 | NUT-FLANGE Price: $12.75 |
| 1 | MA-19572401AG0 | HOUSING-HYD LIFT Not Available Price: |
| 2 | 76-4940 | PULLEY-PUMP Price: $196.38 |
| 2 | MA-F1540110040 | BOLT W/WASHER Not Available Price: |
| 3 | 94-3220 | DISCONTINUED Price: Call Us |
| 3 | MA-A0540110110 | BOLT Not Available Price: |
| 4 | 94-3225 | SCREW-HH Price: $2.10 |
| 4 | MA-A0540110130 | BOLT Not Available Price: |
| 5 | 76-4930 | WASHER Price: $0.93 |
| 5 | MA-A3600101002 | WASHER,SPRING Not Available Price: |
| 6 | 94-3165 | NUT-HEX Price: $2.34 |
| 6 | MA-HA430102000 | PLUG-PORT HYD Not Available Price: |
| 7 | 74-8610 | PIN-SPRING Price: $2.73 |
| 7 | MA-HA430103000 | PLUG-PORT Not Available Price: |
| 8 | 74-8630 | BUSHING-FLANGE Price: $6.93 |
| 8 | MA-05401010020 | PIN Not Available Price: |
| 9 | 94-3224 | WASHER-PLATE Price: $0.57 |
| 9 | MA-19562404000 | PISTON-ROC Not Available Price: |
| 10 | 94-3164 | WASHER-SPRING Price: $1.20 |
| 10 | MA-08320100650 | RING HYD Not Available Price: |
| 11 | 94-3221 | SCREW-HH Price: $9.64 |
| 11 | MA-08300100650 | O-RING HYD Not Available Price: |
| 12 | 74-8650 | PACER Price: $2.36 |
| 12 | MA-19562405000 | ROD-PISTON Not Available Price: |
| 13 | 74-8670 | FUEL INLET ASM Price: $66.08 |
| 13 | MA-07972022200 | BUSHING Not Available Price: |
| 14 | 74-8680 | GASKET Price: $5.51 |
| 14 | MA-19632418000 | PIN Not Available Price: |
| 15 | 48-7880 | NUT-HEX This part replaces 94-3251. Price: $0.25 |
| 15 | MA-HA130401000 | SCREW Not Available Price: |
| 16 | 3255-10 | WASHER-LOCK / EXT This part replaces 74-8710. Price: $0.25 |
| 16 | MA-19562406000 | ARM-POWER Not Available Price: |
| 17 | 98-8806 | SOLENOID VALVE This part replaces 93-5856. Price: $251.17 |
| 17 | MA-HA130401000 | SCREW Not Available Price: |
| 18 | 94-3274 | O-RING Price: $4.19 |
| 18 | MA-19562407000 | SHAFT-ROCK Not Available Price: |
| 19 | 94-3219 | DISCONTINUED Price: Call Us |
| 19 | MA-07961040400 | BUSHING HYD Not Available Price: |
| 20 | 94-3222 | KEY Price: $5.03 |
| 20 | MA-08300120400 | O-RING HYD Not Available Price: |
| 21 | 74-8870 | DISCONTINUED Price: Call Us |
| 21 | MA-10212421000 | SLEEVE-ROCKSHAFT Not Available Price: |
| 22 | 94-3249 | TUBE-OUTLET Price: $52.36 |
| 22 | MA-19562408AG0 | ARM-LIFT ROCK Not Available Price: |
| 23 | 94-3250 | SCREW Price: $78.40 |
| 23 | MA-07400104001 | C-Ring Price: Call Us |
| 24 | 94-3161 | DISCONTINUED Price: Call Us |
| 24 | MA-10442409000 | PIN-LIFT ARM Not Available Price: |
| 25 | 94-3223 | SCREW-HH Price: $11.01 |
| 25 | MA-A3600101602 | WASHER,SPRING Not Available Price: |
| 26 | 76-4910 | STUD Price: $1.24 |
| 26 | MA-A3030116002 | NUT Not Available Price: |
| 27 | 94-9969 | SCREW-CONNECTION Price: $16.10 |
| 27 | MA-10322427000 | KNOB-HYD LIFT Not Available Price: |
| 28 | MA-A3010108002 | NUT Not Available Price: |
| 29 | MA-05500005016 | SPRING PIN HYD Not Available Price: |
| 30 | MA-07420001000 | SNAP RING Not Available This part replaces MA-07420101000. Price: |
| 31 | MA-03500151226 | WASHER Not Available Price: |
| 32 | MA-534A1407000 | SPRING-DROP RATE Not Available Price: |
| 33 | MA-10442411000 | SCREW-FLOW CONTROL Not Available Price: |
| 34 | MA-08301100050 | O-RING HYD Not Available Price: |
| 35 | MA-08000001200 | DETENT BALL Not Available Price: |
| 36 | MA-19611906000 | SPRING-DETENT MFD Not Available Price: |
| 37 | MA-10442413000 | SLEEVE-FLO Not Available Price: |
| 38 | MA-08301100140 | O-RING Not Available Price: |
| 39 | MA-08301100200 | O-RING Not Available Price: |
| 40 | MA-10252425000 | BREATHER Not Available Price: |
| 41 | MA-00504110005 | CLAMP Not Available Price: |
| 42 | MA-09804071003 | PIPE-BREATHER HYD Not Available Price: |
| 43 | MA-A3010108002 | NUT Not Available Price: |
| 44 | MA-10442426000 | JOINT-ADJU Not Available Price: |
| 45 | MA-10442449000 | PLATE-ADJU Not Available Price: |
| 46 | MA-10382476000 | SPRING PIN Not Available Price: |
| 47 | MA-07420100600 | RING, SNAP Not Available Price: |
