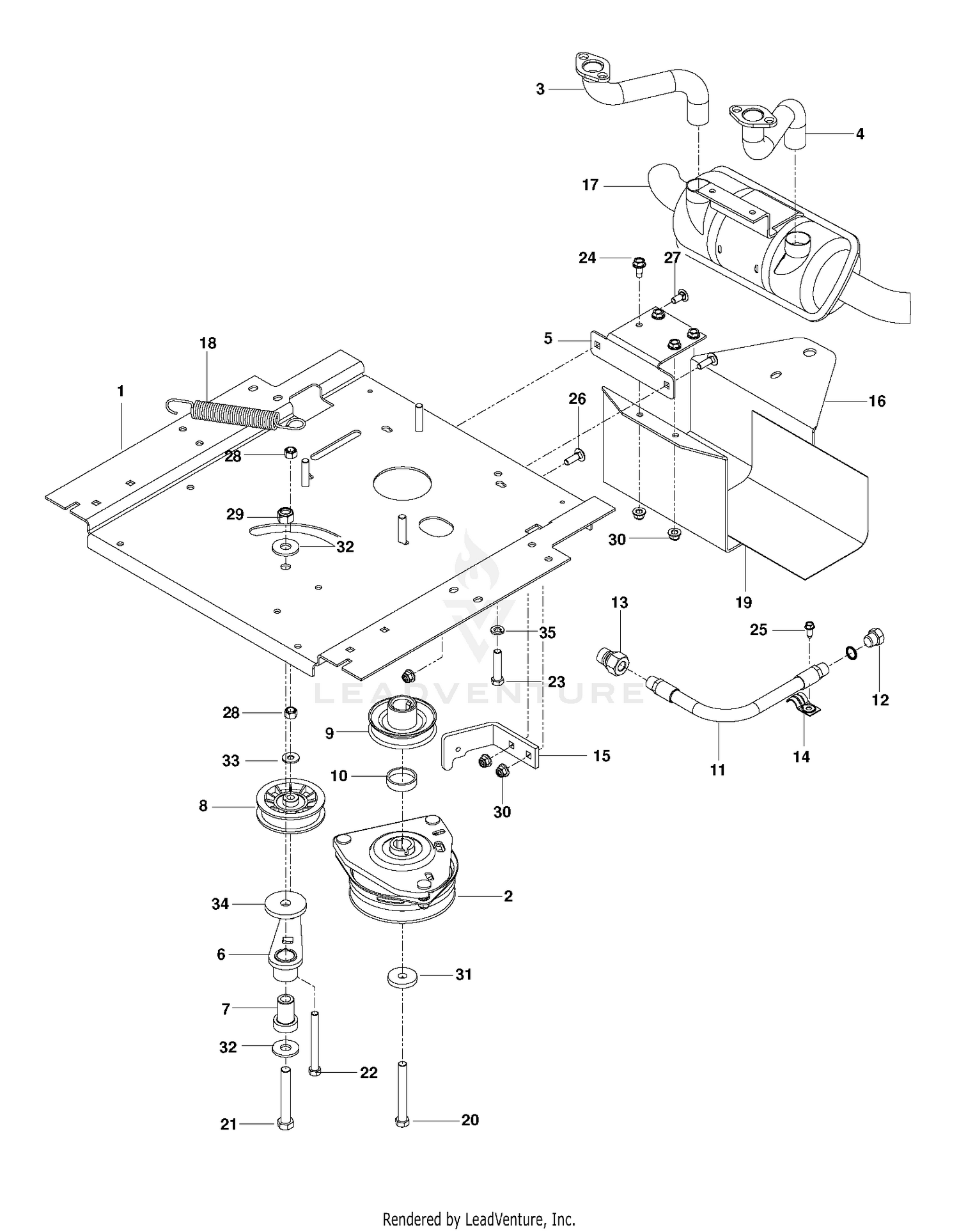

| Ref | Part Number | Description |
|---|
| 1 |
532448161 |
ENGINE PLATE RZ Price: $54.99 |
| 3 |
581726501 |
EXHAUST PIPE ASM DUAL KAW RT Price: $19.99 |
| 4 |
581726401 |
EXHAUST PIPE ASM DYAL KAW LT Price: $22.99 |
| 5 |
581886702 |
BRACKET MUFFLER MS431BLK This part replaces 510260402. Price: $19.99 |
| 6 |
583593901 |
ARM.IDLER This part replaces 532448145. Price: $11.99 |
| 7 |
539101231 |
IDLER SPINDLE Price: $11.99 |
| 8 |
531350601 |
PULLEY IDLER, BACKSIDE 3 INCH This part replaces 539110311. Price: $19.99 |
| 9 |
587537401 |
PULLEY.ENGINE This part replaces 539114530. Price: $22.99 |
| 10 |
577094601 |
SPACER, HUB PULLEY Price: $6.99 |
| 11 |
584825501 |
HOSE.ASSEMBLY.OIL.DRAIN Price: $27.99 |
| 12 |
585807101 |
PLUG OIL DRAIN Price: $2.99 |
| 13 |
522599003 |
ADAPTER This part replaces 522599001. Price: $8.99 |
| 14 |
539101363 |
CLAMP Price: $2.99 |
| 15 |
587633302 |
CLUTCH.STOP.OGURA LCC.BLACK This part replaces 522442506. Price: $7.99 |
| 16 |
587451202 |
GUARD.MUFFLER.WO.TOW.HITCHX431 This part replaces 584989802. Price: $44.99 |
| 17 |
581726301 |
MUFFLER OUTLET DUAL RZ Price: $99.99 |
| 18 |
547878302 |
SPRING BELT TENSIONER BLACK This part replaces 532196105. Price: $5.99 |
| 19 |
539132859 |
HEAT SHIELD Price: $22.99 |
| 20 |
581332806 |
Bolts This part replaces 581332803. Price: $6.99 |
| 21 |
596435301 |
Bolts This part replaces 874780852. Price: $3.99 |
| 22 |
596433901 |
Screws This part replaces 874520656. Price: $2.99 |
| 23 |
596918101 |
Bolts This part replaces 539976949. Price: $2.99 |
| 24 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 25 |
539990362 |
SCREW 1/4 X 5/8 Price: $3.99 |
| 26 |
595901501 |
Bolts This part replaces 872140508. Price: $3.99 |
| 27 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 28 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 29 |
596135601 |
GSPW NUTS This part replaces 873800800. Price: $3.99 |
| 30 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 31 |
532126197 |
WASHER Price: $6.99 |
| 32 |
595316401 |
Washers This part replaces 819182212. Price: $2.99 |
| 33 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 34 |
539112670 |
HEAVY WASHER Price: $3.99 |
| 35 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
