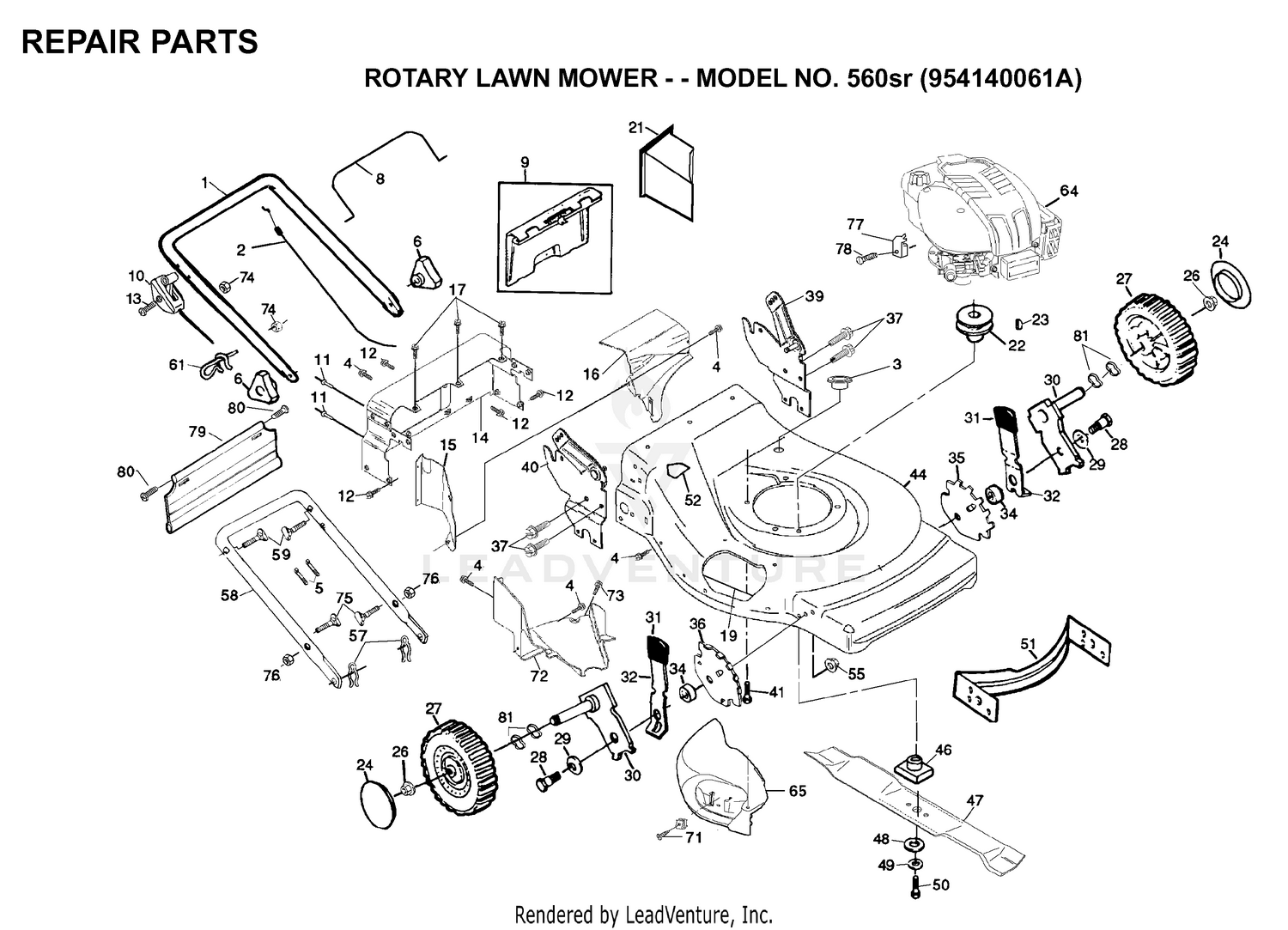

| Ref | Part Number | Description |
|---|
| 2 |
532149771 |
CABLE-ZONE Price: $8.99 |
| 3 |
532145073 |
PROTECTOR Price: $119.99 |
| 4 |
532150050 |
SCREW.HXTAP.10-24 Price: $2.99 |
| 5 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 6 |
532087692 |
KNOB Price: $8.99 |
| 8 |
532145641 |
CONTROL BAR Price: $4.77 |
| 10 |
532700644 |
THROTTLE CONTROL Price: $14.99 |
| 11 |
532128415 |
RIVET BLIND Price: $3.99 |
| 12 |
532054583 |
SCREW Price: $4.99 |
| 13 |
532059935 |
SCREW 1/4-20X1.75 Price: $2.38 |
| 15 |
532145594 |
SIDE BAFFLE This part replaces 532153827. Price: $2.42 |
| 16 |
532145066 |
DISCHARGE BAFFLE This part replaces 532153824. Price: $11.99 |
| 17 |
532149027 |
SCREW Price: $1.99 |
| 21 |
532150099 |
MULCHER PLUG Price: $9.94 |
| 22 |
532084596 |
ENGINE.PULLEY.FWG Price: $27.99 |
| 23 |
532087677 |
HI PRO KEY PM WSL Price: $3.99 |
| 24 |
532157008 |
HUBCAP.8".GREY Price: $3.99 |
| 26 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532083923. Price: $3.99 |
| 27 |
532750550 |
WHEEL.8X2.PR.LP.RAD.GREY Price: $27.99 |
| 28 |
532174719 |
BOLT SHOULDER 3/8 -16X1 This part replaces 532142748. Price: $7.99 |
| 29 |
532062335 |
WASHER.BELLEVILLE (3 2 LB) Price: $7.99 |
| 30 |
532145937 |
AXLE ARM This part replaces 532151254. Price: $3.99 |
| 31 |
532701037 |
SELECTOR KNOB Price: $4.99 |
| 32 |
532125066 |
SELECTOR SPRING Price: $4.99 |
| 34 |
532401629 |
SPACER.HEIGHT.ADJUSTER This part replaces 532146630. Price: $3.99 |
| 35 |
532800368 |
WHL ADJ BRKT LF/RR Price: $5.99 |
| 37 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 41 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 46 |
532851514 |
BLADE ADAPTOR Price: $7.99 |
| 47 |
532406707 |
BLADE.22.MULCH.PRECISION This part replaces 532141443. Price: $22.99 |
| 48 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 49 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 50 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 51 |
532170031 |
FRONT BAFFLE KIT This part replaces 532138871. Price: $22.99 |
| 52 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532107339. Price: $3.99 |
| 55 |
596322601 |
Nuts This part replaces 532751592. Price: $2.99 |
| 57 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 59 |
532183724 |
KIT.KNOB.HANDLE.SERVICE This part replaces 532131959. Price: $9.99 |
| 61 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532132001. Price: $7.99 |
| 71 |
532141841 |
SCREW.PAN.HEAD.#10 Price: $3.99 |
| 72 |
532145062 |
BAFFLE BELT COVER Price: $11.99 |
| 73 |
817411312 |
SCREW.HX.13X.750 Price: $4.99 |
| 74 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
| 76 |
596040501 |
Hardware This part replaces 873990500. Price: $2.99 |
| 77 |
532111190 |
CABLE CLAMP(ENGINE) Price: $4.99 |
| 78 |
532083816 |
SCREW.HEX.HEAD.WASHER.10-16 Price: $4.99 |
| 79 |
532413160 |
SKIRT.REAR.22RD/SD.FO/VE This part replaces 532140540. Price: $11.99 |
| 80 |
532088652 |
HINGE SCREW Price: $3.99 |
| 81 |
532428450 |
KIT.O-RING/WASHER This part replaces 532057143. Price: $3.99 |
