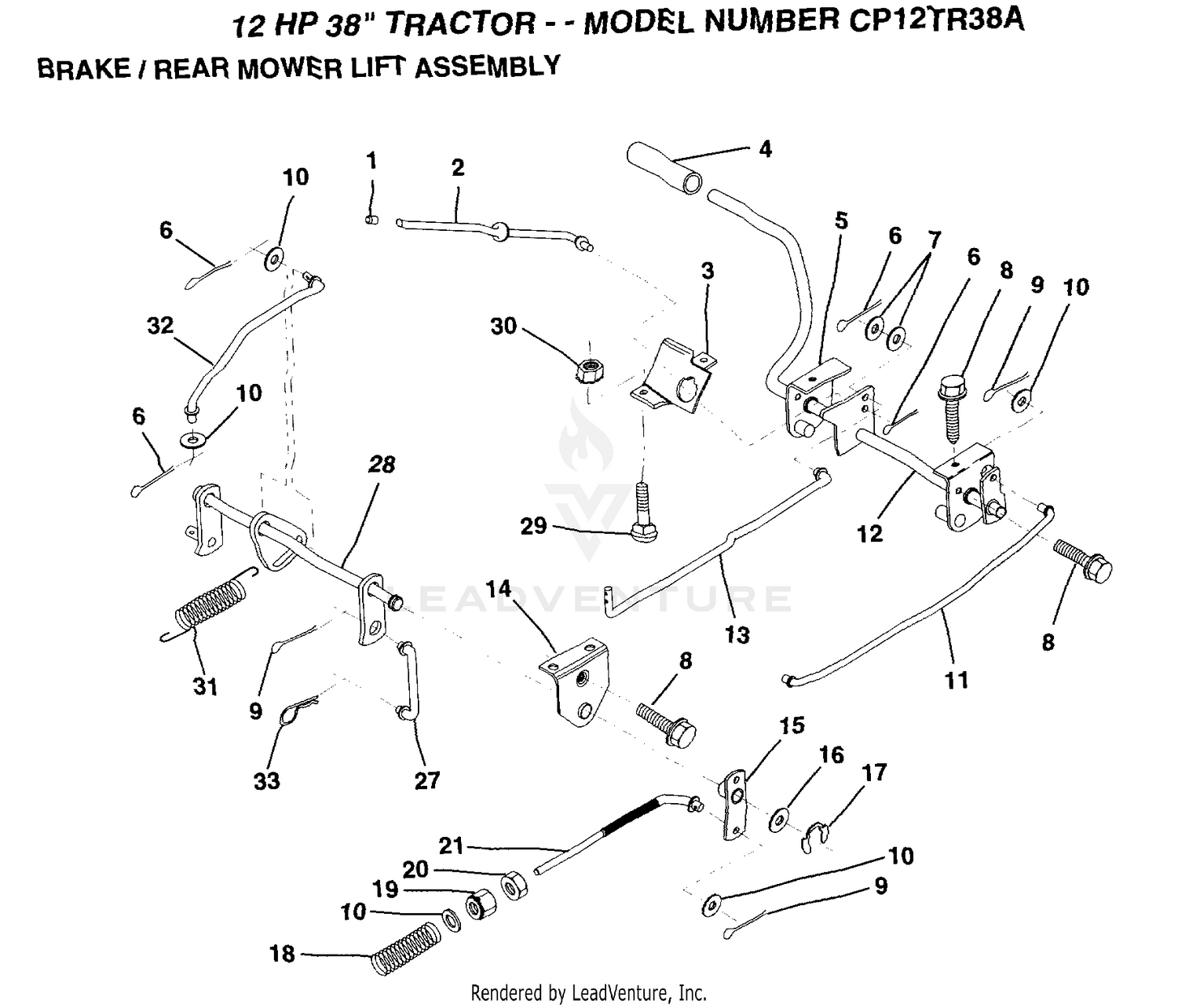

| Ref | Part Number | Description |
|---|
| 1 |
71673 |
PLUNGER CAP T Price: Call Us |
| 4 |
8883R |
PEDAL COVER T Price: Call Us |
| 5 |
132205 |
BRK ASM CLUT LH Price: Call Us |
| 6 |
76020312 |
SUB= 3145 Price: Call Us |
| 7 |
19131016 |
WASHER Price: Call Us |
| 8 |
17490508 |
SCREW LT Price: Call Us |
| 9 |
76020412 |
COTTER PIN Price: Call Us |
| 10 |
108-1402 |
GEAR CASE ASM Price: $859.88 |
| 10 |
19131316 |
WASHER Price: Call Us |
| 12 |
139934 |
PEDAL ASM CLU/BRK Price: Call Us |
| 15 |
133332 |
PVT BRAKE ARM ASM Price: Call Us |
| 16 |
19251816 |
WASHER T Price: Call Us |
| 17 |
12000034 |
KLIP RING Price: Call Us |
| 18 |
106888X |
SPRING ROD LT Price: Call Us |
| 19 |
73350600 |
NUT Price: Call Us |
| 20 |
127-0425 |
PLUG This part replaces 98-9598. Price: $4.34 |
| 20 |
73800600 |
NUT Price: Call Us |
| 21 |
131460 |
SUB= 532131460 Price: Call Us |
| 23 |
108-3841 |
FILTER-OIL This part replaces 104-5167. Price: $10.81 |
| 27 |
136780 |
LINK LIFT REAR LR Price: Call Us |
| 28 |
140777 |
LIFT.ASM.REAR.LR Price: Call Us |
| 29 |
72110506 |
SUB= 72270506 Price: Call Us |
| 30 |
73510500 |
NUT Price: Call Us |
| 30 |
98-7487 |
PLUG Price: $3.18 |
| 31 |
133095 |
COUNTER SPRING Price: Call Us |
| 32 |
133721 |
LINK LIFT LEVER Price: Call Us |
| 50 |
98-9544 |
SPRING Price: $0.94 |
| 60 |
98-9543 |
SEAT-VALVE Price: $26.61 |
| 70 |
98-9380 |
BALL Price: $0.84 |
| 80 |
98-9540 |
OIL PUMP ROTOR ASM Price: $271.67 |
| 85 |
107-9069 |
COVER-PUMP, OIL Price: $27.77 |
| 90 |
107-9072 |
PIN-STRAIGHT Price: $0.28 |
| 100 |
107-9071 |
SCREW Price: $0.36 |
| 110 |
98-9633 |
GASKET-CASE, GEAR Price: $30.19 |
| 120 |
100-1765 |
BOLT This part replaces 107-9073. Price: $1.59 |
| 130 |
105-3797 |
BOLT Price: $1.40 |
| 140 |
98-9356 |
BOLT Price: $2.06 |
| 150 |
107-9074 |
BOLT Price: $1.43 |
| 160 |
99-3510 |
BOLT This part replaces 98-9586. Price: $0.80 |
| 170 |
105-3709 |
STUD Price: $1.13 |
| 180 |
98-7572 |
NUT Price: $0.32 |
| 190 |
98-7699 |
WASHER-SPRING Price: $0.44 |
| 200 |
119-8038 |
SEAL-OIL This part replaces 98-9482. Price: $40.16 |
| 230 |
105-3710 |
STUD Price: $1.16 |
