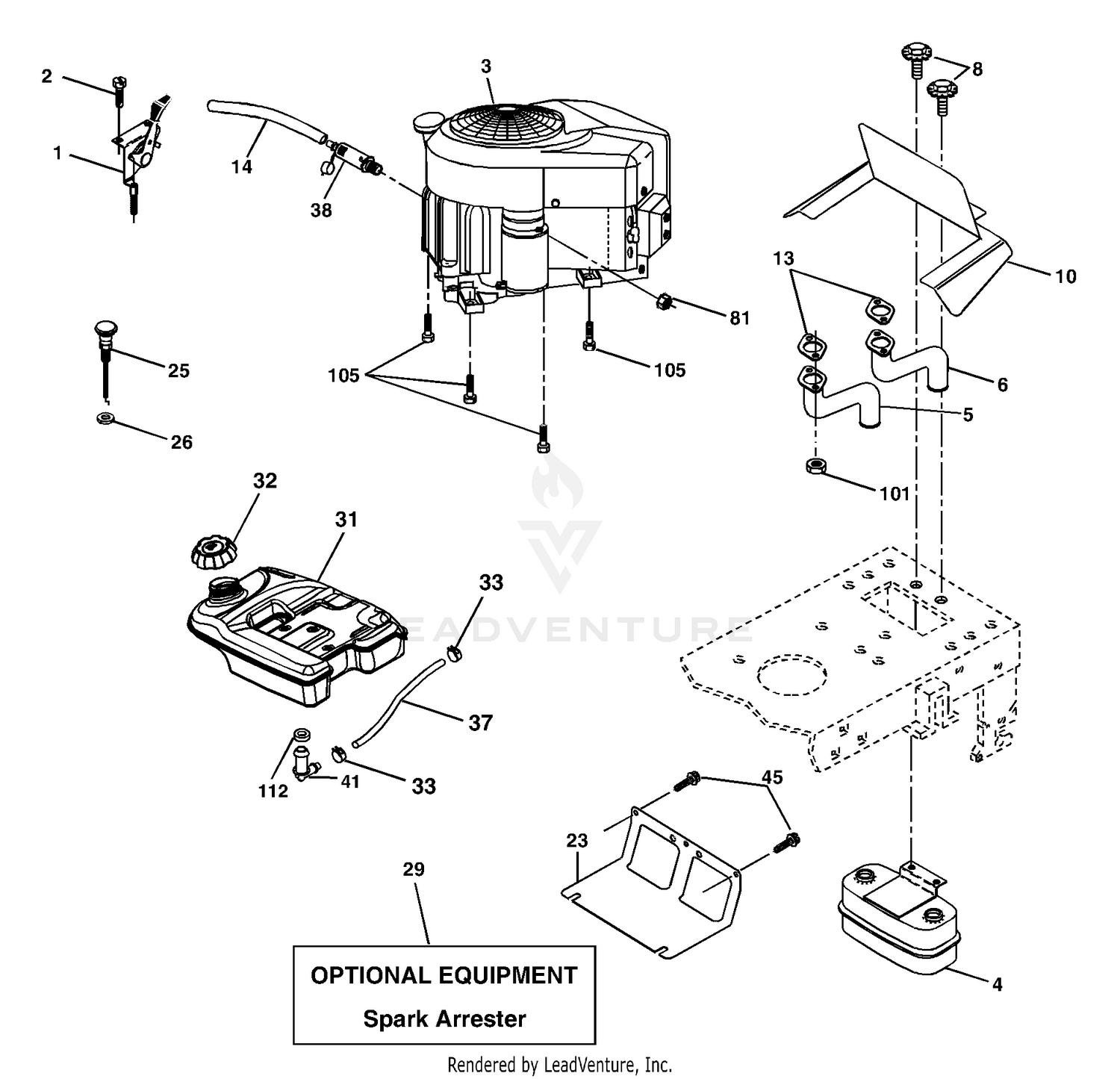

| Ref | Part Number | Description |
|---|
| 1 |
532170803 |
CONTROL, THROTTLE Price: $24.99 |
| 1 |
74-8070 |
DISCONTINUED Price: Call Us |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 2 |
74-8080 |
WASHER Price: $4.77 |
| 3 |
74-8090 |
PULLEY Price: $344.97 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 4 |
74-8100 |
GEAR-PINION Price: $58.79 |
| 5 |
532181444 |
EXHAUST TUBE LH KAWI Price: $54.99 |
| 5 |
98-3833 |
GEAR - OIL PUMP This part replaces 74-8110. Price: $26.24 |
| 6 |
532181442 |
EXHAUST TUBE RH KAWI Price: $59.99 |
| 6 |
74-8120 |
KEY-WOODRUFF Price: $3.36 |
| 7 |
74-8130 |
SCREW - HEX HD Price: $1.73 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 8 |
74-7560 |
LOCKWASHER Price: $0.67 |
| 9 |
74-8140 |
COVER Price: $137.43 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 10 |
74-8150 |
GASKET-COVER Price: $4.08 |
| 11 |
94-3148 |
SEAL This part replaces 74-8160. Price: $33.41 |
| 12 |
74-8170 |
BEARING SET (STD) Price: $208.01 |
| 13 |
74-8190 |
DISCONTINUED Price: Call Us |
| 14 |
74-8230 |
SHAFT-CRANK Price: $3,552.00 |
| 15 |
74-8240 |
DISCONTINUED Price: Call Us |
| 16 |
74-8250 |
PIN Price: $0.97 |
| 17 |
74-8260 |
FLYWHEEL Price: $1,023.57 |
| 18 |
74-8270 |
DISCONTINUED Price: Call Us |
| 19 |
74-8280 |
SCREW-HH Price: $4.63 |
| 20 |
74-8290 |
DISCONTINUED Price: Call Us |
| 21 |
74-8300 |
CLIP-PIN, PISTON Price: $2.96 |
| 22 |
74-8310 |
PIN-PISTON Price: $24.33 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 23 |
74-8320 |
DISCONTINUED Price: Call Us |
| 24 |
98-9965 |
DISCONTINUED This part replaces 74-8350. Price: Call Us |
| 25 |
532190784 |
THROTTLE CONTROL This part replaces 532191694. Price: $22.99 |
| 25 |
74-8360 |
CONNECTING ROD Price: $1,118.95 |
| 26 |
74-8370 |
HEX NUT Price: $1.53 |
| 26 |
873920600 |
Nut, Keps 3/8-24 unf Price: $3.99 |
| 27 |
74-8380 |
DISCONTINUED Price: Call Us |
| 28 |
74-8400 |
BOLT-ROD, CONNECTING Price: $23.09 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 29 |
74-8420 |
PISTON SET Price: $3,551.52 |
| 29 |
74-8430 |
PISTON SET Price: $3,570.53 |
| 30 |
74-8450 |
SEE PB#671 Price: Call Us |
| 31 |
74-8490 |
SEE PB#671 Price: Call Us |
| 31 |
74-8510 |
DISCONTINUE PREC HUSKY Price: Call Us |
| 32 |
532179124 |
FUEL CAP This part replaces 532181803. Price: $29.99 |
| 32 |
74-8530 |
SEE PB#671 Price: Call Us |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044854 |
HOSE.1/4".LOW.PERM.FUEL.LN.54" This part replaces 532142158. Price: $14.99 |
| 41 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 101 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 105 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
