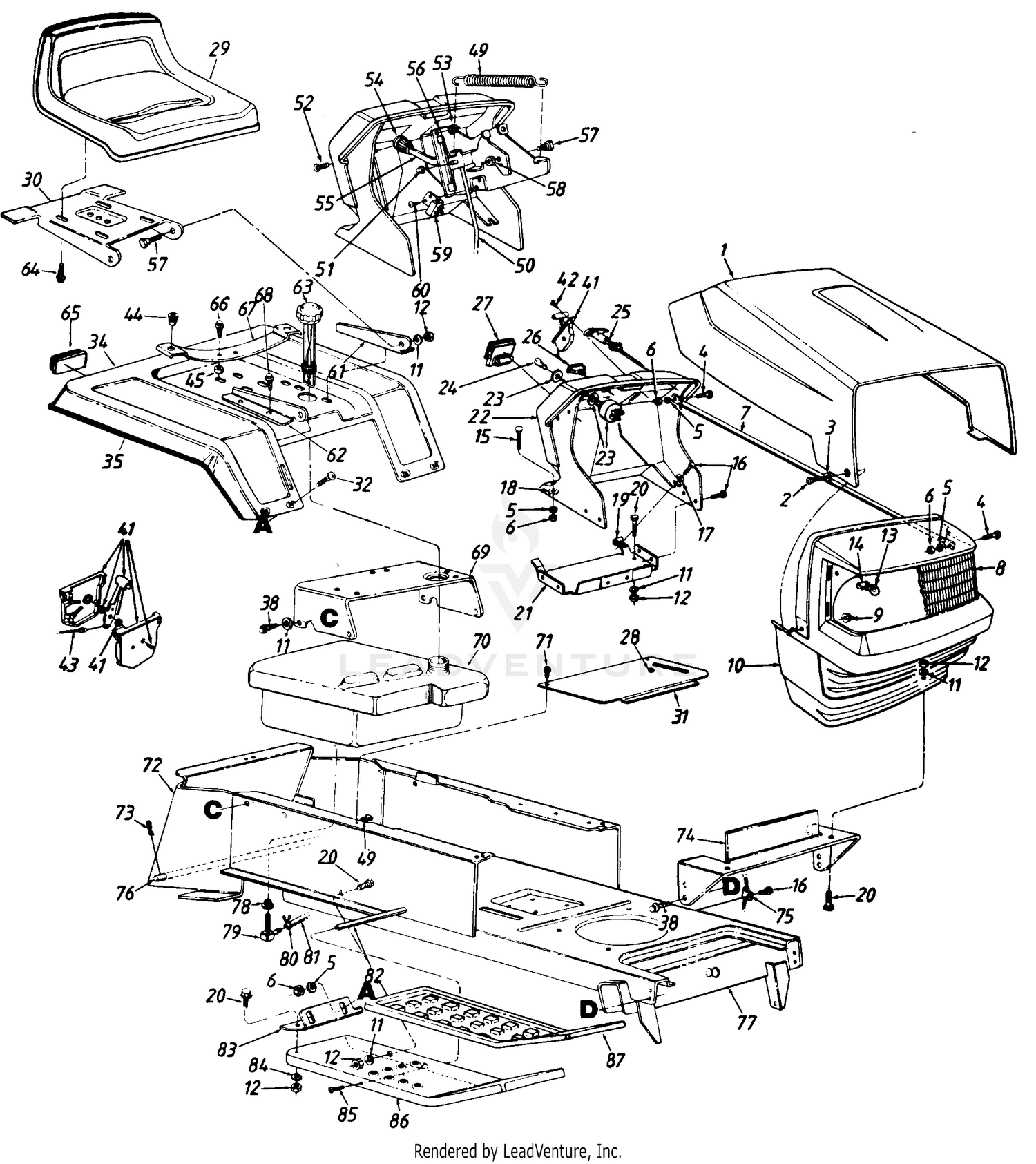

| Ref | Part Number | Description |
|---|
| 1 |
17551 |
N Hood Price: Call Us |
| 2 |
938-0952A |
Shoulder Bolt, .375 x .125 This part replaces 738-0724. Price: $6.17 |
| 3 |
936-0175 |
Spring Wash. .265 I.D. x .562 O.D. This part replaces 736-0175. Price: $3.48 |
| 4 |
710-0258 |
Hex Bolt 1/4-20 x .62" Lg. Price: $3.63 |
| 5 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 6 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 7 |
749-0813 |
GRILLE SUPPORT ROD Not Available Price: |
| 8 |
931-1099A |
Lens This part replaces 731-1099. Price: $81.56 |
| 9 |
712-0380 |
LOCK NUT 1/4 x 28 Not Available Price: |
| 10 |
931-1097G |
GRILLE-10 STYLE Not Available This part replaces 731-1097. Price: |
| 11 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 12 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 13 |
925-0963 |
Miniature Lamp 12V Socket Type This part replaces 725-0963. Price: $6.73 |
| 14 |
925-1058A |
HEADLAMP SOCKET Not Available This part replaces 725-1058A. Price: |
| 15 |
710-0932A |
SCREW 1/4-20 x 1 GR5 This part replaces 710-0932. Price: $3.66 |
| 16 |
710-0599 |
Hex (Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.) Price: $3.86 |
| 17 |
736-0173 |
Fl-Wash. .281" I.D. x .73" O.D. Price: $3.76 |
| 18 |
726-0233 |
Bolt Retainer 1/4" I.D. Price: $3.93 |
| 19 |
712-0185 |
SPEED NUT 1/4-20 Not Available Price: |
| 20 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg. Price: $3.76 |
| 21 |
17634 |
BATTERY PLATE Not Available Price: |
| 22 |
731-1094 |
DASH-W/AMP Not Available Price: |
| 23 |
925-0267B |
Ignition Switch This part replaces 725-0267. Price: $33.31 |
| 24 |
925-0201 |
Key This part replaces 725-0201. Price: $8.70 |
| 25 |
946-3022B |
Choke Control 46" Lg. This part replaces 746-3022B. Price: $34.55 |
| 26 |
925-0634 |
Light Switch This part replaces 725-0634. Price: $15.62 |
| 27 |
925-0925 |
Ammeter Not Available This part replaces 725-0925. Price: |
| 28 |
731-0405 |
BUSHING Not Available Price: |
| 29 |
757-0336 |
SEAT-W/RNF Not Available Price: |
| 30 |
783-0039A |
SEAT PIVOT BRACKET Not Available This part replaces 15607D. Price: |
| 31 |
14056 |
COVER-TRAN Not Available Price: |
| 32 |
710-05177 |
CARRIAGE BOLT 1/4-20X.50" This part replaces 710-0167. Price: $4.26 |
| 34 |
15886 |
FENDER-RR Not Available Price: |
| 35 |
731-0511-81 |
Trim Strip 81" Lg. Price: $92.23 |
| 38 |
710-0726 |
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. Price: $3.82 |
| 41 |
831-0823A |
Throttle Box Ass'y. Price: $30.59 |
| 42 |
710-0779A |
Truss Mach. AB-Tap Scr. #10 x .5" Lg. Price: $3.85 |
| 43 |
946-0634 |
Throttle Wire This part replaces 746-0634. Price: $10.24 |
| 44 |
731-0555A |
GROMMET Not Available Price: |
| 45 |
950-0706 |
SPACER-1.00 x .380 Not Available This part replaces 750-0706. Price: |
| 49 |
732-0626 |
N Ext. Spring 5.06" Lg. Price: $11.77 |
| 50 |
747-0750A |
DECK CONTROL ROD Not Available This part replaces 747-0750. Price: |
| 51 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 52 |
710-0286 |
Truss Mach. Scr. 1/4-20 x .5 Lg. Price: $3.86 |
| 53 |
712-0271 |
Hex Sems Nut 1/4-20 Thd. Price: $3.78 |
| 54 |
920-0232 |
Knob This part replaces 720-0232. Price: $9.11 |
| 55 |
17500 |
LEVER-PTO Not Available Price: |
| 56 |
17496 |
N PTO BRACKET Not Available Price: |
| 57 |
938-0155 |
Shoulder Bolt This part replaces 738-0155. Price: $6.01 |
| 58 |
712-3009 |
Hex L-Nut 5/16-18 Thd. Price: $5.99 |
| 60 |
910-0224 |
HEX SCREW AB-TAP #10-16 x 0.500 This part replaces 710-1066. Price: $3.19 |
| 61 |
15803 |
BRACKET-SE Not Available Price: |
| 62 |
15802 |
BRACKET-SE Not Available Price: |
| 63 |
751-0370 |
CAP W/GAUGE-GAS Not Available Price: |
| 64 |
710-0623 |
Hex Wash. Hd. AB-Tap Scr. 3/8 x .75" Lg. Price: $3.93 |
| 66 |
710-0817 |
Hex Tap Scr. 5/16-18 x 1.25"Lg. Price: $5.77 |
| 67 |
732-0431 |
Seat Spring Price: Call Us |
| 68 |
710-0607 |
Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .5" Lg. Price: $6.06 |
| 69 |
15849 |
CHANNEL-SE Not Available Price: |
| 70 |
751-0367 |
FUEL TANK Not Available Price: |
| 71 |
710-0351 |
Truss Mach. B-Tap Scr. #10 x .5" Lg. Price: $3.90 |
| 72 |
13813B |
HITCH PLATE Not Available Price: |
| 73 |
714-0147 |
Internal Cotter Pin Price: $4.20 |
| 74 |
15825 |
BRACKET-GR Not Available Price: |
| 75 |
726-0273 |
Battery Hose Clamp Price: $6.24 |
| 76 |
738-0482 |
HITCH ROD Not Available Price: |
| 77 |
13820D |
N Lower Frame Ass'y. Price: Call Us |
| 80 |
726-0205 |
Hose Clamp Price: $3.71 |
| 81 |
751-10349-54 |
Fuel Line 46" Lg. This part replaces 751-0535-46. Price: $47.01 |
| 82 |
738-0435 |
ROD-RUNNING BOARD Not Available Price: |
| 83 |
15846 |
BRACKET-FENDER (RH) Not Available Price: |
| 84 |
736-0242 |
Bell-Wash. .34" I.D. x 87" Price: $3.75 |
| 85 |
710-0323 |
Truss Mach. Scr. 5/16-18 x .75" Lg. Price: $4.02 |
| 86 |
16922 |
RUNNING BOARD (RH) Not Available Price: |
| 15847 |
Fender |
Brkt. L.H. Price: Call Us 15847 |
