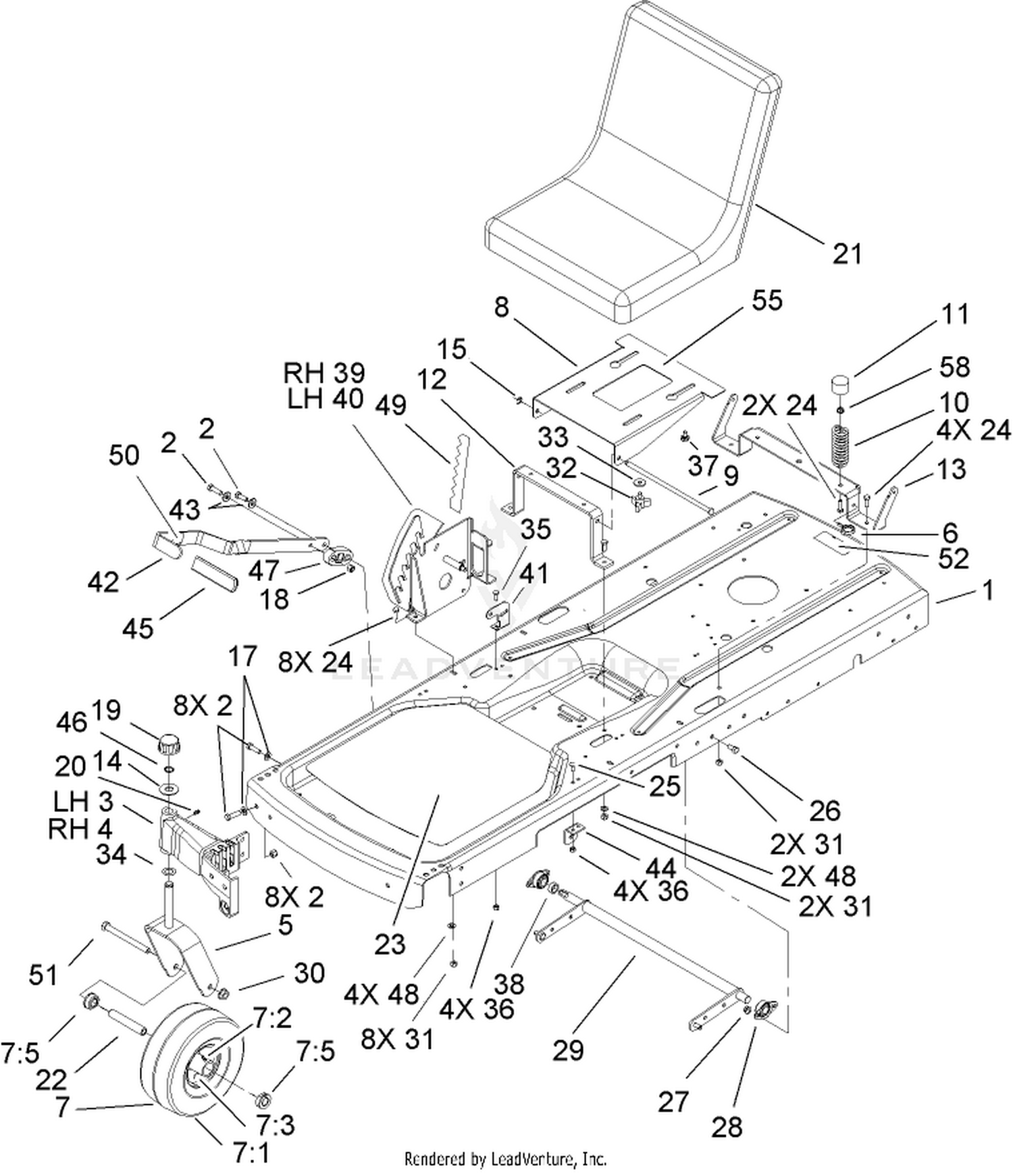

| Ref | Part Number | Description |
|---|
| 1 |
108-2325-01 |
FRAME This part replaces 107-1744-01. Price: $891.74 |
| 2 |
323-18 |
SCREW-HH Price: $0.82 |
| 3 |
105-6986-01 |
CASTER-LH Price: $277.38 |
| 4 |
105-6985-01 |
CASTER-RH Price: $277.38 |
| 5 |
110-6581-01 |
CASTER FORK ASM This part replaces 106-2196-01. Price: $66.80 |
| 6 |
105-1853 |
CLAMP-HOSE Price: $3.49 |
| 7 |
105-3471 |
FRONT WHEEL AND TIRE ASM Price: $62.92 |
| 8 |
105-6953-03 |
DISCONTINUED Price: Call Us |
| 9 |
105-6955 |
PIN-PIVOT Price: $24.89 |
| 10 |
92-7054 |
SPRING-COMPRESSION Price: $13.32 |
| 11 |
701178 |
CAP-PROTECTOR Price: $1.45 |
| 12 |
105-6954-03 |
BRACE-SEAT, FRONT Price: $18.73 |
| 13 |
108-2358-03 |
BRACE-SEAT, REAR This part replaces 106-2210-03. Price: $65.08 |
| 14 |
28-2480 |
WASHER-PLAIN Price: $3.99 |
| 15 |
105-7004 |
E-RING Price: $0.79 |
| 17 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 18 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 19 |
61-9780 |
CAP-HUB Price: $7.29 |
| 20 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 21 |
119-8829 |
SEAT-18 INCH This part replaces 105-6962. Price: $218.88 |
| 22 |
104-3667 |
BUSHING-SPANNER Price: $12.64 |
| 23 |
105-3460 |
PAD-ANTISKID Price: $58.49 |
| 24 |
322-4 |
SCREW-HH Price: $0.35 |
| 25 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 26 |
323-4 |
SCREW-HH Price: $1.02 |
| 27 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 28 |
1-633102 |
BEARING-FLANGE, SIDE Price: $17.99 |
| 29 |
105-3499-03 |
LIFT ARM ASM Price: $126.28 |
| 30 |
32128-23 |
NUT-HF Price: $1.51 |
| 31 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 32 |
92-9674 |
KNOB Price: $13.99 |
| 33 |
5-4460 |
WASHER-PIVOT Price: $6.19 |
| 34 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 35 |
321-4 |
SCREW-HH Price: $0.99 |
| 36 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 37 |
37-8770 |
BOLT-SHOULDER Price: $1.02 |
| 38 |
106-2222 |
DISCONTINUED Price: Call Us |
| 39 |
106-2158-03 |
RH PLATE ASM Price: $54.07 |
| 40 |
106-2159-03 |
LH PLATE ASM Price: $54.07 |
| 41 |
106-2180 |
BRACKET-BELLCRANK Price: $4.49 |
| 42 |
108-2317-03 |
LEVER-LIFT This part replaces 105-3435-03. Price: $39.28 |
| 43 |
98-5975 |
WASHER-BELLEVILLE Price: $3.09 |
| 44 |
105-3439 |
BRACKET-LIFT Price: $3.42 |
| 45 |
105-3450 |
GRIP-LEVER, LIFT Price: $6.25 |
| 46 |
32151-103 |
RING-RETAINING, EXT Price: $2.09 |
| 47 |
106-2211 |
BLOCK-LIFT Price: $12.68 |
| 48 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 49 |
106-2223 |
DECAL-HOC Price: $3.72 |
| 50 |
106-8743 |
DECAL-HOC Price: $1.45 |
| 51 |
325-22 |
SCREW-HH Price: $4.26 |
| 52 |
106-7043 |
DECAL-TRANSPORT Price: $5.88 |
| 55 |
106-8717 |
DECAL-SERVICE, CE Price: $4.87 |
