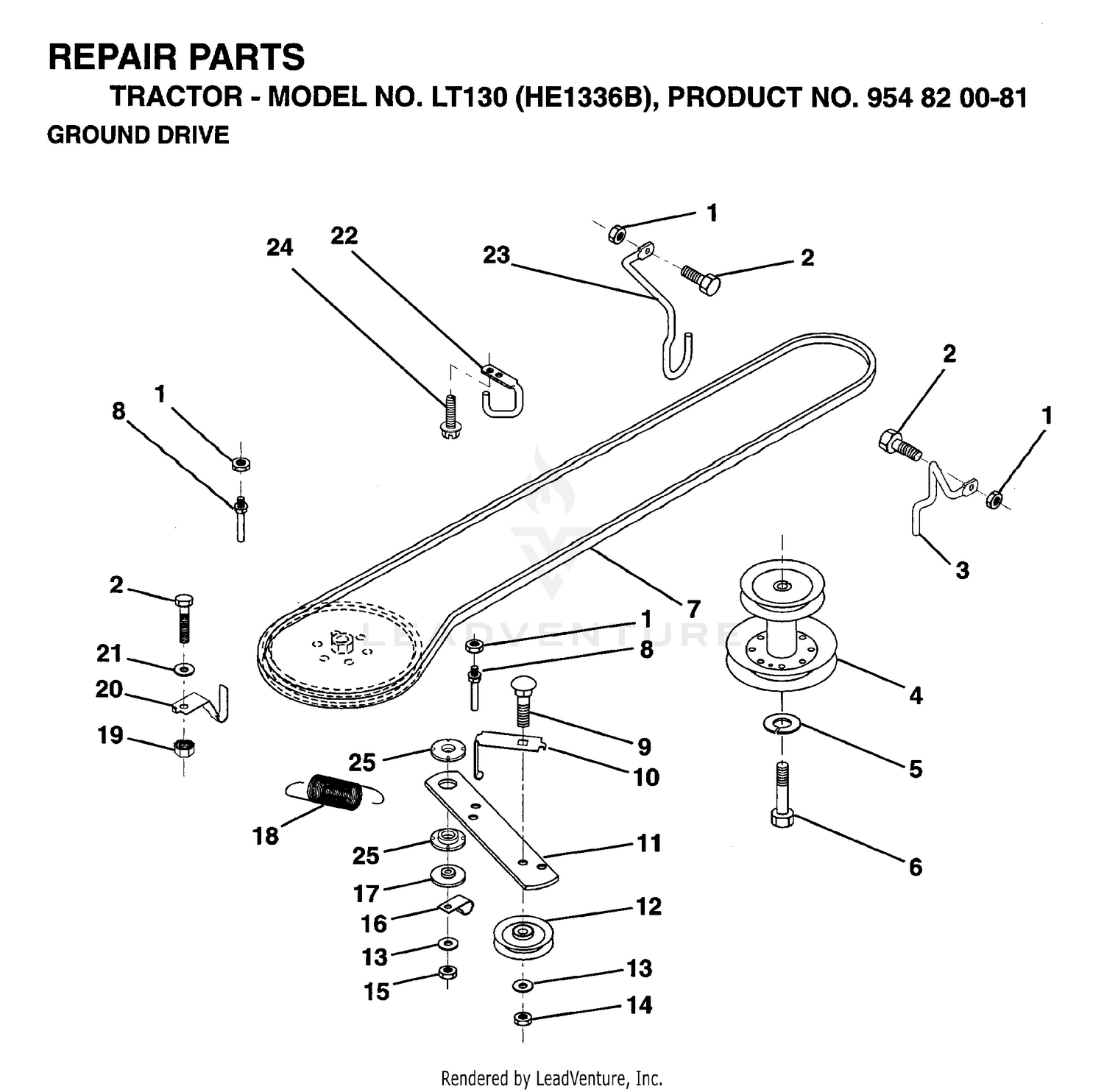

| Ref | Part Number | Description |
|---|
| 1 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 2 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 3 |
32128-23 |
NUT-HF Price: $1.51 |
| 3 |
532141342 |
KEEPER/MOWER DRIVE RH Price: $4.99 |
| 4 |
3290-216 |
WASHER Price: $3.83 |
| 4 |
532138029 |
PULLEY.ENGINE.36/38 LR Price: $48.99 |
| 5 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 6 |
871170744 |
Bolt, Hex Hd. 7/16-20 UNF Grade 5 Price: $2.99 |
| 7 |
532419271 |
V-BELT.DRIVE.MOWER.30" This part replaces 532126520. Price: $49.99 |
| 8 |
47-3840 |
ELBOW-ORIFICE (.094) Price: $37.03 |
| 8 |
532156109 |
BELT KEEPER KIT This part replaces 532123405. Price: $3.99 |
| 9 |
20-4390 |
SPACER Price: $12.54 |
| 9 |
872140612 |
Bolt, Carriage 3/8-16 UNC x 1-1/2 Price: $2.99 |
| 10 |
115-4948-01 |
HYDRAULIC CYLINDER ASM (12.19 STROKE) Price: $935.73 |
| 10 |
532123396 |
KEEPER.BELT.GROUND.DRIVE.IDLER Price: $4.99 |
| 11 |
11-5630-01 |
STOP WA NO 6-7 This part replaces 11-5630. Price: $300.49 |
| 11 |
532150926 |
ARM, GROUND DRIVE CLUTCH Price: $4.69 |
| 12 |
11-4590 |
PAD-BUMPER Price: $21.30 |
| 13 |
11-5270 |
WASHER-BUMPER Price: $12.82 |
| 13 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 14 |
322-6 |
SCREW-HH Price: $0.45 |
| 14 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 15 |
322-3 |
SCREW-HH Price: $0.79 |
| 15 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 16 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 16 |
532126471 |
CLIP,INSULATOR Price: $3.99 |
| 17 |
37-2760-01 |
PIN-LIFT, BAIL This part replaces 37-2760. Price: $89.10 |
| 17 |
532150932 |
SPACER, RETAINER Price: $2.99 |
| 18 |
3296-50 |
NUT-LOCK, NI Price: $2.68 |
| 18 |
532131459 |
SPRING.EXTENSION Price: $4.99 |
| 19 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 20 |
37-2910-01 |
REST-CYLINDER This part replaces 37-2910. Price: $99.17 |
| 20 |
532139919 |
KEEPER-T/A GROUND DRIVE BELT Price: $2.99 |
| 21 |
325-6 |
SCREW-HH Price: $1.42 |
| 21 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga SD Price: $5.99 |
| 22 |
532123404 |
KEEPER,FRA DR BEL Price: $3.22 |
| 23 |
532140916 |
KEEPER-MOWER DRIVE LH Price: $5.99 |
| 24 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 25 |
3-0144 |
SHAFT Price: $53.89 |
| 25 |
532150935 |
BUSHING NYLON COLLERED Price: $3.99 |
