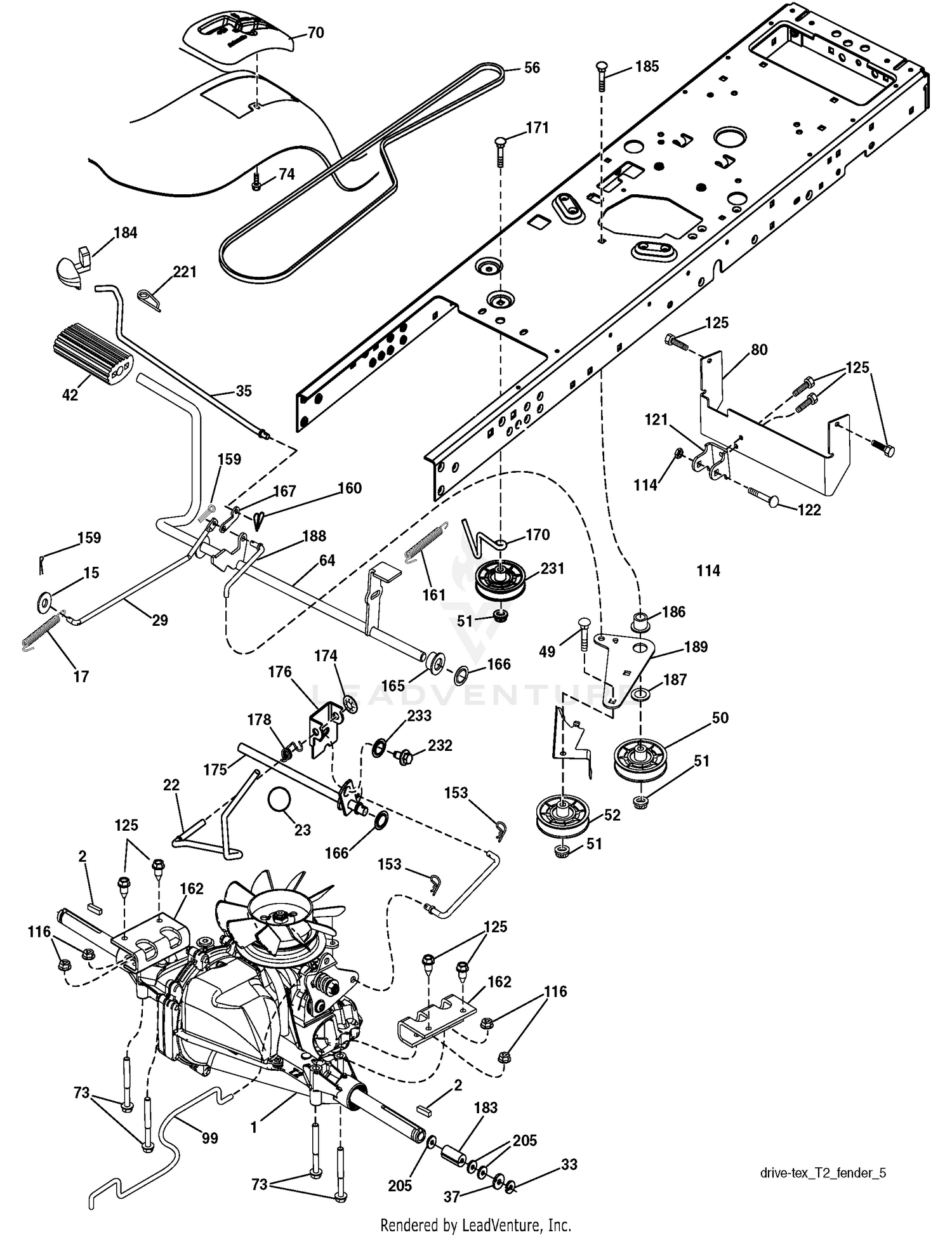

| Ref | Part Number | Description |
|---|
| 1 |
408799 |
Transaxle, Hydro Gear T2 (See Transaxle Breakdown) Price: Call Us |
| 1 |
87-8240 |
CABLE-BRAKE Price: $207.65 |
| 2 |
100-8261 |
CABLE-PARK BRAKE, RH Price: $129.77 |
| 2 |
123583X |
Key Square Price: Call Us |
| 3 |
94-3829 |
PIN-CLEVIS Price: $2.10 |
| 4 |
87-3480 |
BRACKET-EQUALIZER, CABLE Price: $14.68 |
| 5 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 6 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 7 |
321-9 |
SCREW-HH Price: $0.27 |
| 8 |
87-4710 |
SPACER-BRAKE, PARKING Price: $4.27 |
| 9 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 10 |
87-2710 |
LEVER-BRAKE Price: $189.28 |
| 11 |
3290-477 |
WASHER-CURVED Price: $0.79 |
| 12 |
32120-47 |
RING-RETAINING, EXTERNAL Price: $0.99 |
| 13 |
100-8532 |
DISCONTINUED Price: Call Us |
| 14 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 15 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 15 |
32128-21 |
NUT-HF Price: $0.39 |
| 17 |
197296 |
Spring, Brake Price: Call Us |
| 22 |
197660 |
Rod Shift Price: Call Us |
| 23 |
409154X421 |
Knob Price: Call Us |
| 29 |
408391 |
Rod, Brake Price: Call Us |
| 33 |
12000001 |
Ring E Price: Call Us |
| 35 |
197722 |
Rod, Brake, Park Price: Call Us |
| 37 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 42 |
8883R |
Cover, Foot Pedal Price: Call Us |
| 49 |
72110614 |
Bolt Price: Call Us |
| 50 |
194327 |
Pulley Idler Flat Price: Call Us |
| 51 |
73900600 |
Lock Nut 3/8-16 Price: Call Us |
| 52 |
194326 |
Idler V-Groove 910" Offset Price: Call Us |
| 56 |
125907X |
V-Belt, Drive Price: Call Us |
| 64 |
196200 |
Shaft Asm. Pedal Brake Control Price: Call Us |
| 70 |
193220X428 |
Console Price: Call Us |
| 73 |
74490544 |
Bolt Hex 5/16-18 Gr. 5 Price: Call Us |
| 74 |
142432 |
Screw 1/4 x 1/2 Price: Call Us |
| 80 |
408393 |
Strap Torque Price: Call Us |
| 99 |
408418 |
Rod Spring Bypass Price: Call Us |
| 114 |
73800500 |
Nut Lock 5/16-18 unc Price: Call Us |
| 116 |
73900500 |
Nut Lock Hex Flange 5/16-18 Price: Call Us |
| 121 |
175611 |
Bracket Strap Torque Price: Call Us |
| 122 |
72010520 |
Bolt 5/16-18 x 2.50 Price: Call Us |
| 125 |
17000512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 153 |
4497H |
Retainer Spring 1" Price: Call Us |
| 159 |
76020412 |
Pin Cotter 1/8 x 3/4 Price: Call Us |
| 160 |
169484 |
Retainer Clip Price: Call Us |
| 161 |
105709X |
Spring, Return, Clutch Price: Call Us |
| 162 |
408784 |
Adapter Transaxle Price: Call Us |
| 165 |
196212 |
Bushing Price: Call Us |
| 166 |
197290 |
Nut Push .625 Price: Call Us |
| 167 |
405257 |
Latch Brake Parking Price: Call Us |
| 170 |
413430 |
Keeper Belt Centerspan Price: Call Us |
| 171 |
72110622 |
Bolt Price: Call Us |
| 174 |
197289 |
Nut Push Price: Call Us |
| 175 |
408539 |
Shaft Asm. Shift Price: Call Us |
| 176 |
196214 |
Arm Clevis Rod Shift Price: Call Us |
| 178 |
197456 |
Spring Shift Price: Call Us |
| 183 |
156972 |
Spacer Axle Price: Call Us |
| 184 |
198403X505 |
Handle Parking Brake Price: Call Us |
| 185 |
72110620 |
Bolt Price: Call Us |
| 186 |
194321 |
Spacer Retainer Price: Call Us |
| 187 |
19133210 |
Washer Price: Call Us |
| 188 |
194323 |
Link Clutch Ground Drive Price: Call Us |
| 189 |
194317 |
Bellcrank Ground Drive Price: Call Us |
| 190 |
194318 |
Keeper Bellcrank Ground Drive Price: Call Us |
| 205 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 221 |
403187 |
Retainer Spring Clip Price: Call Us |
| 231 |
407287 |
Idler V-Groove 1.688" Offset Price: Call Us |
| 232 |
74780716 |
Bolt 7/16-14 x 1 Gr. 5 Price: Call Us |
| 233 |
405296 |
Washer Serrated Price: Call Us |
