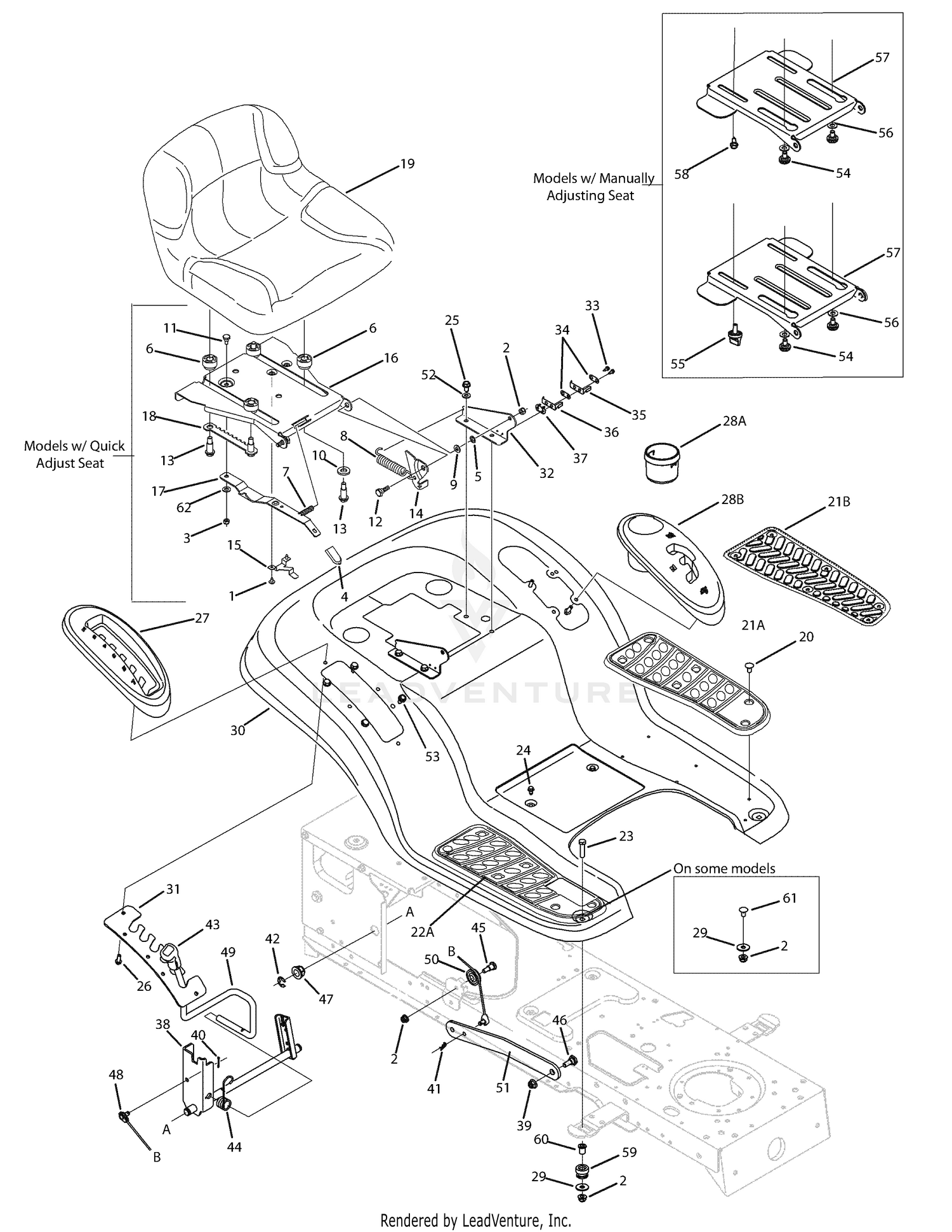

| Ref | Part Number | Description |
|---|
| 1 |
710-1268 |
Screw, #10-16 x.375 Price: $3.90 |
| 2 |
712-04063 |
Nut, Flange Lock, 5/16-18, GrF Price: $3.56 |
| 3 |
712-04064 |
Nut, Flange Lock, 1/4-20 Price: $3.64 |
| 4 |
720-0309A |
Seat Adjuster Grip Price: $8.22 |
| 5 |
726-0201 |
Nut, Speed,.3125 ID Price: $6.01 |
| 6 |
731-04074 |
Spacer Price: $6.89 |
| 7 |
732-0499 |
Compression Spring,.41 x 1.5 Price: $8.24 |
| 8 |
732-1184 |
Spring, Extension,.84 Dia. x 4.6 Price: $10.23 |
| 9 |
736-0242 |
Wash, Flat, .340 x .688 x .065 Price: $3.75 |
| 10 |
736-0140 |
Wash, Flat, .385 x .62 x .63 Price: $6.20 |
| 11 |
738-0137A |
Screw, Shld, .340 x.285, 1/4-20 Price: $9.83 |
| 12 |
738-0296 |
Screw, Shoulder,.437 x.268 Price: $3.93 |
| 13 |
738-0966A |
Screw, Should,.50 x.925, 3/8-16 Price: $4.08 |
| 14 |
783-0209D |
Seat Bracket, Lift Price: $14.21 |
| 15 |
783-0611 |
Seat Stop Price: $9.14 |
| 16 |
783-0738D |
SEAT PIVOT BRACKET Not Available Price: |
| 17 |
783-0739A-0637 |
SEAT ADJUSTMENT LEVER Not Available This part replaces 783-0739A. Price: |
| 18 |
783-0753 |
Seat Adjustment Selector Price: $13.84 |
| 19 |
757-04003A |
HIGH BACK SEAT Not Available Price: |
| 19 |
757-04075 |
HIGH BACK SEAT Not Available Price: |
| 19 |
757P06245 |
MEDIUM BACK SEAT This part replaces 757-04001A. Price: $196.09 |
| 20 |
726-3046 |
Ratchet Clip Price: $3.71 |
| 21a |
735-0657 |
FOOT PAD (LH) Not Available Price: |
| 21b |
735-0673 |
FOOT PAD (LH) Not Available Price: |
| 22a |
735-0656 |
FOOT PAD (RH) Not Available Price: |
| 22b |
735-0672 |
FOOT PAD (RH) Not Available Price: |
| 23 |
710-0528 |
Hex Screw, 5/16-18 x 1.25 Price: $3.90 |
| 24 |
710-0599 |
Screw, 1/4-20, 0.500 Price: $3.86 |
| 25 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 26 |
710-0895 |
Screw, 1/4-15, 0.750 Price: $5.82 |
| 27 |
731-06795 |
Cover, Lift Lever This part replaces 731-1990. Price: $21.39 |
| 28a |
731-04591A |
Cup Holder Price: $13.84 |
| 28b |
931-2104C |
Shift Lever Cover w/Cup Holder This part replaces 731-2104C. Price: $30.91 |
| 29 |
736-3078 |
Washer, Flat,.344 x 1.0 x.063 Price: $3.95 |
| 30 |
783-04333A |
FENDER - 4 STYLE Not Available Price: |
| 31 |
783-0677B |
LIFT ADJUSTMENT BRACKET Not Available Price: |
| 32 |
783-1489C |
Mounting Bracket, Seat Price: $17.99 |
| 33 |
710-0227 |
Screw, #8-18 x.50 Price: $3.90 |
| 34 |
726-0279 |
Plate, Insulator Price: $3.22 |
| 35 |
925-1303 |
Outer Seat SPring This part replaces 725-1303. Price: $5.58 |
| 36 |
725-1439 |
Spring Switch, Inner Price: $7.18 |
| 37 |
726-0278 |
Plate, Insulator Boss Price: $5.95 |
| 38 |
683-04223-0637 |
LIFT SHAFT ASSEMBLY (POWDER BLACK) Not Available This part replaces 683-04223. Price: |
| 39 |
712-04065 |
Nut, Flange Lock, 3/8-16, GrF Price: $3.68 |
| 40 |
714-0104 |
Pin, Cotter,.072 Dia. x 1.13 Price: $3.90 |
| 41 |
714-0111 |
Pin, Cotter, 3/32, 1.0 Price: $4.20 |
| 42 |
716-0106A |
Ring, E Type,.625 Dia. Price: $4.42 |
| 43 |
720-0311 |
Grip, Handle, 1/2 Price: $13.26 |
| 44 |
732-0874 |
Spring, Torsion Price: $4.02 |
| 45 |
738-0138A |
Screw, 5/16-18 x.620 Gr2 Price: $5.81 |
| 47 |
941-0225 |
FLANGE BEARING This part replaces 741-0225. Price: $6.55 |
| 48 |
746-0968 |
Cable, Lift, 16.16 Price: $18.10 |
| 49 |
747-04447 |
Handle, Lift Price: $38.98 |
| 50 |
756-1154 |
Pulley, Roller Price: $6.63 |
| 52 |
736-0607 |
Lock Washer, 5/16 Price: $3.66 |
| 53 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 54 |
738-04012C |
Shoulder Screw, .625 x .145, 3/8-16 This part replaces 738-04012A. Price: $4.75 |
| 55 |
720-04061 |
Knob, 3/8-16 Price: $4.67 |
| 56 |
736-0300 |
Flat Washer, .406 x .875 x .059 Price: $3.93 |
| 57 |
783-04081B |
Seat Pivot Bracket, Manual Adj. Price: $26.56 |
| 58 |
710-0870 |
Hex Head Washer Screw, 3/8-16 Price: $5.44 |
| 59 |
735-0690 |
Grommet, .4375 x .750 Price: $10.52 |
| 60 |
750-3310 |
Flanged Spacer Price: $4.52 |
| 61 |
710-0451 |
Carriage Bolt, 5/16-18 x .750 Price: $3.53 |
