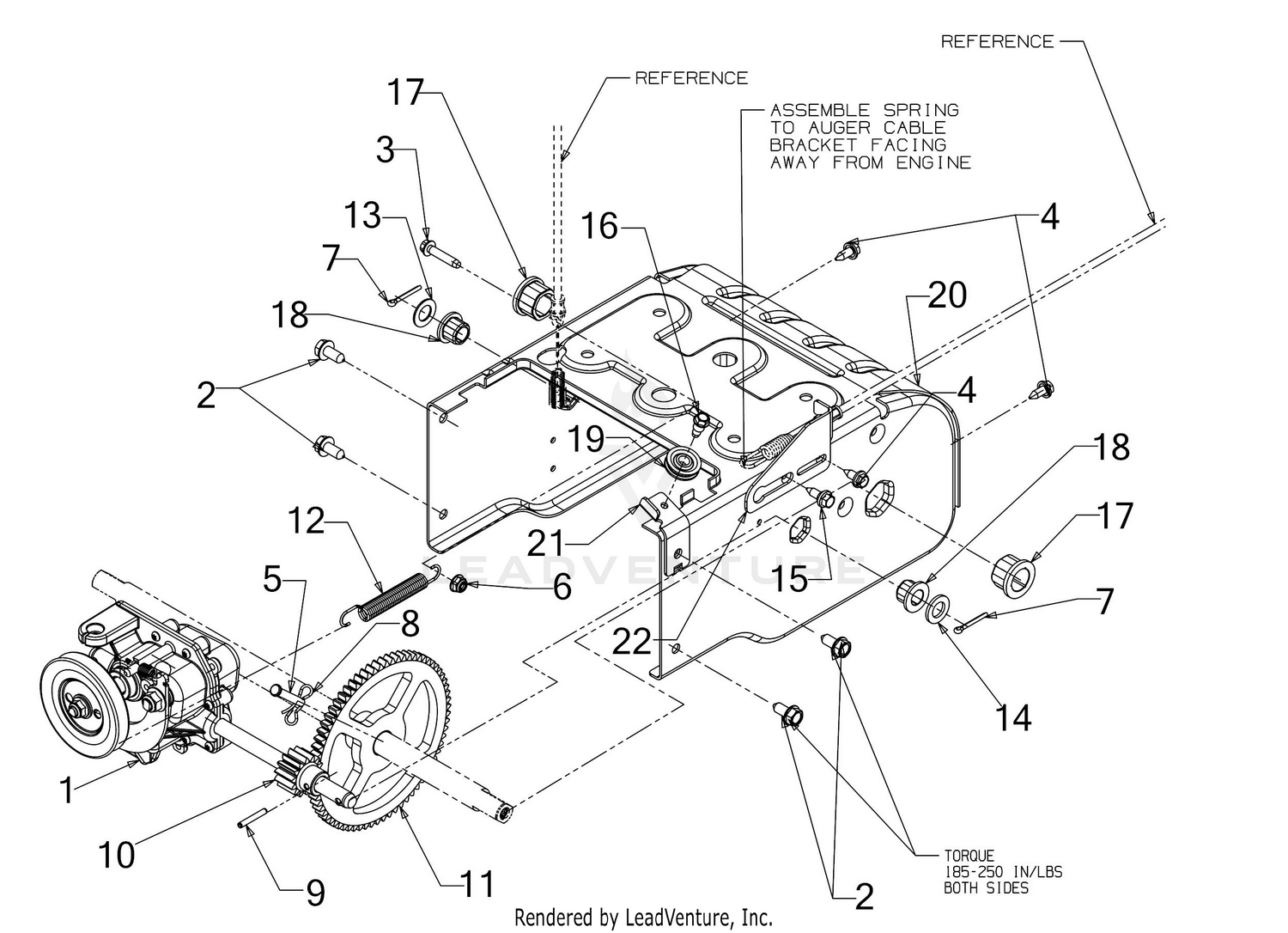

| Ref | Part Number | Description |
|---|
| 1 |
918-04296B |
SNOW TRANSMISSION ASSEMBLY Price: $251.62 |
| 2 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 3 |
710-0809 |
SCREW 1/4-20 x 1.25 Price: $6.37 |
| 4 |
710-1652 |
SCREW 1/4-20X.625 Price: $3.86 |
| 5 |
711-1364 |
PIN Price: $7.44 |
| 6 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 7 |
714-0115 |
Cotter Pin 1/8" Dia. x 1" Lg. This part replaces 914-0115. Price: $3.48 |
| 8 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 9 |
915-0249 |
SPRING PIN ROLL Price: $5.94 |
| 10 |
717-04066A |
PINION:14T Price: $20.79 |
| 11 |
917-04073A |
GEAR 70T Price: $53.38 |
| 12 |
932-0429A |
EXTENSION SPRING Price: $8.29 |
| 13 |
736-0160 |
Fl-Wash. .531" I.D. x .93" O.D. This part replaces 936-0160. Price: $3.90 |
| 14 |
936-0192 |
FLAT WASHER .535 x .930 x .090 Price: $3.75 |
| 15 |
738-04184A |
SHOULDER SCREW Price: $5.99 |
| 16 |
738-04425 |
SHOULDER SCREW Price: $3.60 |
| 17 |
941-0245 |
FLANGE BEARING Price: $9.07 |
| 18 |
741-04108 |
HEX FLANGE BEARING .506ID x .590LG Price: $5.20 |
| 19 |
756-0625 |
CABLE GUIDE ROLLER Price: $8.52 |
| 21 |
790-00223B-0637 |
AUGER CABLE GUIDE BRACKET (POWDER BLACK) Not Available This part replaces 790-00223A-0637. Price: |
