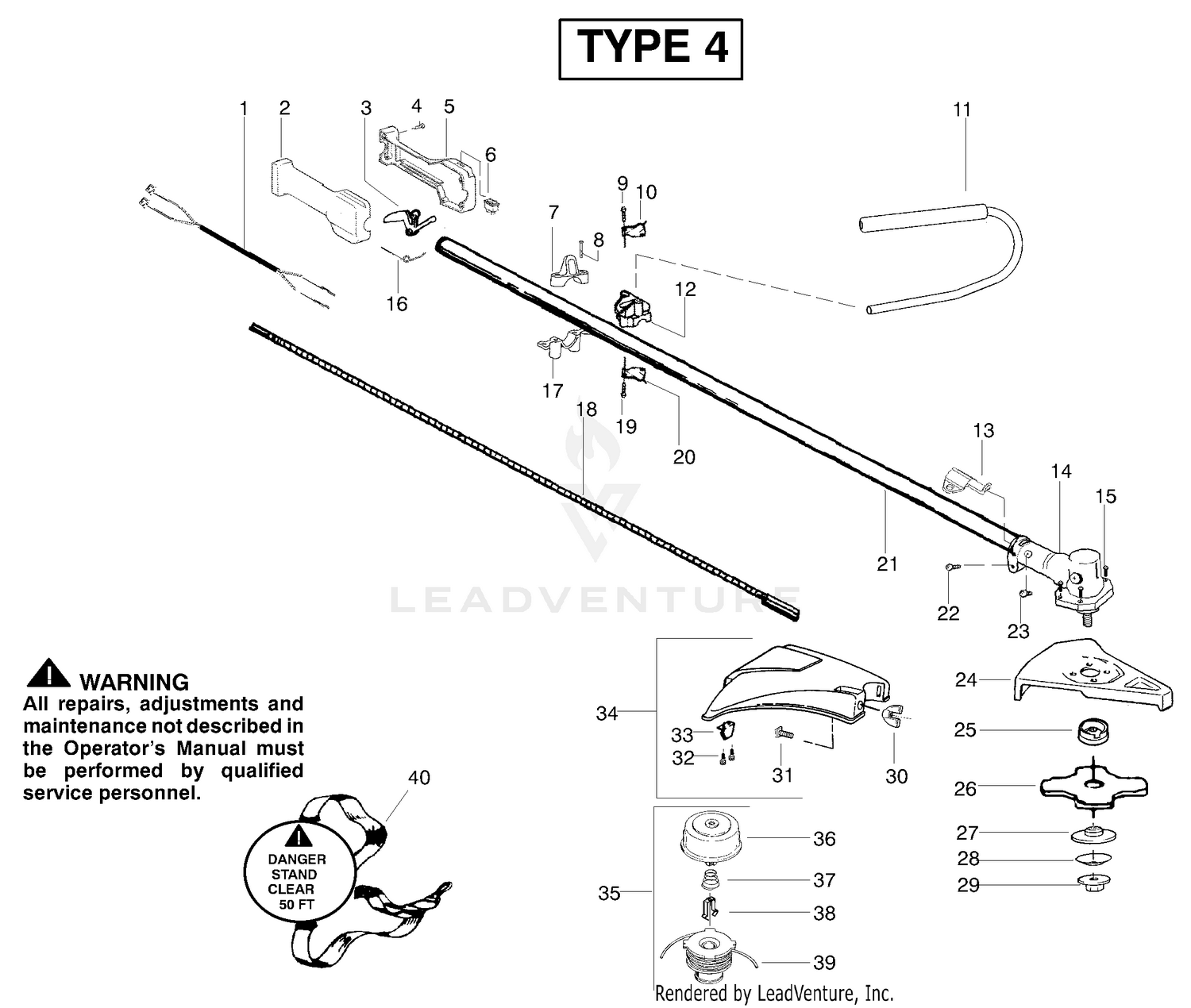

Handle & Driveshaft Assembly Type 4
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530047307 | Assy--Leadwire Price: $6.99 |
| 1 | SGH08703-03 | HEAD-TINE, ADAPTER Price: $281.01 |
| 2 | 530053968 | Hsg.--Throttle Right Price: $4.99 |
| 3 | 530056334 | Lever--Throttle Price: $4.99 |
| 4 | 530015886 | Screw Price: $1.99 |
| 5 | 530053969 | Hsg.--Throttle Left Price: $5.99 |
| 6 | 530069572 | Kit--On/Off Switch Price: $4.99 |
| 7 | 530071605 | KIT HARNESS CLAMP This part replaces 530055392. Price: $2.99 |
| 8 | 530015940 | Screw Price: $1.99 |
| 9 | 530015886 | Screw Price: $1.99 |
| 10 | 530058563 | Bracket--Handlebar Price: $2.99 |
| 11 | 530071394 | Kit--Handlebar Assy. w/decal Price: $7.99 |
| 12 | 530058766 | Clamp--Handlebar Price: $2.99 |
| 13 | 530095812 | Bracket--Shield Price: $1.99 |
| 14 | 530071585 | Kit--Gear Box Ass'y. Price: $54.99 |
| 15 | 530016312 | Screw Price: $1.99 |
| 16 | 530027597 | Spring--lever return Price: $1.99 |
| 17 | 530055394 | Clamp--Lower Price: $1.99 |
| 18 | 530094585 | Shaft--Flex Price: $19.99 |
| 19 | 530015940 | Screw Price: $1.99 |
| 20 | 530058563 | Bracket--Handlebar Price: $2.99 |
| 21 | 530071338 | Kit--Drive Shaft Assy Price: $32.99 |
| 22 | 530016014 | Screw Price: $1.99 |
| 23 | 530016224 | Screw Price: $1.99 |
| 24 | 530071383 | Kit--Metal Shield Price: $9.99 |
| 25 | 530095815 | Dust Cup Price: $6.99 |
| 26 | 952701611 | Accy--4 Point Blade Price: $26.19 |
| 27 | 530095816 | Washer Price: $6.99 |
| 28 | 530016240 | Washer--Belleville Price: $1.99 |
| 29 | 530015793 | Nut--Flange Price: $1.99 |
| 30 | 530091373 | Nut This part replaces 530016152. Price: $1.99 |
| 31 | 530015820 | Bolt Price: $1.99 |
| 32 | 530015805 | Screw Price: $1.99 |
| 33 | 530052285 | Line Limiter Price: $1.99 |
| 36 | 530095772 | Assy--Hub Price: $5.42 |
| 37 | 530053241 | Spring--Return Price: $1.99 |
| 38 | 530401957 | Retainer--Spool Price: $1.99 |
| 39 | 952711551 | Accy--Spool w/Line Price: $8.95 |
| 40 | 530094417 | Shoulder Strap This part replaces 530094408. Price: $20.65 |
