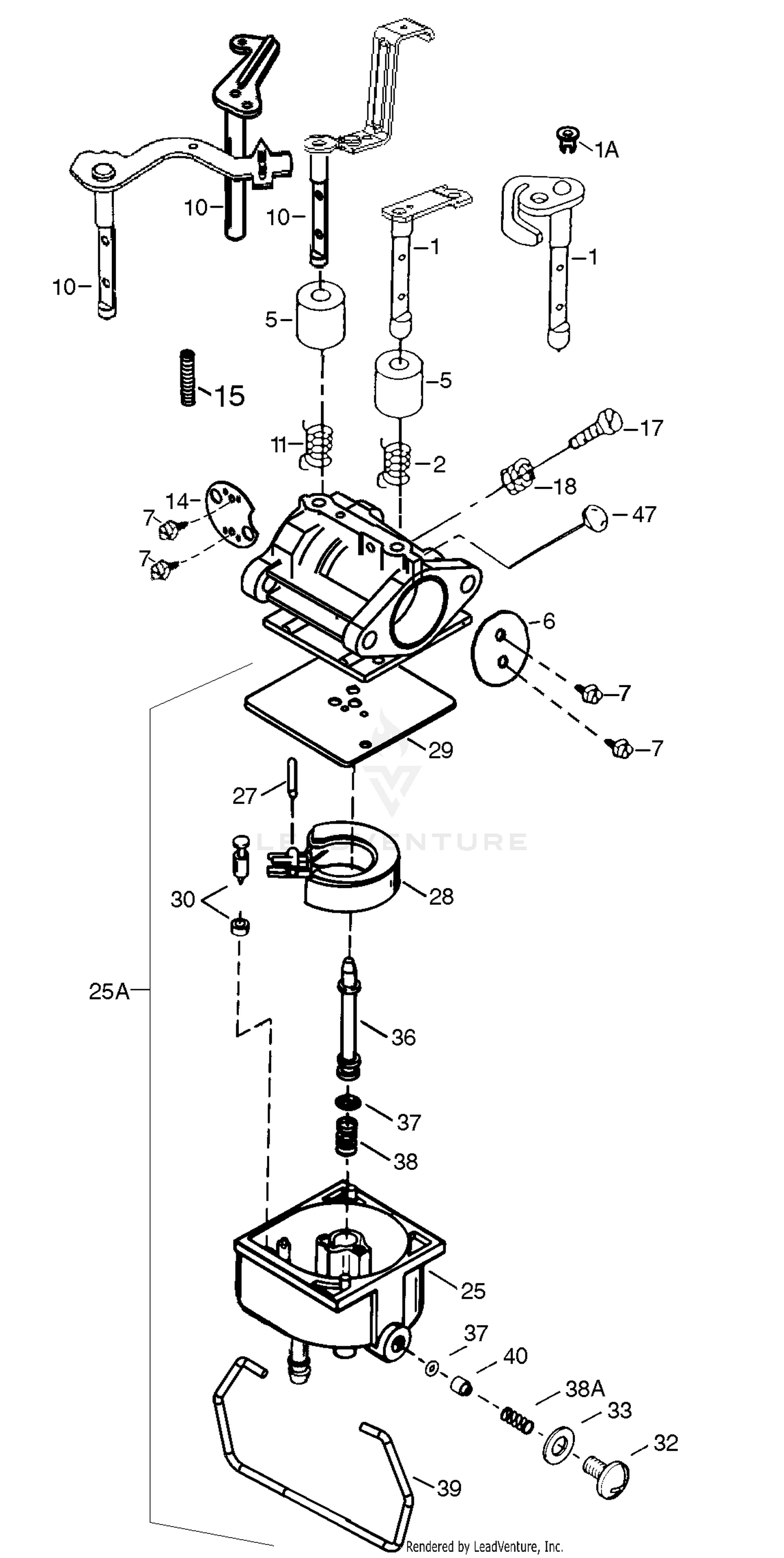

| Ref | Part Number | Description |
|---|
| 0 |
632789A |
CARBURETOR Price: $93.61 |
| 1 |
640035 |
SHAFT & LEV Price: $7.17 |
| 1A |
36288 |
BUSHING Price: $1.22 |
| 2 |
640036 |
SPRING Price: $1.20 |
| 5 |
640037 |
WASHER Price: $1.20 |
| 6 |
640038 |
SHUTTER Price: $1.42 |
| 7 |
650506 |
SCREW Price: $0.87 |
| 10 |
640044 |
SHAFT & LEV Price: $1.55 |
| 13 |
640037 |
WASHER Price: $1.20 |
| 14 |
640066 |
SHUTTER Price: $2.60 |
| 15 |
632785 |
SPRING Price: $1.20 |
| 17 |
651025 |
SCREW Price: $1.18 |
| 18 |
630766 |
SPRING Price: $1.25 |
| 25 |
640039B |
FLOAT BOWL This part replaces 640039A. Price: $12.66 |
| 27 |
632544A |
FLOAT SHAFT This part replaces 632544. Price: $2.61 |
| 28 |
632543 |
FLOAT Price: $6.73 |
| 29 |
640047 |
GASKET Price: $2.60 |
| 30 |
632709 |
INLET NEEDLE Price: $4.91 |
| 32 |
640041 |
SCREW Price: $1.25 |
| 33 |
27110A |
GASKET This part replaces 640042. Price: $1.45 |
| 36 |
640043 |
NOZZLE Price: $4.95 |
| 37 |
632547 |
O RING Price: $1.49 |
| 37A |
632547 |
O RING Price: $1.49 |
| 38 |
632545 |
SPRING Price: $0.87 |
| 38A |
36918 |
SPRING Price: $1.18 |
| 39 |
640218A |
RETAINER Price: $2.28 |
| 40 |
632788 |
FUEL JET Price: $1.99 |
