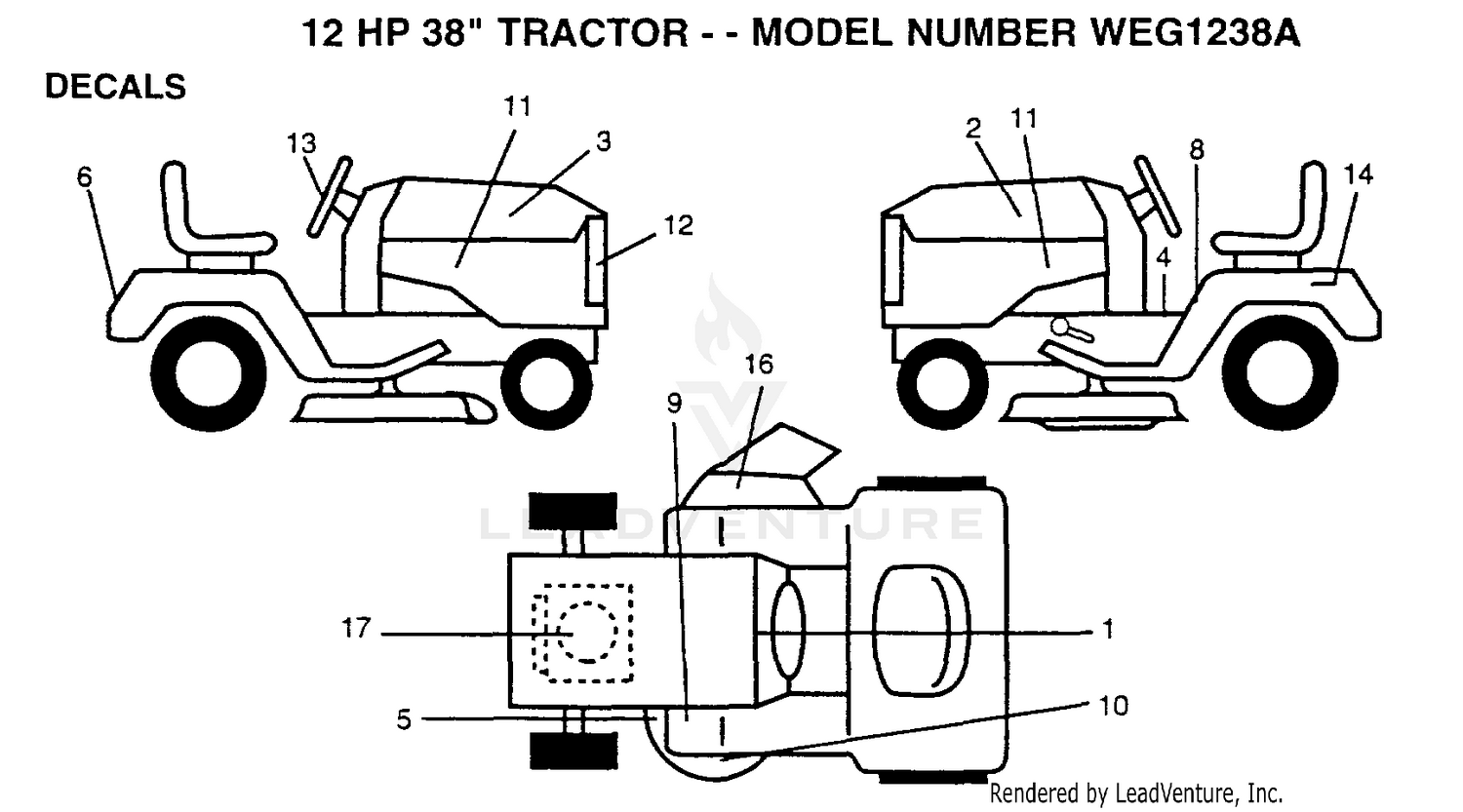

| Ref | Part Number | Description |
|---|
| C38 |
GRASS |
CATCHER Price: Call Us C38 |
| CH12 |
TIRE |
CHAINS Price: Call Us CH12 |
| LBD48 |
SNOW |
BLADE Price: Call Us LBD48 |
| LC05 |
WHEEL |
WTS. Price: Call Us LC05 |
| LSB42 |
SNOW |
THROWER Price: Call Us LSB42 |
| 1 |
138956 |
DECAL.DASH.INSTR. Price: Call Us |
| 1 |
32128-19 |
NUT-HF Price: $0.99 |
| 2 |
143566 |
DECAL.HD.STRIP.LH Price: Call Us |
| 2 |
325-35 |
SCREW-HH Price: $2.37 |
| 3 |
143565 |
DECAL.HD.STRIP.RH Price: Call Us |
| 3 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 4 |
140837 |
DECAL BRAK PARK Price: Call Us |
| 4 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 5 |
136832 |
DECAL Price: Call Us |
| 5 |
32136-2 |
NUT-SHH Price: $3.55 |
| 6 |
137043 |
DECAL.FENDER Price: Call Us |
| 6 |
86-8100-01 |
BALL JOINT ASM This part replaces 86-8100. Price: $137.53 |
| 7 |
21-3000-01 |
NUT-JAM, PUSH ARM This part replaces 21-3000. Price: $37.02 |
| 8 |
133795 |
DECAL CAUTION Price: Call Us |
| 8 |
86-0730 |
DECAL-HOC, RH CENTER Price: $47.26 |
| 9 |
101892X |
DECAL T Price: Call Us |
| 9 |
86-2230-01 |
GUIDE-COVER, RH ASM This part replaces 86-2230. Price: $65.76 |
| 10 |
139376 |
DECAL.MOWER Price: Call Us |
| 10 |
86-2510-01 |
SPRING-COMP, LIFT This part replaces 86-2510. Price: $49.39 |
| 11 |
143766 |
DECAL.PNL.SIDE.12 Price: Call Us |
| 11 |
84-5300 |
NUT-JAM Price: $9.99 |
| 12 |
137044 |
DECAL.GRILL Price: Call Us |
| 12 |
92-5810-03 |
ROD END ASM-FEMALE This part replaces 92-5810. Price: $127.21 |
| 13 |
137042 |
DECAL.WHL.STRG. Price: Call Us |
| 13 |
32121-51 |
PIN-ROLL Price: $0.70 |
| 14 |
106-1097 |
KIT - HYDRAULIC CYLINDER This part replaces 86-2190. Price: $1,022.51 |
| 14 |
121549X |
DECAL Price: Call Us |
| 15 |
32144-26 |
SCREW-FLOW, TAPTITE Price: $5.75 |
| 16 |
92-5811 |
DISCONTINUED Price: Call Us |
| 17 |
120601X |
DECAL.ENG.271967 Price: Call Us |
| 17 |
32128-54 |
NUT-HF Price: $5.25 |
| 18 |
325-11 |
SCREW-HH Price: $1.93 |
| 19 |
94-8009-01 |
DISCONTINUED This part replaces 94-8009. Price: Call Us |
| 20 |
86-2280-01 |
TUBE-CARRIER, RH ASM This part replaces 86-2280. Price: $252.07 |
| 21 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 22 |
3290-256 |
PIN-HAIR Price: $1.01 |
| 23 |
86-2320-01 |
TUBE-CARRIER, LH ASM This part replaces 86-2320. Price: $370.08 |
| 24 |
86-0720 |
DECAL-HOC, LH CENTER Price: $47.26 |
| 25 |
86-1890-03 |
HINGE This part replaces 86-1890. Price: $5.75 |
| 26 |
86-2390 |
PIN Price: $14.56 |
| 27 |
57-0690 |
PIN-SPECIAL Price: $3.66 |
| 28 |
57-0680 |
SHAFT-ROLLER Price: $8.76 |
| 29 |
29-4820 |
ROLLER Price: $14.88 |
| 30 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 31 |
86-0740 |
DECAL-BELT, CENTER Price: $36.83 |
| 32 |
92-7757 |
CENTER DECK ASM Price: $5,767.93 |
| 33 |
55-4300 |
DECAL-WARNING Price: $13.99 |
| 34 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 35 |
32128-21 |
NUT-HF Price: $0.39 |
| 36 |
86-0780 |
DECAL-HOC Price: $10.90 |
| 37 |
68-6840 |
SHAFT-ROLLER Price: $64.07 |
| 38 |
68-6710 |
ROLLER Price: $59.98 |
| 39 |
68-8340 |
DECAL-TORQUE Price: $19.99 |
| 41 |
43-8480 |
DECAL-DANGER Price: $6.49 |
| 42 |
32128-23 |
NUT-HF Price: $1.51 |
| 43 |
69-7290-01 |
MOUNT-JOINT, BALL This part replaces 69-7290. Price: $105.61 |
| 45 |
77-0950 |
WASHER-CASTOR Price: $4.34 |
| 47 |
69-1510 |
SPACER Price: $4.48 |
| 48 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 49 |
69-6470 |
BUSHING-CASTOR Price: $5.82 |
| 50 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 51 |
86-1440 |
WASHER-FLAT Price: $2.10 |
| 52 |
85-6410 |
DECAL-DANGER Price: $8.29 |
| 54 |
92-5581 |
RING-RETAINING Price: $1.90 |
| 55 |
92-5583 |
WASHER-CAP Price: $7.56 |
| 56 |
92-9726 |
SPRING-COMPRESSION Price: $36.33 |
| 57 |
92-8861 |
CAP-HOC Price: $44.83 |
| 58 |
32148-10 |
NUT-CLINCH Price: $1.29 |
| 59 |
106-1057 |
KIT-CLUTCH BRACKETS This part replaces 94-8020. Price: $221.30 |
| 60 |
94-8008 |
PLATE-WEAR Price: $84.91 |
| 61 |
322-21 |
SCREW-HH Price: $4.29 |
| 62 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 138311 |
DECAL |
HANDLE LIFT Price: Call Us 138311 |
| 142806 |
MANUAL.O.GEN.E/F |
Price: Call Us 142806 |
| 144111 |
MANUAL.P.WEG1238A |
Price: Call Us 144111 |
