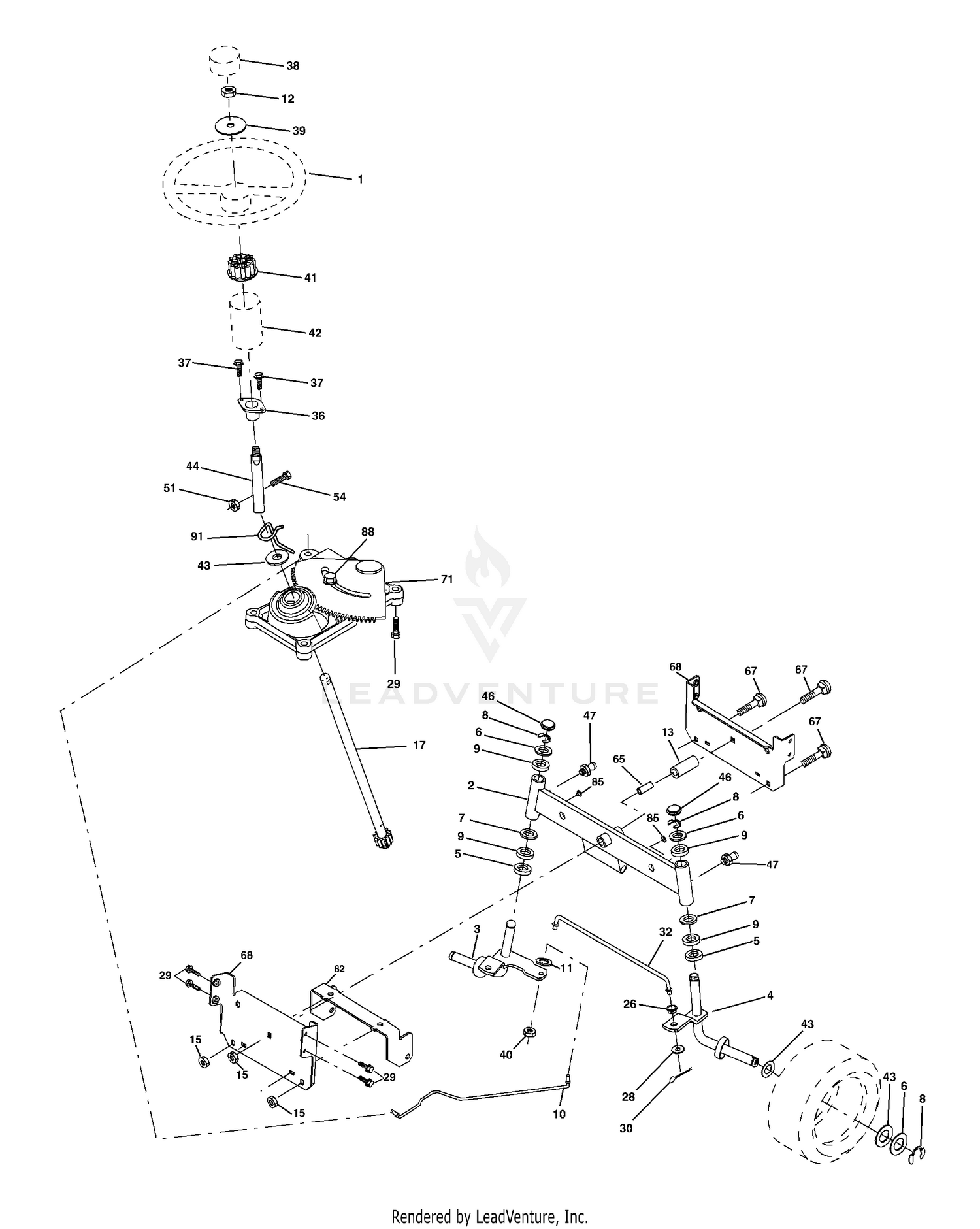

| Ref | Part Number | Description |
|---|
| 1 |
140044X428 |
Wheel Steering Auto Black Price: Call Us |
| 1 |
251-8 |
BEARING-BALL Price: $30.06 |
| 2 |
175131 |
Axle Asm Front Price: Call Us |
| 2 |
92-0753 |
RING-SNAP Price: $3.60 |
| 3 |
169840 |
Spindle Asm Lh Price: Call Us |
| 3 |
92-0740 |
WASHER-THRUST Price: $22.39 |
| 4 |
169839 |
Spindle Asm Rh Price: Call Us |
| 4 |
92-0781 |
BEARING-NEEDLE Price: $56.70 |
| 5 |
108-3694 |
GEAR-MAIN, 36T This part replaces 100-8597. Price: $580.27 |
| 5 |
6266H |
Bearing Race Thrust Harden Price: Call Us |
| 6 |
121748X |
Washer 25/32 X 1 5/8 X 16ga Price: Call Us |
| 6 |
92-0667 |
RING-SYNCHRO Price: $105.99 |
| 7 |
19272016 |
Washer 27/32 X 1 1/4 X 16 Ga Price: Call Us |
| 7 |
92-0668 |
SHIFTER-SYNCHRO Price: $505.63 |
| 8 |
12000029 |
Ring Klip #t5304-75 Price: Call Us |
| 8 |
251-346 |
BEARING-BALL Price: $9.37 |
| 9 |
100-8602 |
SHAFT-IDLER, REVERSE Price: $406.58 |
| 9 |
3366R |
Bearing Col Strg Blk Price: Call Us |
| 10 |
175121 |
Link Drag Price: Call Us |
| 10 |
92-0684 |
GEAR-REVERSE, 33 TOOTH Price: $224.56 |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 11 |
92-0778 |
BEARING Price: $36.08 |
| 12 |
73940800 |
Nut Hex Jam Toplock 1/2-20 Unf Price: Call Us |
| 12 |
92-0664 |
HUB-SYNCHRO Price: $399.67 |
| 13 |
136518 |
Spacer Bearing Axle Front Price: Call Us |
| 13 |
92-0666 |
SPRING-SYNCHRO Price: $7.93 |
| 14 |
92-0763 |
RING-SNAP Price: $3.60 |
| 15 |
100-8598 |
GEAR-MAIN, 20 TOOTH Price: $368.51 |
| 15 |
145212 |
Hex Flange Lock Price: Call Us |
| 16 |
100-8596 |
SHAFT-MAIN Price: $859.12 |
| 17 |
180641 |
Shaft Asm Strg Price: Call Us |
| 17 |
92-0772 |
KEY Price: $6.36 |
| 19 |
108-3695 |
GEAR-MAIN, 22T This part replaces 92-0671. Price: $354.15 |
| 20 |
92-0754 |
RING-SNAP Price: $3.19 |
| 21 |
92-0673 |
GEAR-MAIN, 14 TOOTH Price: $173.64 |
| 22 |
92-0650 |
BEARING Price: $82.22 |
| 23 |
92-0665 |
KEY-SYNCHRO Price: $18.18 |
| 24 |
92-0676 |
GEAR-REDUCTION, 32 TOOTH Price: $354.36 |
| 26 |
100-8601 |
COLLAR Price: $33.06 |
| 26 |
126847X |
Bushing Rod Tie Blk Lt Price: Call Us |
| 27 |
92-0819 |
GEAR-REDUCTION, 40 TOOTH Price: $812.64 |
| 28 |
19131416 |
Washer 13/32 X 7/8 X 16ga Price: Call Us |
| 28 |
92-0674 |
SHAFT-REDUCTION Price: $842.09 |
| 29 |
17060612 |
Screw 3/8-16x3/4 Price: Call Us |
| 29 |
92-0682 |
WASHER-THRUST Price: $17.98 |
| 30 |
76020412 |
Pin Price: Call Us |
| 30 |
92-0681 |
BEARING-NEEDLE Price: $42.01 |
| 31 |
100-8599 |
GEAR-RED, 25 TOOTH Price: $225.10 |
| 32 |
108-3697 |
GEAR-REDUCTION, 47T This part replaces 100-8600. Price: $417.10 |
| 32 |
130465 |
Rod Tie Wire Form 19 75 Mech Price: Call Us |
| 33 |
92-0782 |
BEARING-NEEDLE Price: $70.92 |
| 36 |
155099 |
Bushing Strg 5/8 Id Dash Price: Call Us |
| 37 |
152927 |
Screw TT #10-32 x 5 x 3/8 Flange Price: Call Us |
| 38 |
140045X428 |
Insert Cap Strg Price: Call Us |
| 39 |
19183812 |
Washer 9/16 x 2-3/8 Price: Call Us |
| 40 |
7810H |
Locknut Center Price: Call Us |
| 41 |
100711L |
Adaptor Wheel Strg 640/ 635id Price: Call Us |
| 42 |
145054X428 |
Boot Dash Steering Price: Call Us |
| 43 |
121749X |
Washer 25/32 X 1 1/4 X 16 Ga Price: Call Us |
| 44 |
180640 |
Extension Shaft Steering Price: Call Us |
| 46 |
121232X |
Cap Spindle Fr Top Blk Price: Call Us |
| 47 |
183226 |
Fitting Grease Price: Call Us |
| 51 |
73540400 |
Nut Crownlock 1/4-28 Price: Call Us |
| 54 |
71130420 |
Bolt Hex 1/4-28 Unf x 1-1/4 Gr. 8 Price: Call Us |
| 65 |
160367 |
Spacer Brace Axle Price: Call Us |
| 67 |
72140618 |
Bolt Rdhd Sq 3/8-16 Unc x 2-3/4 Price: Call Us |
| 68 |
169827 |
Brace Axle Price: Call Us |
| 71 |
175146 |
Steering Asm Price: Call Us |
| 82 |
169835 |
Bracket Susp Chassis Front Price: Call Us |
| 85 |
133835 |
Fastener Christmas Tree Price: Call Us |
| 88 |
175118 |
Bolt Shoulder 7/16-20 Unc Price: Call Us |
