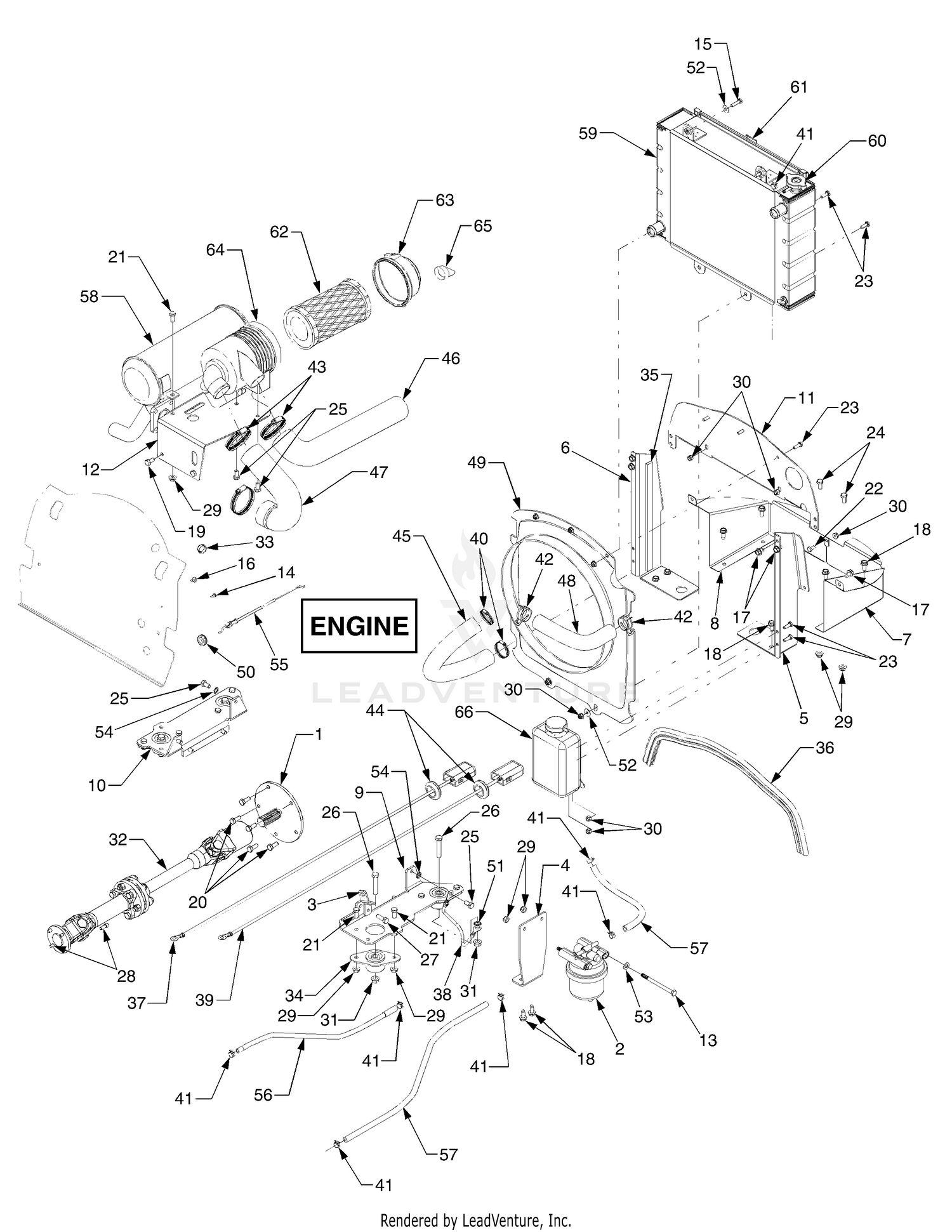

| Ref | Part Number | Description |
|---|
| 1 |
603-04294-0637 |
FLYWHEEL PLATE (POWDER BLACK) Not Available This part replaces 603-04294. Price: |
| 2 |
759-04027 |
Filter Element Price: $71.85 |
| 2 |
951-04044 |
FILTER ASSEMBLY Not Available This part replaces 651-04044. Price: |
| 3 |
703-05200 |
PUMP MOUNTING BRACKET Not Available Price: |
| 4 |
703-05454 |
BRACKET, FILTER MTG. Not Available Price: |
| 5 |
703-05834 |
BRACKET (RH) RADIATOR Not Available Price: |
| 6 |
703-05835 |
BRACKET (LH) RADIATOR Not Available Price: |
| 7 |
703-05836 |
PLATE (RH) BAFFLE Not Available Price: |
| 8 |
703-05837 |
PLATE (LH) BAFFLE Not Available Price: |
| 9 |
703-05841-0637 |
ENGINE BRACKET (RH) (POWDER BLACK) Not Available Price: |
| 10 |
703-05842 |
ENGINE BRACKET (LH) Not Available Price: |
| 11 |
703-3483A |
PLATE-RAD BAFFLE Not Available Price: |
| 12 |
703-3486 |
BRACKET-MUFFLER MTG Not Available Price: |
| 13 |
710-0190 |
Screw, Hex Cap, 5/16-18 x 4.0 GR5 Price: $7.01 |
| 14 |
910-0224 |
Screw, #10-16, .50 This part replaces 710-0224. Price: $3.19 |
| 15 |
710-0597 |
SCREW 1/4-20 X1.00 GR5 Price: $3.66 |
| 16 |
710-0599 |
Screw, Hex Wash Hd Tapp 1/4-20 x .5 Price: $3.86 |
| 17 |
710-0607 |
Screw, Hex Wash Hd Tapp 5/16-18 x .5 Price: $6.06 |
| 17 |
710-0623 |
Screw, Hex Wash Hd Tapp 3/8-16 x .75 Price: $3.93 |
| 18 |
710-1260A |
Screw, Hex Wash Hd Tapp 5/16-18 x .75 Price: $3.34 |
| 19 |
710-1376 |
Screw, Hex Cap, M8-1.25 x 16 Price: $6.06 |
| 20 |
710-1681 |
Screw, Hex Cap, M8-1.25 x 20 Price: $5.22 |
| 21 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 22 |
710-3013 |
Screw, Hex Cap, 1/4-20 x .5 GR5 Price: $4.02 |
| 23 |
710-3015 |
Screw, Hex Cap 1/4-20 x .75 GR5 Price: $3.65 |
| 24 |
710-3025 |
Screw, Hex Cap, 5/16-18 x .625 GR5 Price: $3.64 |
| 25 |
710-3138 |
Screw, Hex Cap, M8-1.25 x 16 Not Available Price: |
| 26 |
710-3144 |
Screw, Hex Cap 3/8-16 x 2/0 GR5 Price: $4.02 |
| 27 |
710-3206A |
Screw, Hx Cap, M8-1.25:25 GR8 Price: $3.64 |
| 28 |
710-3218 |
Screw, Socket Hd. Cap, 1/4-20 x .62 GR8 Price: $3.86 |
| 29 |
712-04063 |
Nut, Hex Flange Lock, 5/16-18 Price: $3.56 |
| 30 |
712-04064 |
Nut, Hex Flange Lock, 1/4-20 .. Price: $3.64 |
| 31 |
712-04065 |
Nut, Hex Flange Lock, 3/8-16 .. Price: $3.68 |
| 32 |
917-04193 |
DRIVE SHAFT ASSEMBLY This part replaces 717-04193. Price: $756.42 |
| 33 |
720-0425 |
CAP PLUG Not Available Price: |
| 34 |
722-0262 |
ENGINE MOUNT Not Available Price: |
| 37 |
725-3281 |
POITIVE BATTERY CABLE Not Available Price: |
| 38 |
725-3283 |
Wire, Ground Price: $19.32 |
| 39 |
725-3287 |
NEGATIVE BATTERY CABLE Not Available Price: |
| 40 |
726-0132 |
Clamp, Hose Price: $13.50 |
| 41 |
726-0205 |
Clamp, Hose Price: $3.71 |
| 42 |
726-04026 |
HOSE CLAMP 1.24 Not Available Price: |
| 43 |
726-0476 |
HOSE CLAMP 2-3" Price: $10.68 |
| 44 |
731-04018 |
GROMMET Not Available Price: |
| 45 |
731-3304A |
LOWER RADIATOR HOSE Not Available Price: |
| 46 |
731-3348 |
AIR CLEANER INLET HOSE Not Available Price: |
| 47 |
731-3349 |
AIR INLET HOSE Not Available Price: |
| 48 |
731-3350 |
RADIATOR UPPER HOSE Not Available Price: |
| 49 |
731-3363 |
RADIATOR SHROUD Not Available Price: |
| 50 |
735-0226 |
Grommet, Rubber Price: $9.09 |
| 51 |
736-0148 |
Washer, External Lock, 3/8 Price: $3.19 |
| 52 |
736-0173 |
Washer, Flat, .28 x .74 x .063 .. Price: $3.76 |
| 53 |
736-0275 |
FLAT WASHER This part replaces 7360275. Price: $5.99 |
| 54 |
736-0607 |
Washer, External Lock, 5/16 Price: $3.66 |
| 55 |
746-3086A |
THROTTLE CABLE Not Available Price: |
| 58 |
751-3163 |
EXHAUST MUFFLER Not Available Price: |
| 59 |
722-0268 |
GROMMET-RADIATOR Not Available Price: |
| 59 |
751-3165 |
RADIATOR ASSEMBLY Not Available Price: |
| 60 |
759-04129 |
Radiator Cap Not Available This part replaces 751-3192. Price: |
| 61 |
751-3193 |
RADIATOR SCREEN Not Available Price: |
| 62 |
751-3194 |
Element, Air Cleaner Price: $48.78 |
| 63 |
751-3195 |
AIR CLEANER CAP Not Available Price: |
| 64 |
751-3196 |
AIR CLEANER CANISTER Not Available Price: |
| 65 |
751-3197 |
Nozzle, Air Cleaner Price: $33.14 |
| 777S30631 |
LABEL-BATT |
EXPLODE Not Available Price: 777S30631 |
| 777S30632 |
LABEL-ROTATING |
FAN Not Available Price: 777S30632 |
| 777S30633 |
LABEL-GAS |
EXPLODE Not Available Price: 777S30633 |
