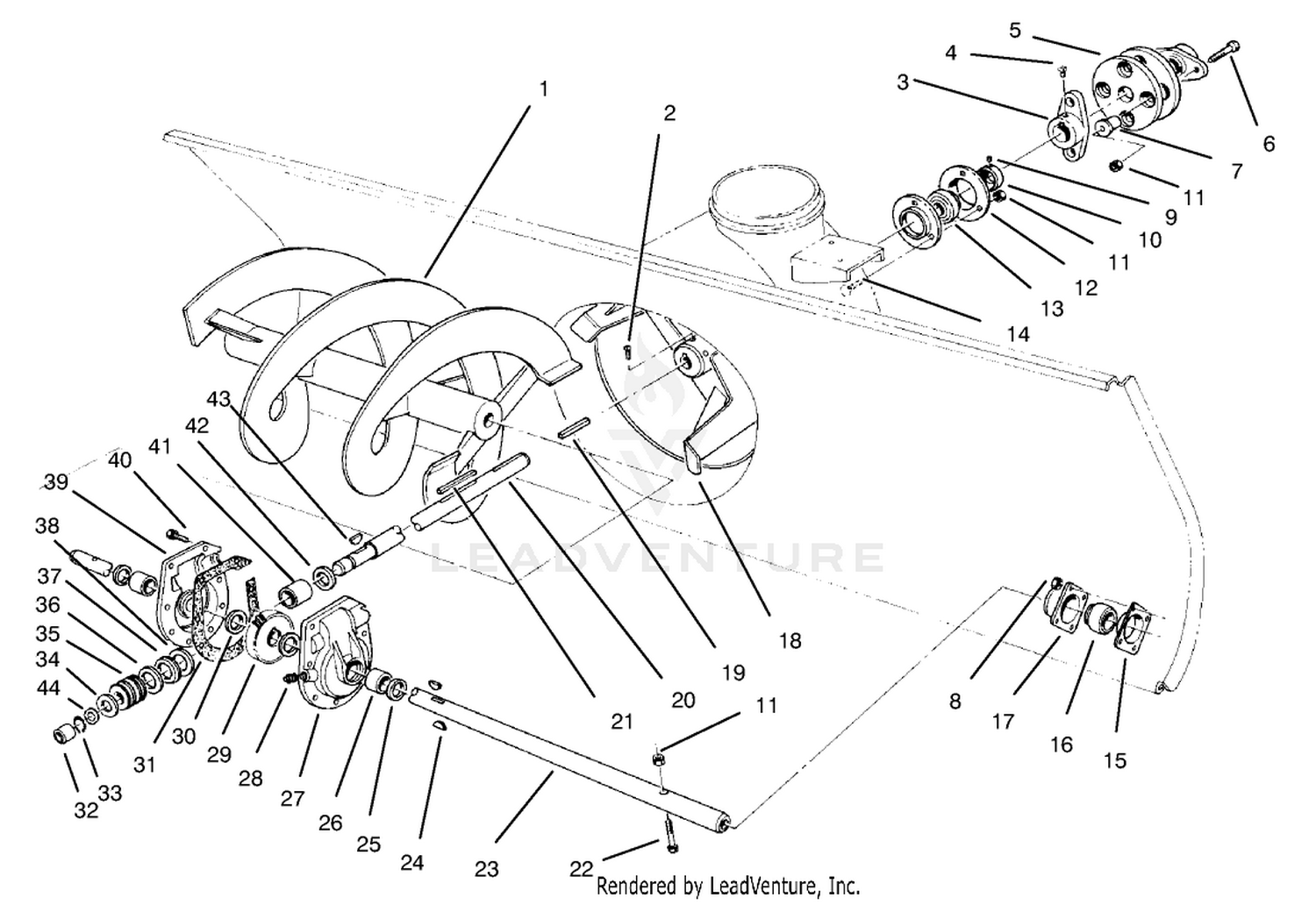

| Ref | Part Number | Description |
|---|
| 1 |
57-3300-03 |
AUGER-R.H. This part replaces 57-3300. Price: $561.63 |
| 2 |
3242-4 |
SCREW-SET, SQH Price: $2.29 |
| 3 |
61-4000 |
HUB WA (KEY) *R Price: Call Us |
| 4 |
3241-5 |
SCREW-SET Price: $0.61 |
| 5 |
115-4523 |
COUPLING-RUBBER This part replaces 44-2230. Price: $52.81 |
| 6 |
322-7 |
SCREW-HH Price: $0.89 |
| 7 |
27-6601 |
SPACER-COUPLING, RUBBER Price: $15.67 |
| 8 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 9 |
3245-32 |
SCREW-HSH Price: $3.59 |
| 10 |
251-231 |
EXT LOCKING COLLAR Price: $22.30 |
| 11 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 12 |
251-229 |
BRG FLANGE Price: $38.99 |
| 13 |
251-224 |
BALL BRG W/COLLAR Price: $33.97 |
| 14 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 15 |
20-1000 |
BEARING-FLANGE, REAR Price: $7.40 |
| 16 |
20-0980 |
BEARING Price: $16.41 |
| 17 |
20-0990 |
BEARING-FLANGE, FRONT Price: $7.40 |
| 18 |
19-8890-03 |
IMPELLER This part replaces 19-8890. Price: $444.71 |
| 19 |
21-5070 |
KEY-SQUARE Price: $5.83 |
| 20 |
57-3490 |
IMPELLER SHAFT Price: Call Us |
| 21 |
6-8590 |
KEY Price: $11.99 |
| 22 |
322-14 |
SCREW-HH Price: $1.01 |
| 23 |
57-3500 |
SHAFT-AUGER Price: $381.01 |
| 24 |
3257-33 |
KEY-WOODRUFF Price: $1.76 |
| 25 |
7-0045 |
SEAL-OIL Price: $10.93 |
| 26 |
256-237 |
BUSHING Price: $14.99 |
| 27 |
14-2459 |
LH BUSHING CASE ASM This part replaces 37-8860. Price: $100.42 |
| 28 |
281-1 |
PLUG-PIPE, SQH Price: $4.56 |
| 29 |
5-7180 |
GEAR-WORM, 27T Price: $106.15 |
| 30 |
252-71 |
WASHER-THRUST Price: $14.39 |
| 31 |
105-1404 |
GASKET-GEAR BOX This part replaces 92-9839. Price: $20.87 |
| 32 |
256-32 |
BUSHING Price: $9.99 |
| 33 |
32120-72 |
RING-SNAP Price: $2.09 |
| 34 |
3-8664 |
WASHER-THRUST Price: $5.69 |
| 35 |
5-7170 |
GEAR Price: $84.26 |
| 36 |
252-77 |
THRUST-WASHER Price: $7.08 |
| 37 |
252-76 |
BEARING-THRUST Price: $20.99 |
| 38 |
252-78 |
WASHER-THRUST Price: $17.47 |
| 39 |
14-2449 |
RH BUSHING CASE ASM This part replaces 37-8850. Price: $100.42 |
| 40 |
32144-41 |
SCREW-TAPTITE Price: $4.79 |
| 41 |
20-3210 |
BUSHING-SPECIAL Price: $8.44 |
| 42 |
237-87 |
RING-QUAD Price: $6.79 |
| 43 |
3257-23 |
KEY-WOODRUFF Price: $6.79 |
| 44 |
5210 |
WASHER-SHIM Price: $1.36 |
