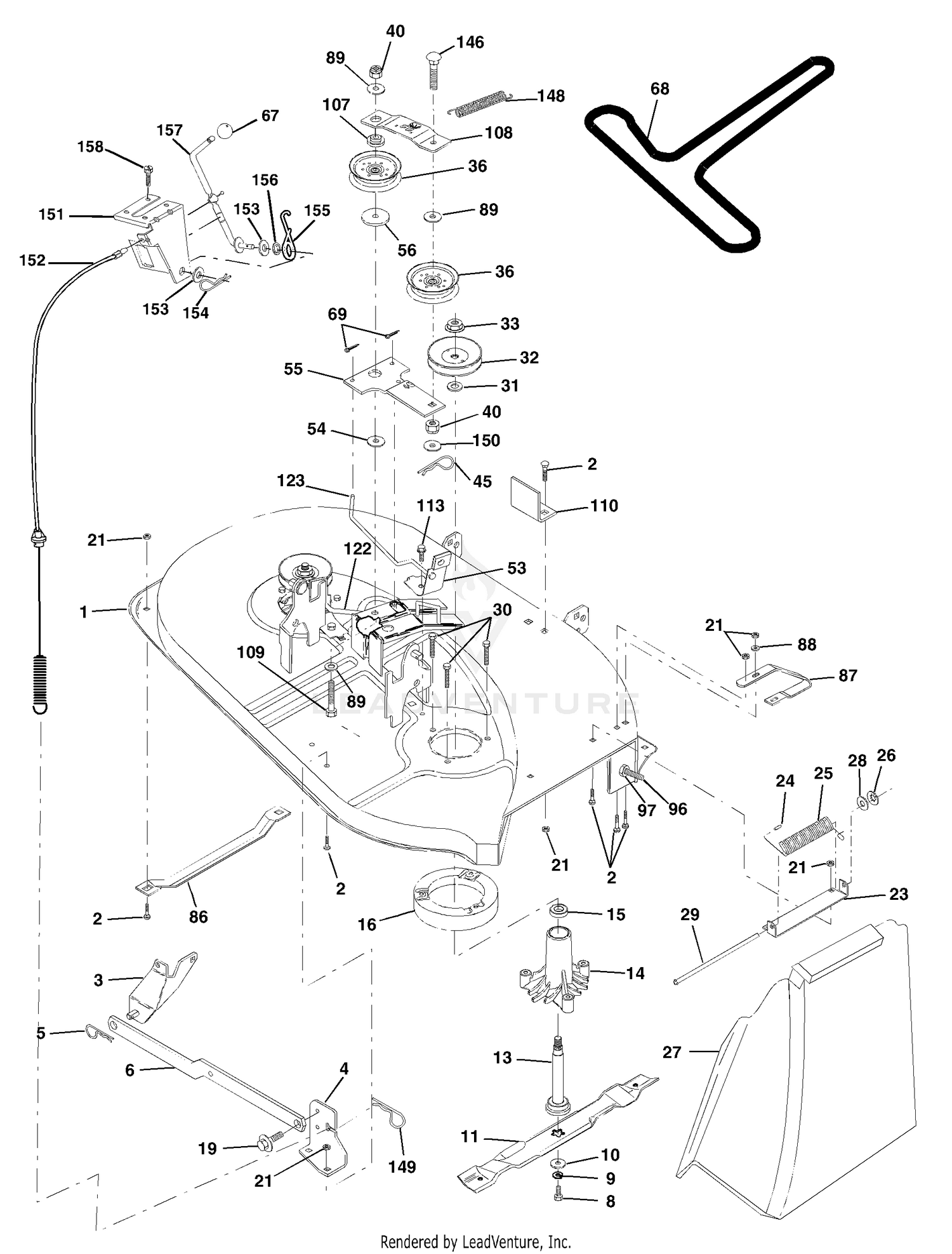

| Ref | Part Number | Description |
|---|
| 1 |
170280 |
Mower Housing Assembly Price: Call Us |
| 2 |
72140506 |
Bolt, Carriage 5/16-18 x 3/4 Price: Call Us |
| 3 |
138017 |
Bracket Asm. Fram Sway Bar Price: Call Us |
| 4 |
169970 |
Bracket, Asm. Deck Sway Bar Price: Call Us |
| 5 |
4939M |
Retainer, Spring Price: Call Us |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 8 |
850857 |
Bolt, Hex 3/8-24 x 1-1/4 Gr 8 Price: Call Us |
| 9 |
10030600 |
Washer, Lock, Hlcl Sprg 3/8 Price: Call Us |
| 010 |
115-4105 |
GEAR CASE ASM This part replaces 98-9481. Price: $560.23 |
| 10 |
140296 |
Washer, Hard Blade Mower Vented Price: Call Us |
| 11 |
134148 |
Blade, Mower, Mulching 38" Price: Call Us |
| 14 |
128774 |
Mandrel Housing, Vented Price: Call Us |
| 15 |
110485X |
Ball Bearing, Mandrel Price: Call Us |
| 16 |
174493 |
Stripper, Mower, Vented Price: Call Us |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 020 |
127-0425 |
PLUG This part replaces 98-9598. Price: $4.34 |
| 21 |
73680500 |
Nut, Crownlock 5/16-18 Price: Call Us |
| 23 |
137607 |
Bracket, Mower Deflector Price: Call Us |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 25 |
123713X |
Spring, Deflector Price: Call Us |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 27 |
106736X428 |
Shield, Deflector Price: Call Us |
| 28 |
19111016 |
Washer 11/32 x 3/4 x 16 Ga Price: Call Us |
| 29 |
106735X |
Rod, Hinge Price: Call Us |
| 030 |
98-7562 |
WASHER-PLAIN Price: $0.36 |
| 30 |
173984 |
Screw, Thdro Price: Call Us |
| 31 |
129963 |
Washer, Spacer Price: Call Us |
| 32 |
153532 |
Pulley, Mandrel Price: Call Us |
| 33 |
178342 |
Nut, Flangelock 9/16 Price: Call Us |
| 36 |
131494 |
Pulley, Idler, Flat Price: Call Us |
| 040 |
98-9388 |
JOINT-PIPE Price: $31.66 |
| 40 |
73680600 |
Nut Crownlock 3/8-16 Price: Call Us |
| 45 |
4497H |
Retainer, Spring Price: Call Us |
| 050 |
98-9544 |
SPRING Price: $0.94 |
| 53 |
130840 |
Brake Assembly Price: Call Us |
| 54 |
133943 |
Washer Hardened Price: Call Us |
| 55 |
133840 |
Idler Arm Assembly Price: Call Us |
| 56 |
165723 |
Spacer, Retainer Price: Call Us |
| 060 |
98-9543 |
SEAT-VALVE Price: $26.61 |
| 67 |
149846 |
Knob Price: Call Us |
| 68 |
144200 |
Belt Price: Call Us |
| 69 |
76020312 |
Pin, Cotter 3/32 x 3/4 Price: Call Us |
| 070 |
98-9380 |
BALL Price: $0.84 |
| 080 |
98-9540 |
OIL PUMP ROTOR ASM Price: $271.67 |
| 86 |
7631J |
Runner, LH Price: Call Us |
| 87 |
128772 |
Runner, RH Price: Call Us |
| 88 |
19111216 |
Washer 11/32 x 3/4 x 16 Ga Price: Call Us |
| 89 |
19131612 |
Washer 13/32 x 1 x 12 Ga Price: Call Us |
| 090 |
98-9541 |
COVER-PUMP, OIL Price: $222.71 |
| 96 |
74930620 |
Bolt 3/8-16 x 1-1/4 Price: Call Us |
| 97 |
73930600 |
Nut Centerlock 3/8-16 Price: Call Us |
| 100 |
98-9592 |
SCREW Price: $0.70 |
| 107 |
133502 |
Spacer, Retainer Price: Call Us |
| 108 |
133503 |
Stiffener, Idler Arm Price: Call Us |
| 109 |
74760640 |
Bolt, Hex Head 3/8-16 x2-1/2 Price: Call Us |
| 110 |
142587 |
Upstop Deck Front 38" Price: Call Us |
| 110 |
98-9633 |
GASKET-CASE, GEAR Price: $30.19 |
| 113 |
17060512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 120 |
100-1765 |
BOLT This part replaces 98-7496. Price: $1.59 |
| 122 |
131289 |
Rod, Brake, LH Price: Call Us |
| 123 |
169971 |
Rod, Brake, RH Price: Call Us |
| 130 |
105-3797 |
BOLT Price: $1.40 |
| 140 |
98-9356 |
BOLT Price: $2.06 |
| 146 |
165891 |
Bolt Carriage Idler Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Zinc Price: Call Us |
| 150 |
19091216 |
Washer 9/32 x 3/4 x 16 Ga. Price: Call Us |
| 150 |
98-9437 |
BOLT Price: $1.05 |
| 151 |
169670 |
Bracket Clutch Price: Call Us |
| 152 |
172758 |
Cable Clutch 38 In Price: Call Us |
| 153 |
169674 |
Washer Flat 3/8" Type B Price: Call Us |
| 154 |
169675 |
Spring Retainer Price: Call Us |
| 155 |
169671 |
Spring Retention Lever Price: Call Us |
| 156 |
169672 |
Spacer Price: Call Us |
| 157 |
169669 |
Rod Clutch Price: Call Us |
| 158 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 160 |
99-3510 |
BOLT This part replaces 98-9586. Price: $0.80 |
| 170 |
105-3709 |
STUD Price: $1.13 |
| 180 |
98-7572 |
NUT Price: $0.32 |
| 190 |
98-7699 |
WASHER-SPRING Price: $0.44 |
| 200 |
119-8038 |
SEAL-OIL This part replaces 98-9482. Price: $40.16 |
| 210 |
105-3781 |
O-RING Price: $3.47 |
| 220 |
105-3777 |
O-RING Price: $1.72 |
| 230 |
105-3710 |
STUD Price: $1.16 |
| 240 |
99-3515 |
PLUG-GEARCASE This part replaces 98-9641. Price: $9.00 |
| 250 |
108-3841 |
FILTER-OIL This part replaces 99-8384. Price: $10.81 |
| 260 |
99-3514 |
COVER Price: $11.33 |
| 270 |
98-9636 |
GASKET-PUMP, FUEL Price: $2.58 |
| 280 |
98-7572 |
NUT Price: $0.32 |
