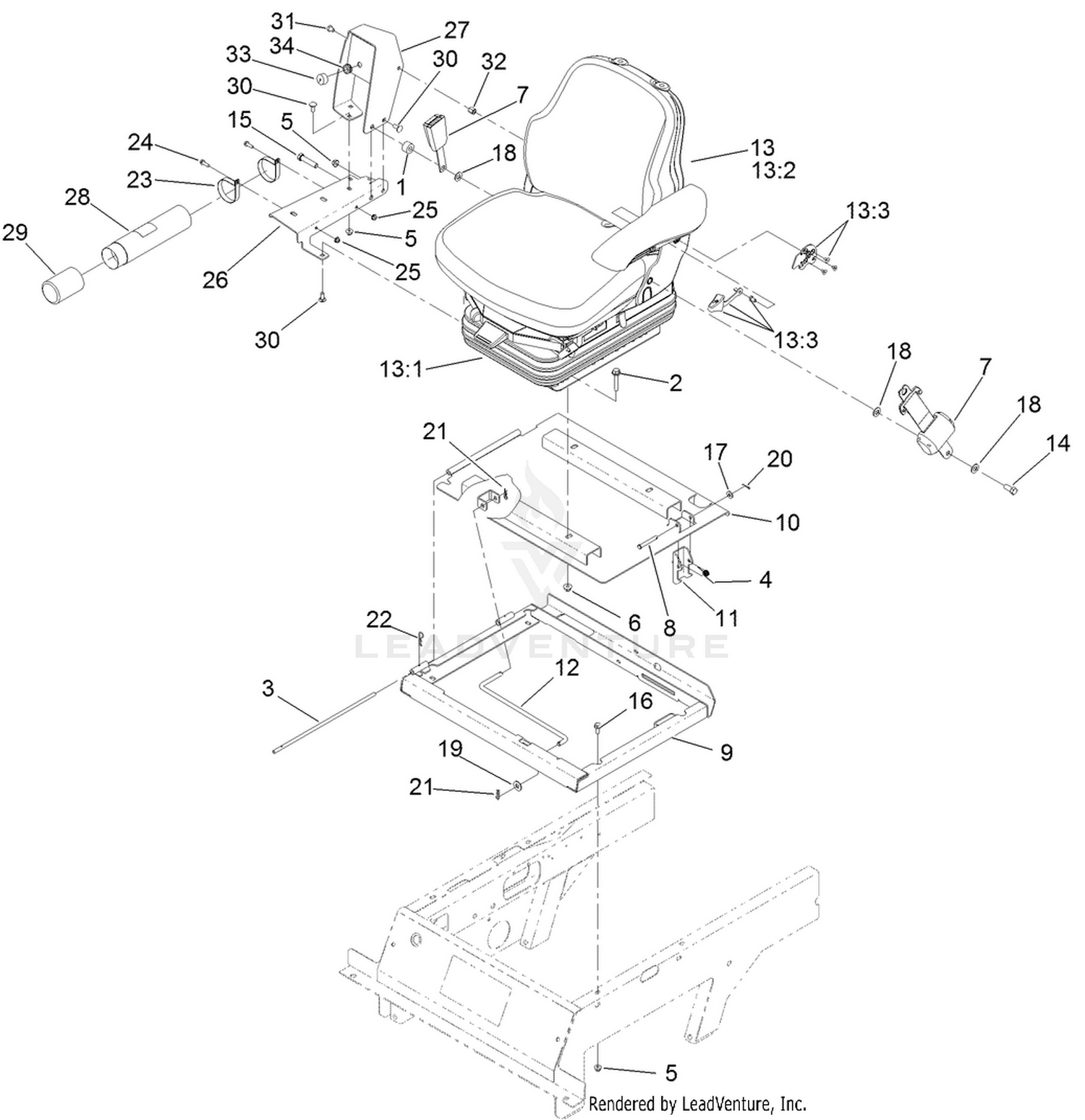

Seat Mount Assembly
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 17-7190 | SPACER-FINGER Price: $6.51 |
| 2 | 66-9302 | SCREW-HHF, WHIZ Price: $4.49 |
| 3 | 75-3400 | SHAFT-PIVOT, SEAT Price: $21.81 |
| 4 | 104-4821 | SPRING-TORSION Price: $6.26 |
| 5 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 6 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 7 | 110-0413 | SEATBELT-RETRACTABLE Price: $286.99 |
| 8 | 110-0618 | PIN-CLEVIS Price: $1.42 |
| 9 | 115-4400-03 | FRAME-SEAT Price: $374.32 |
| 10 | 115-4411-03 | PLATE-SEAT Price: $408.24 |
| 11 | 115-4423-03 | LATCH-SEAT PLATE Price: $22.94 |
| 12 | 117-4797-03 | ROD-SEAT FRAME Price: $27.46 |
| 13 | 130-2701 | SEAT AND SUSPENSION ASM Price: $3,063.06 |
| 14 | 3212-4 | SCREW-HH Price: $2.73 |
| 15 | 3212-8 | SCREW-HH Price: $5.69 |
| 16 | 3234-47 | SCREW-HHF Price: $1.79 |
| 17 | 3256-2 | WASHER-FLAT Price: $0.39 |
| 18 | 3256-25 | WASHER-FLAT Price: $0.25 |
| 19 | 3256-4 | WASHER-FLAT Price: $0.28 |
| 20 | 3272-6 | PIN-COTTER Price: $0.25 |
| 21 | 1-806003 | PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 22 | 3290-467 | PIN-HAIR Price: $0.27 |
| 23 | 107-1865 | R-Clamp Price: $6.86 |
| 24 | 32105-15 | SCREW-HWH Price: $1.79 |
| 25 | 104-7201 | NUT-HF Price: $0.69 |
| 26 | 130-1657-03 | CHANNEL-SUPPORT Price: $60.02 |
| 27 | 130-1650-03 | CONTROL PANEL ASM Price: $291.21 |
| 28 | 104-7050 | TUBE-MANUAL Price: $8.76 |
| 29 | 104-7048 | CAP-HOUSING Price: $5.21 |
| 30 | 3230-23 | SCREW-CARR Price: $0.89 |
| 31 | 108-8646 | SCREW-HH, LOCK Price: $2.85 |
| 32 | 112-7405 | NUT-HEX, COUPLING Price: $33.55 |
| 33 | 110-8911 | SEAL-FOAM Price: $1.69 |
