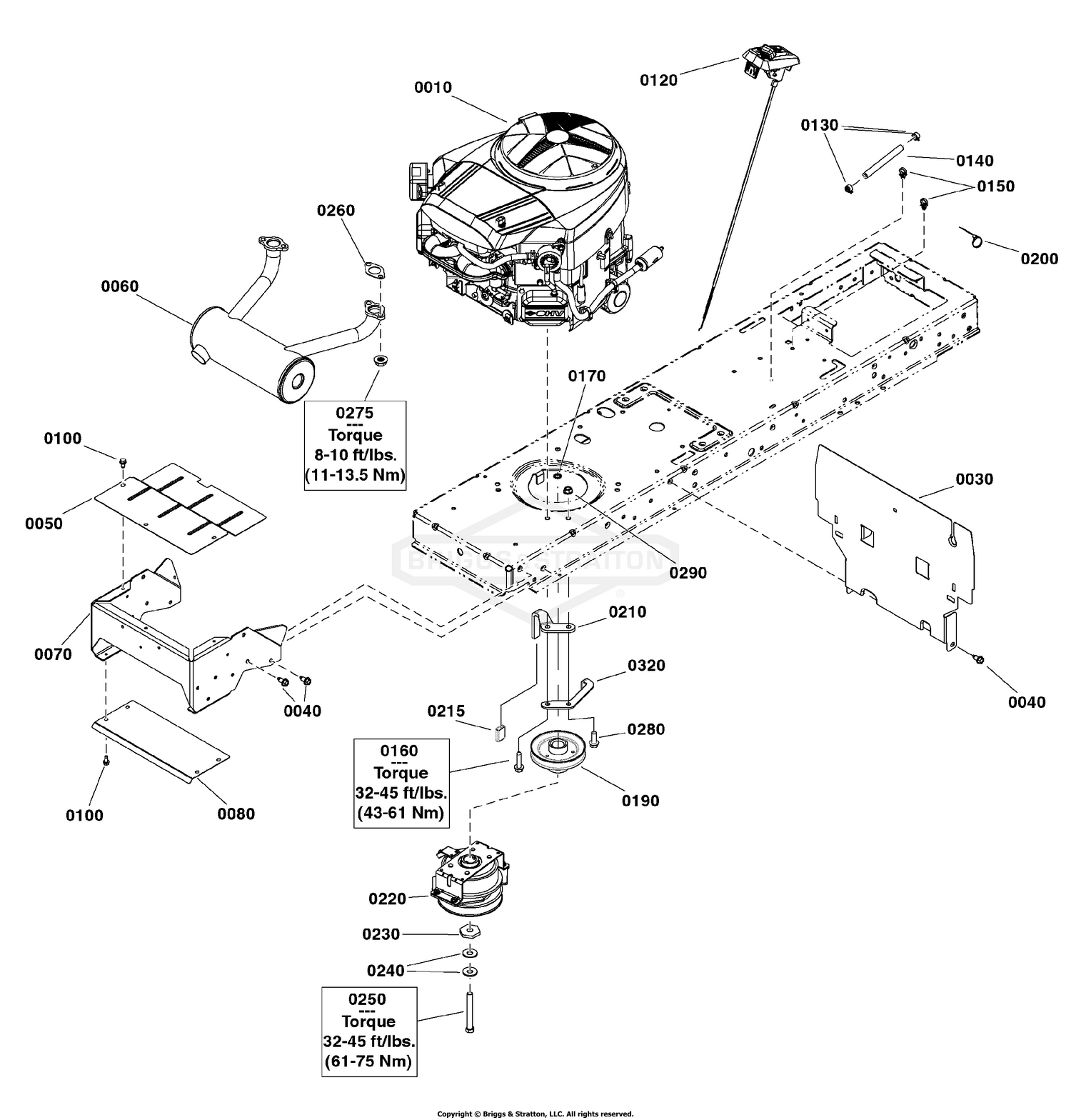

| Ref | Part Number | Description |
|---|
| 0030 |
1738380AYP |
HEAT SHIELD, Engine Price: $47.63 |
| 0040 |
703228 |
SCREW, 5/16-18 X .75 Price: $3.94 |
| 0050 |
1761064CJYP |
HEAT SHIELD Price: $27.77 |
| 0060 |
1761127YP |
MUFFLER, Twin Price: $180.95 |
| 0070 |
1761211CJYP |
Support, Muffler Price: $80.55 |
| 0080 |
1761063CJYP |
HEAT SHIELD, Bottom Price: $26.64 |
| 0100 |
704130 |
SCREW, HEX, 1/4-20X.5 Price: $3.28 |
| 0120 |
1759240YP |
THROTTLE Price: $61.24 |
| 0130 |
791850 |
CLAMP, Hose Price: $2.52 |
| 0140 |
845503 |
LINE-FUEL Price: $30.10 |
| 0150 |
1730268SM |
CLIP, Hose, 1/2 Dia., Push In Price: $3.37 |
| 0160 |
704010 |
SCREW, HEX, 3/8-16 Price: $4.25 |
| 0170 |
703864 |
WASHER, EXT, 3/8 Price: $3.82 |
| 0190 |
1732576SM |
PULLEY & HUB ASSEMBLY, Engine Price: $39.11 |
| 0200 |
703586 |
TIE, SELF LOCKING Price: $4.05 |
| 0210 |
1760323CJYP |
CLUTCH, Anchor Price: $25.50 |
| 0215 |
84002544 |
Sleeve, Clutch Anchor Price: $3.28 |
| 0230 |
1708264SM |
WASHER, HEX, 0.453ID Price: $7.67 |
| 0240 |
1960769YP |
WASHER, Belleville Price: $4.49 |
| 0250 |
771023 |
CAPSCREW, Hex Head, Loctite, 7/16-20 x 3 1/2 Price: $6.02 |
| 0260 |
690970 |
GASKET, Exhaust Price: $4.13 |
| 0275 |
690941 |
NUT Price: $4.03 |
| 0280 |
704038 |
SCREW Price: $5.26 |
| 0290 |
703333 |
NUT, 3/8-16 Price: $4.26 |
