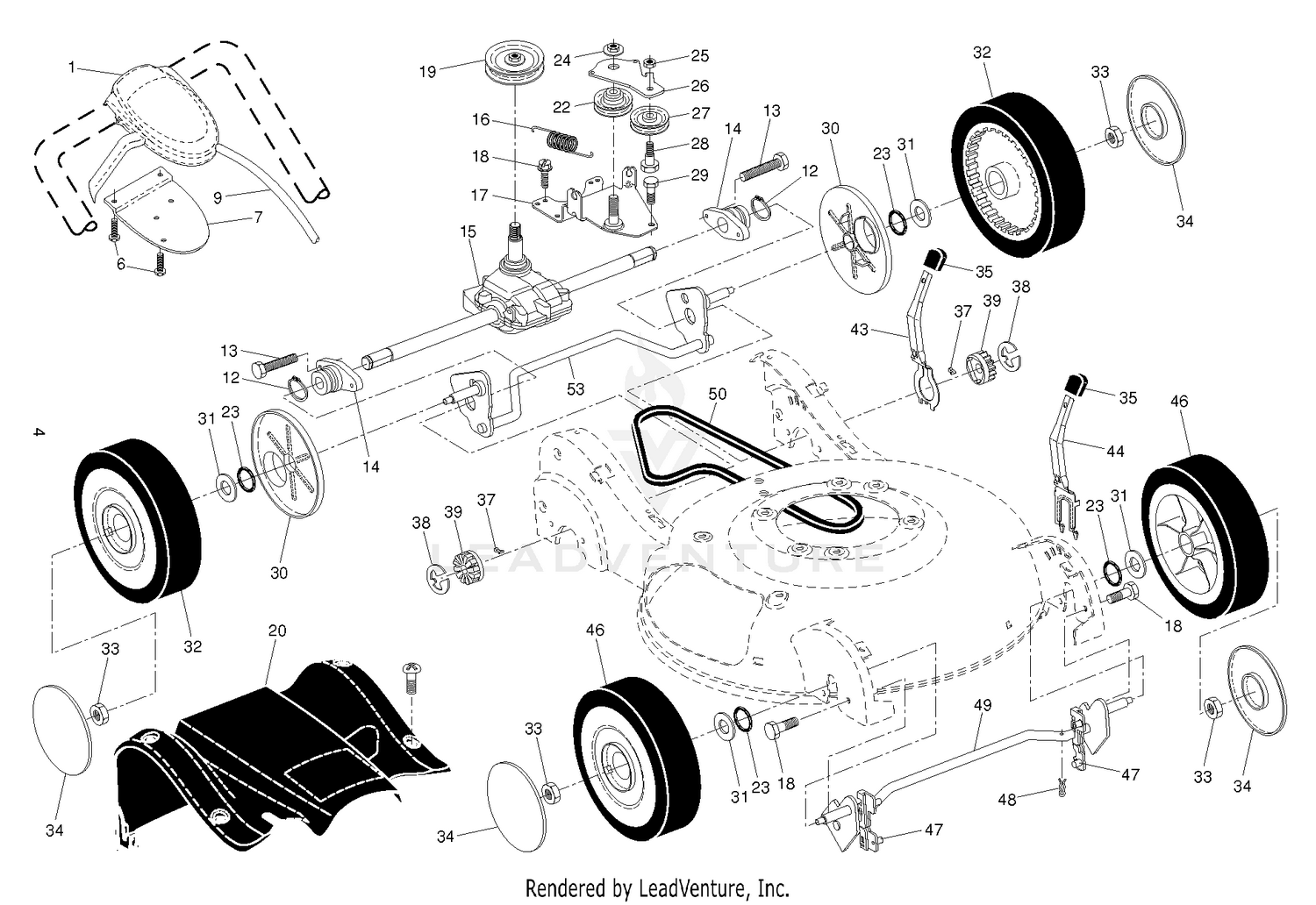

| Ref | Part Number | Description |
|---|
| 1 |
532425665 |
Drive Control Assembly, Complete Price: Call Us |
| 1 |
93-6880 |
SEE PB #941 Price: Call Us |
| 2 |
93-6881 |
RIM ASM Price: $152.01 |
| 3 |
340-6 |
FITTING-STRAIGHT Price: $18.79 |
| 4 |
26-3790 |
NUT-LOCK Price: $24.46 |
| 5 |
10-6870-03 |
HUB-WHEEL This part replaces 10-6870. Price: $150.01 |
| 6 |
111512 |
DISCONTINUED This part replaces 10-6830. Price: Call Us |
| 6 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 7 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 7 |
532400723 |
BRACKET.DRIVE.CONTROL.MOUNT.BL Price: $4.99 |
| 8 |
75-9990 |
HYD MOTOR ASM Price: $831.33 |
| 9 |
532197011 |
ASM.CABLE. Price: $37.99 |
| 9 |
93-6782-01 |
FORK-WHEEL, REAR This part replaces 93-6782. Price: $916.89 |
| 10 |
3274-93 |
SCREW-HSH Price: $3.39 |
| 11 |
3220-3 |
NUT-HJ Price: $0.28 |
| 12 |
3220-12 |
NUT-HEX JAM LH Price: $1.83 |
| 12 |
583607301 |
RING.RETAINING. This part replaces 812000012. Price: $2.99 |
| 13 |
21-0141 |
RH BALL JOINT ASM Price: $109.12 |
| 13 |
532194186 |
SCREW.1/4-20X21/4.HEX. Price: $3.99 |
| 14 |
322-9 |
SCREW-HH Price: $3.09 |
| 14 |
532408027 |
BEARING / AXLE SUPPORT Price: $14.99 |
| 15 |
3255-2 |
WASHER-LOCK, EXT Price: $0.95 |
| 15 |
532419211 |
TRANSMISSION.21.HV.RWGD.AW/EZ Price: $89.99 |
| 16 |
532406558 |
SPRING Price: $6.99 |
| 16 |
75-7730 |
WASHER-THRUST Price: $2.88 |
| 17 |
325-6 |
SCREW-HH Price: $1.42 |
| 17 |
532408005 |
BRACKET, GEAR CASE / DRIVE Price: $12.99 |
| 18 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 18 |
532163409 |
SCREW Price: $3.99 |
| 19 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 19 |
532443262 |
RP PULLEY.DRIVE.EZ/VAR.SCREWON Price: $9.99 |
| 20 |
69-9760 |
COVERPLATE Price: $5.38 |
| 21 |
56-7976 |
CLAMP-TUBE Price: $2.44 |
| 22 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 22 |
532193791 |
PULLEY.IDLER.V-BELT Price: $12.99 |
| 23 |
3257-42 |
KEY-WOODRUFF Price: $5.99 |
| 23 |
532197480 |
O-RING..070X.487.NEOPRENE Price: $3.99 |
| 24 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 24 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT Price: $3.99 |
| 25 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 25 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 26 |
532416736 |
ARM.IDLER.BZP Price: $3.99 |
| 26 |
93-6843 |
HYD HOSE ASM Price: $194.30 |
| 27 |
532166043 |
IDLER PULLEY Price: $27.99 |
| 27 |
61-2070-03 |
TUBE-STEERING This part replaces 61-2070. Price: $89.00 |
| 28 |
237-30 |
O-RING Price: $2.50 |
| 28 |
532160829 |
SHOULDER BOLT Price: $4.99 |
| 29 |
817060410 |
SCREW 14-20 X 5/8 Price: $3.99 |
| 30 |
532183457 |
DUST COVER, WHEEL Price: $4.99 |
| 31 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 32 |
532192622 |
WHEEL.9X2.25.LP.TIGER.BLACK Price: $69.99 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 34 |
532183442 |
HUBCAP.WHEEL.5.SPOKE.SILVER Price: $4.99 |
| 35 |
532425242 |
KNOB.SELECTOR.SPRING.BLACK(3 2 Price: $4.99 |
| 37 |
532404845 |
PAWL, DRIVE Price: $4.99 |
| 38 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 39 |
532403849 |
PINION.14.TEETH.FGD Price: $5.99 |
| 43 |
532188508 |
LEVER, SELECTOR, HEIGHT, REAR This part replaces 532190520. Price: $7.99 |
| 44 |
532188509 |
SPRING.SELECTOR.FRONT This part replaces 532190518. Price: $5.99 |
| 46 |
532192232 |
WHEEL.9X2.25.LP.TIGER.BLK Price: $43.99 |
| 47 |
532183438 |
BUSHING.FRONT.TORQUE.SHAFT Price: $5.99 |
| 48 |
532169675 |
SPRING RETAINER Price: $4.99 |
| 49 |
532192431 |
SHAFT.ASM.FRONT.TORQUE This part replaces 532196469. Price: $37.99 |
| 50 |
532408031 |
BELT, DRIVE Price: $12.99 |
