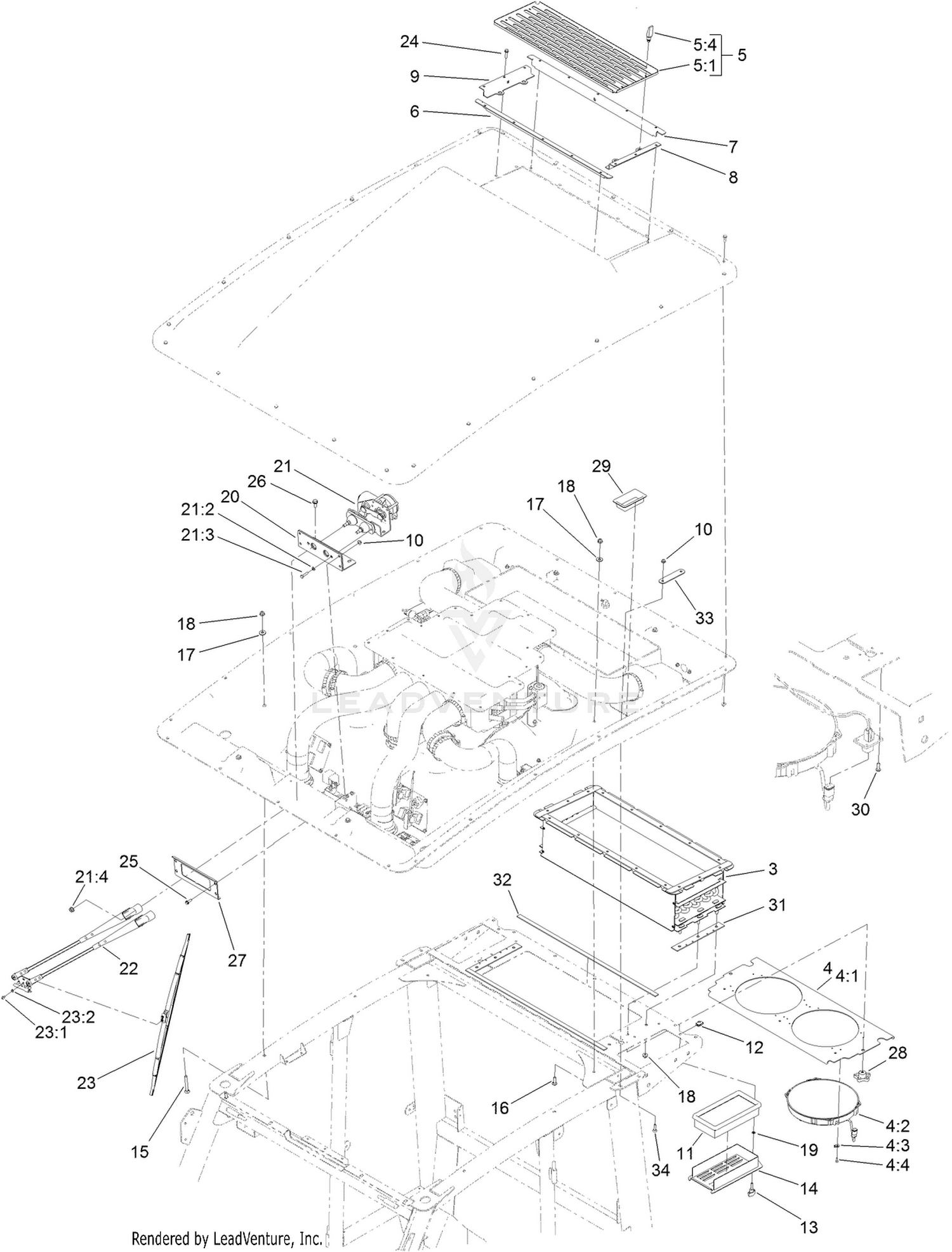

Windshield Wiper and Condenser Core Assembly
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 132-3468 | DUCT-A/C Price: $1,135.16 |
| 4 | 132-3488 | PANEL-FAN Price: $664.03 |
| 6 | 132-3531-03 | SEAL-FRONT Price: $33.28 |
| 7 | 132-3532-03 | SEAL-REAR Price: $27.57 |
| 8 | 132-3533-03 | SEAL-SIDE, LEFT Price: $25.48 |
| 9 | 132-3534-03 | SEAL-SIDE, RIGHT Price: $31.14 |
| 10 | 104-7201 | NUT-HF Price: $0.69 |
| 11 | 121-8457 | FILTER-AIR Price: $34.12 |
| 12 | 107069 | CLIP Price: $1.79 |
| 13 | 126-5846 | KNOB-T Price: $9.75 |
| 14 | 125-9825-03 | COVER-AIR, FRESH Price: $80.77 |
| 15 | 3230-9 | SCREW-CARR Price: $0.68 |
| 16 | 3230-22 | SCREW-CARR Price: $1.99 |
| 17 | 3256-3 | WASHER-FLAT Price: $0.49 |
| 18 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 19 | 32115-15 | PUSHNUT-RETAINER, BOLT This part replaces 106-8737. Price: $0.99 |
| 20 | 130-5871 | BRACKET-WIPER Price: $42.69 |
| 21 | 125-7452 | WIPER MOTOR ASM Price: $435.07 |
| 22 | 125-7453 | ARM-WIPER Price: $121.52 |
| 23 | 125-7454 | BLADE-WIPER Price: $49.61 |
| 24 | 120-4654 | SCREW-HHF Price: $0.34 |
| 25 | 32105-15 | SCREW-HWH Price: $1.79 |
| 26 | 32144-11 | SCREW-THD ROLL, HWH Price: $6.99 |
| 27 | 130-6068-03 | PLATE-WASHER, WIPER MOTOR Price: $24.92 |
| 28 | 117-5976 | KNOB-HANDLE Price: $2.17 |
| 29 | 130-5661 | TUBE-SLEEVE Price: $37.14 |
| 30 | 363-8245 | SCREW-TAP Price: $0.66 |
| 31 | 132-3608 | SEAL-EDGE Price: $2.50 |
| 32 | 132-3609 | SEAL-STRIP Price: $4.11 |
| 33 | 130-5854 | BRACE-SEAL Price: $4.07 |
