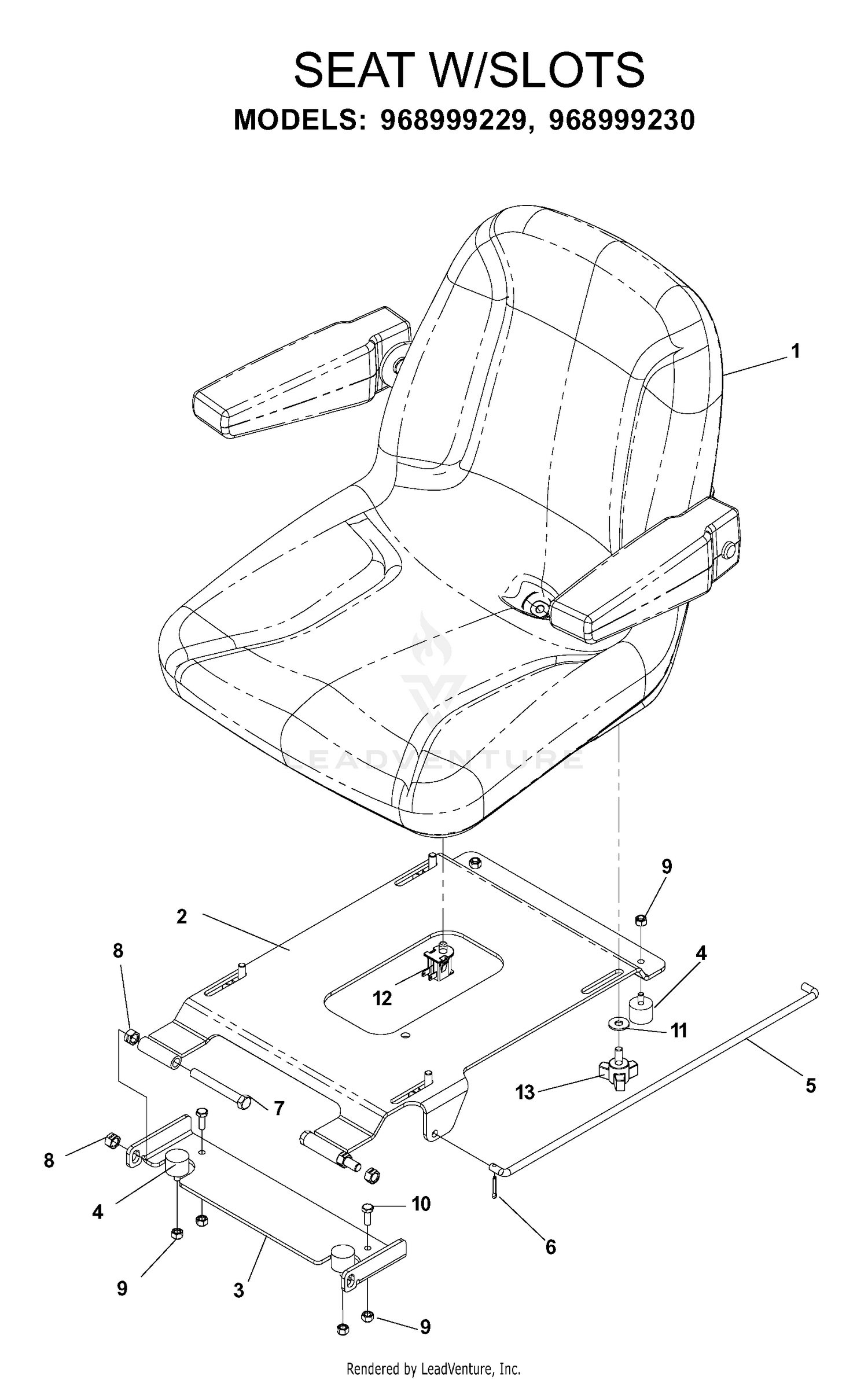

| Ref | Part Number | Description |
|---|
| 1 |
539108744 |
SEAT W/ARMRESTS Price: $349.99 |
| 2 |
105-3992-03 |
BRACKET-BULKHEAD Price: $45.94 |
| 2 |
539108613 |
SEAT PAN WLDMT Price: $72.99 |
| 3 |
539105224 |
SEAT BRKT W/DECAL Price: $24.99 |
| 4 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 4 |
539105039 |
STUD/PLATE MOUNT Price: $4.99 |
| 5 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 5 |
539104525 |
SEAT ROD Price: $9.99 |
| 6 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 6 |
596029501 |
Pins This part replaces 539990365. Price: $2.99 |
| 7 |
140-6431 |
PIVOT PIN ASM This part replaces 95-7158. Price: $37.92 |
| 7 |
539101341 |
HCS 3/8C X 3 Price: $4.99 |
| 8 |
595305901 |
Nuts This part replaces 539990546. Price: $2.99 |
| 8 |
87-3470 |
BUMPER Price: $18.89 |
| 9 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 9 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 10 |
596230901 |
Screws This part replaces 539990580. Price: $2.99 |
| 10 |
63-7400 |
WASHER-REBOUND Price: $1.70 |
| 11 |
105-9827 |
SHAFT Price: $77.02 |
| 12 |
136-3385 |
NO.2 LIFTARM ASM This part replaces 105-9202. Price: $800.50 |
| 12 |
539107523 |
SEAT SWITCH Price: $8.99 |
| 13 |
136-3387 |
NO. 3 LIFTARM ASM This part replaces 105-9203. Price: $800.50 |
| 13 |
597783101 |
GSPW Knobs This part replaces 539104411. Price: $3.99 |
| 14 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 15 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 16 |
127-6428 |
LIFT CYLINDER ASM Price: $655.93 |
| 17 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 18 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 19 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 20 |
92-7548 |
PIN-CYLINDER Price: $16.62 |
| 21 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 23 |
131-4201 |
PIN-PIVOT Price: $20.50 |
| 24 |
323-7 |
SCREW-HH Price: $0.65 |
| 25 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 26 |
323-4 |
SCREW-HH Price: $1.02 |
| 27 |
105-9839 |
STOP-ROTATION, NO. 2 AND 3 Price: $67.21 |
| 28 |
3245-1 |
SCREW-SET, HSH Price: $0.54 |
| 29 |
131-7765-0P |
SUPPORT-BUMPER, REAR This part replaces 131-7765-03. Price: $77.14 |
| 30 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 31 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 33 |
136-3510 |
CARRIER FRAME ASM This part replaces 115-3453. Price: $664.28 |
| 34 |
112-9900-03 |
GUARD-FOOT Price: $82.81 |
| 35 |
323-52 |
SCREW-HH Price: $3.63 |
| 36 |
93-8806 |
WASHER-HARDENED Price: $1.62 |
| 37 |
105-9823 |
BUSHING-CARRIER Price: $5.52 |
| 38 |
105-9822 |
SPACER Price: $3.16 |
| 539104392 |
539104392 |
SEAT HARNESS Price: $14.99 |
| 539976856 |
539976856 |
TIE, PLASTIC Price: $4.99 |
