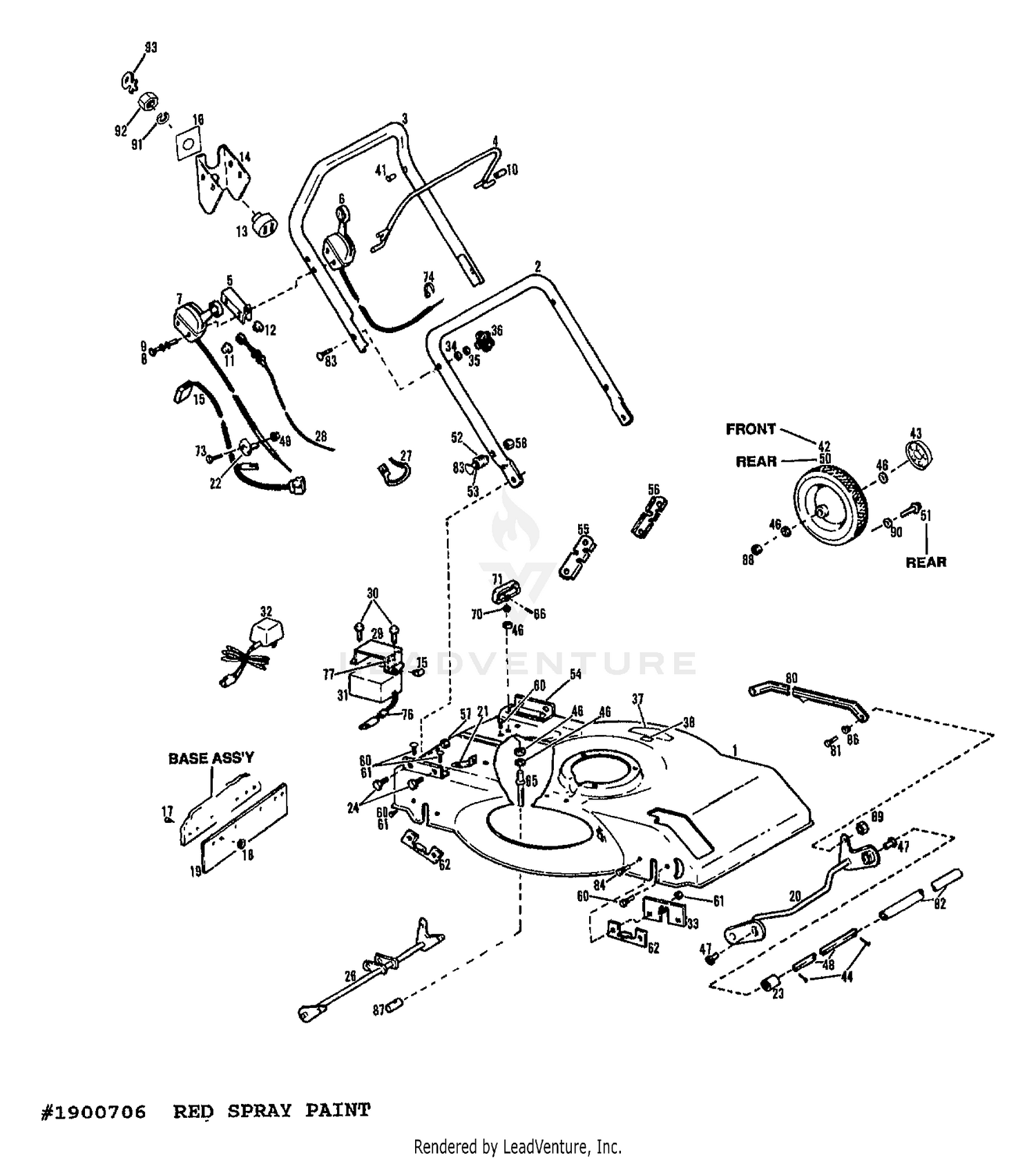

| Ref | Part Number | Description |
|---|
| 2 |
1761103001 |
LOWER HANDLE Not Available Price: |
| 3 |
1761100001 |
UPPER HANDLE Not Available Price: |
| 4 |
1761104001 |
ASSEMBLY BAIL ENGINE C Not Available Price: |
| 5 |
1756147001 |
SUPPORT-CONTROL Not Available Price: |
| 6 |
1761099 |
THROTTLE CONTROL Not Available Price: |
| 7 |
1769342P |
CONTROL-CLUTCH Not Available This part replaces 1761098. Price: |
| 8 |
1756148 |
SCR HH SEM Not Available Price: |
| 8 |
1756179 |
SCR HHS Not Available Price: |
| 9 |
712-0272 |
Hex Sems Nut 010-24 Thd. This part replaces 1185985. Price: $3.58 |
| 10 |
1751526 |
GRIP-HANDLE Not Available Price: |
| 11 |
726-0135 |
PUSH NUT This part replaces 1727342. Price: $5.94 |
| 12 |
1747236 |
RING-GRIP Not Available Price: |
| 13 |
1900455P |
SWITCH Not Available This part replaces 1723798. Price: |
| 14 |
1756178001 |
SUPPORT-SWITCH Not Available Price: |
| 15 |
1761634 |
WIRE HARNE Not Available Price: |
| 16 |
1756233 |
DECAL-ELEC START Not Available Price: |
| 17 |
1739918 |
POP RIVET Not Available Price: |
| 18 |
1736359 |
WASHER-.88X.2X.059 Not Available Price: |
| 19 |
1755562 |
SHIELD-DEF Not Available Price: |
| 20 |
N/A |
FRONT AXLE ASSEMBLY |
| 21 |
N/A |
CLUTCH CABLE BRACKET |
| 22 |
1759076 |
CLAMP-POWD Not Available Price: |
| 23 |
1764050 |
BUSHING-AX Not Available Price: |
| 24 |
710-0216 |
HEX SCREW 3/8-16 X .75 This part replaces 1100068. Price: $3.93 |
| 26 |
1762885001 |
REAR AXLE ASSEMBLY Not Available Price: |
| 28 |
1761097 |
CABLE-ENGINE BRAKE Not Available Price: |
| 29 |
1756551001 |
CLAMP-BATTERY Not Available Price: |
| 30 |
1754128 |
SCR-FLANGE 1/4-20X3/4 GR5 Not Available Price: |
| 31 |
1903686 |
BATTERY REPLACEMENT KIT Not Available This part replaces 1756550. Price: |
| 32 |
1733251 |
CHARGER-ELEC BATTERY {8656R} Price: Call Us |
| 33 |
1761028 |
PLATE-DOUB Not Available Price: |
| 34 |
936-0119 |
LOCK WASHER 5/16 This part replaces 1100242. Price: $4.29 |
| 35 |
736-0275 |
FLAT WASHER This part replaces 1107382. Price: $5.99 |
| 36 |
1763767 |
KNOB Not Available Price: |
| 37 |
1739687 |
DECAL-OPEI CAUTION {8656R} Price: $6.36 |
| 38 |
1761554 |
DECAL-INDICATOR Not Available Price: |
| 41 |
1747499 |
BEARING-FL Not Available Price: |
| 42 |
1762021 |
ASSM-FRONT Not Available Price: |
| 43 |
1762241 |
CAP-HUB T/B MULCHERS Price: Call Us |
| 44 |
714-0474 |
Cotter Pin This part replaces 1100349. Price: $4.08 |
| 46 |
GW-20546 |
WASHER Not Available This part replaces 1890234. Price: |
| 47 |
1760842 |
AXLE BEARING Not Available Price: |
| 49 |
1186387 |
NUT-HFLK 10-24 Not Available Price: |
| 50 |
1761981 |
ASSEMBLY-REAR T Not Available Price: |
| 51 |
1763219 |
SCR-SHLDR 3/8-16 Price: $8.93 |
| 52 |
1755406 |
COMPRESSION SPRING Not Available Price: |
| 53 |
1755407 |
SPACER Not Available Price: |
| 54 |
1755402001 |
BRACKET-HANDLEBAR Not Available Price: |
| 55 |
1755403001 |
SUPPORT-HANDLE (RH) Not Available Price: |
| 56 |
1755404001 |
SUPPORT-HAND L/H Not Available Price: |
| 57 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 1733398. Price: $3.90 |
| 58 |
1744708 |
HEX LOCK NUT Not Available Price: |
| 60 |
710-0260A |
Carriage Bolt, 5/16-18 x .62 This part replaces 1186097. Price: $3.71 |
| 61 |
712-04054 |
NUT-HFLK 5/16-18 ZP This part replaces 1186391. Price: $3.95 |
| 62 |
1743277 |
AXLE BRACKET Not Available Price: |
| 65 |
1762881 |
SCR-ADJ Price: Call Us |
| 66 |
1120210 |
DRIVE PIN, 3/16 x 1 Not Available Price: |
| 70 |
1762886 |
SPACER-HANDLE Not Available Price: |
| 71 |
1754149 |
HANDLE-HEIGHT ADJ Not Available Price: |
| 73 |
1752461 |
SCR-HW M10-24X.88 EXTTOOTH Price: $4.05 |
| 75 |
1740012 |
WIRE CLAMP Not Available Price: |
| 76 |
1756582 |
TAG-CHARGI Not Available Price: |
| 77 |
1756549 |
PAD-BATTERY Not Available Price: |
| 80 |
1761027001 |
LINK-HEIGHT ADJUST Not Available Price: |
| 81 |
1760971 |
SCR-SHOULD Not Available Price: |
| 82 |
1736069 |
TUBING-PLASTIC Price: Call Us |
| 83 |
710-1174 |
SCREW 5/16-18 x 2.0 This part replaces 1731025. Price: $6.28 |
| 84 |
1185872 |
SCR-TRUSS Not Available Price: |
| 86 |
1761046 |
BEARING-NY Not Available Price: |
| 87 |
1762882 |
PIVOT SCRE Not Available Price: |
| 88 |
1186393 |
NUT-HFLK 3/8-16 ZP Price: $2.63 |
| 89 |
N/A |
NUT, HEX JAM 5/16-18 |
| 90 |
936-0206 |
Washer, Spec .378 x 1.0 x .125 Thk This part replaces 1891733. Price: $3.93 |
| 91 |
736-0225 |
Lock Washer Internal .625 x 1.058 This part replaces 1767140. Price: $3.90 |
| 92 |
712-0252 |
Hex Nut 5/8-32 x .12 Special This part replaces 1767139. Price: $5.15 |
| 93 |
1753986 |
IGNITION KEY Not Available Price: |
