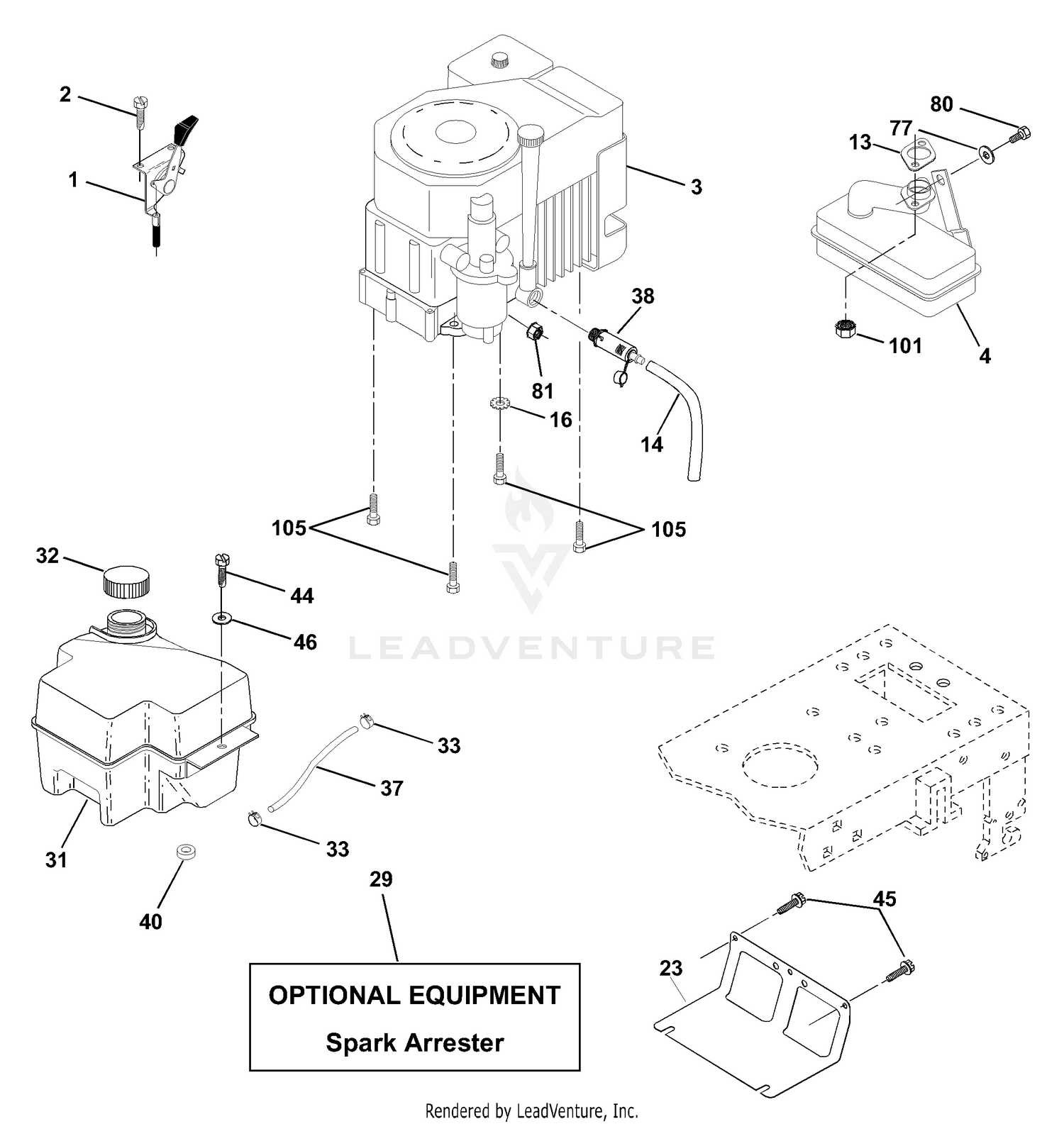

Engine

Engine

Parts (24)

RefPart NumberDescription
1 170805 Control Th/ch Flag Price: Call Us
2 17720410 Screw Hex Thd Cut 1/4-20x5/8 T Price: Call Us
4 159420 Muffler Exhaust Price: Call Us
13 12-041-03 Gasket Muffler Price: Call Us
14 148456 Tube Drain Oil Easy Price: Call Us
16 11050600 Washer Lock Ext Tooth 3/8 Price: Call Us
23 169837 Shield Brn/Dbr Guard Price: Call Us
29 137180 Arrestor Spark Price: Call Us
31 174642 Tank Fuel Front 2 00 Price: Call Us
32 140527 Cap Fuel Price: Call Us
33 123487X Clamp Hose Black Price: Call Us
37 137040 Line Fuel 20" Price: Call Us
38 148315 Plug Drain Oil Easy Price: Call Us
40 124028X Bushing Snap Nyl Blk Fuel Line Price: Call Us
44 17670412 Screw Hex wsh Thdrol 1/4-20x3/4 Price: Call Us
45 17000612 Screw Hex Wsh Thdrol 3/8-16 x 3/4 Price: Call Us
46 19091416 Washer 9/32 X 7/8 X 16 Ga Price: Call Us
62 10040500 Washer Lock Hvy Hlcl Spr 5/16 Price: Call Us
72 71070512 Screw Hex Hd Cap 5/16-18 x 3/4 Price: Call Us
77 19101216 Washer 5/16 x 3/4 x 16 Ga. Price: Call Us
78 17060620 Screw 3/8-16 x 1-1/4 Price: Call Us
80 74760508 Bolt Hex Hd. 5/16-18 Unc x 1/2 Price: Call Us
81 73510400 Nut Keps Hex 1/4-20 Unc Price: Call Us
101 M73030800 Nut Flange Price: Call Us
