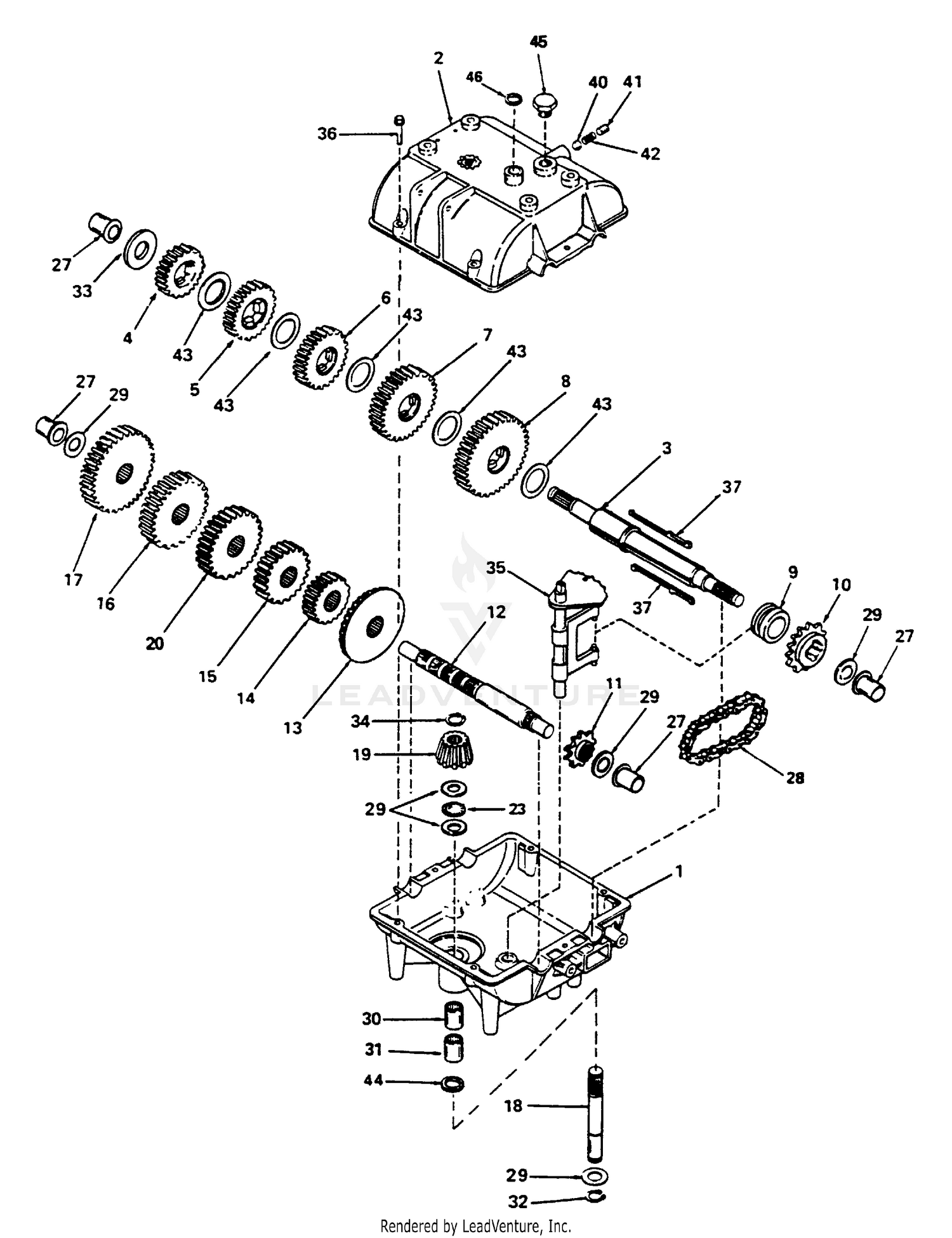

Transmission
Parts (72)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 539102075 | TRANSMISSION CASE Price: $119.60 |
| 2 | 539100371 | TRANSMISSION COVER Price: $83.34 |
| 2 | 89BM-6049-HB | Asm-Cylinder Head Price: Call Us |
| 3 | 539102179 | OUTPUT & BRAKE SHAFT Price: $24.99 |
| 3 | 89BM-6065-DA | Bolt-Cylinder Head Price: Call Us |
| 4 | 539102077 | SPUR GEAR (27 TEETH) Price: $71.69 |
| 4 | E630024-S201 | Washer-Flat Price: Call Us |
| 5 | 539100377 | SPUR GEAR (30 TEETH) Price: $43.35 |
| 5 | E800516-S72 | Screw-Rocker Cover Price: Call Us |
| 6 | 539102078 | SPUR GEAR (32 TEETH) Price: $78.05 |
| 6 | 84BF-6K614-CA | Cap-Oil Fill Price: Call Us |
| 7 | 539100376 | SPUR GEAR (35 TEETH) Price: $53.70 |
| 7 | E9JL-6K609-AA | Hose-PCV Price: Call Us |
| 8 | 539102079 | SPUR GEAR (37 TEETH) Price: $103.11 |
| 8 | 91BM-6582-GA | Cover-RockerArm Price: Call Us |
| 9 | 539977561 | SHIFT COLLAR Price: $14.97 |
| 9 | 77BM-6584-CA | Gasket-Cover Price: Call Us |
| 10 | 539977562 | SPROCKET (18 TEETH) Price: $25.44 |
| 10 | 88WM-6518-AA | Lock-Valve, Spring Price: Call Us |
| 11 | 539977563 | SPROCKET (9 TEETH) Price: $24.99 |
| 11 | 89BM-6A536-AA | Retainer Price: Call Us |
| 12 | 539977564 | COUNTERSHAFT Price: $120.63 |
| 12 | 89BM-6513-AA | Spring-Valve Price: Call Us |
| 13 | 539977565 | GEAR, BEVEL (42 TEETH) Price: $128.05 |
| 13 | 88WM-6571-BB | Seal-Valve Stem Price: Call Us |
| 14 | 539102080 | SPUR GEAR (12 TEETH) Price: $28.95 |
| 14 | DORY-6026-A | Plug Price: Call Us |
| 15 | 539102081 | SPUR GEAR (15 TEETH) Price: $28.97 |
| 15 | 89BM-6051-B2C | Gasket-Cylinder Head Price: Call Us |
| 16 | 539100382 | SPUR GEAR (20 TEETH) Price: $70.31 |
| 16 | 89BM-6507-AA | Valve-Intake-Std Price: Call Us |
| 17 | 539102082 | SPUR GEAR (23 TEETH) Price: $99.26 |
| 18 | 539977571 | INPUT SHAFT Price: $49.99 |
| 18 | E7RZ-9278-A | Switch-Oil Pressure Price: Call Us |
| 19 | 539100372 | INPUT BEVEL PINION Price: $56.10 |
| 19 | D8RZ-6767-A | Adapter Price: Call Us |
| 20 | 539102083 | SPUR GEAR (18 TEETH) Price: $87.24 |
| 20 | E890100-S | Plug-Bali-Oil Gallery Price: Call Us |
| 21 | D8RZ-6026-A | Plug Price: Call Us |
| 22 | F1ZZ-6026-A | Plug Price: Call Us |
| 23 | 539100374 | THRUST BEARING Price: $11.66 |
| 23 | D1FZ-6345-A | Bolt-Bearing Cap Price: Call Us |
| 24 | E802666-S72 | Screw Price: Call Us |
| 25 | 89BF-66315-AB | Transducer Price: Call Us |
| 26 | 353055-S7 | Plug Price: Call Us |
| 27 | 539977573 | BUSHING, FLANGED Price: $14.99 |
| 27 | DORY-6026-A | Plug Price: Call Us |
| 28 | 539977574 | CHAIN, ROLLER #41 24 LINK Price: $35.98 |
| 28 | D8RZ-6020-A | Gasket-Front Cover Price: Call Us |
| 29 | 539977575 | THRUST WASHER Price: $2.99 |
| 29 | 83BM-6700-A4A | Seal-Front Cover Price: Call Us |
| 30 | 539977592 | NEEDLE BEARING Price: $69.99 |
| 30 | E800518-S72 | Bolt Price: Call Us |
| 31 | 539977576 | NEEDLE BEARING Price: $74.99 |
| 31 | E600113-S72 | Bolt Price: Call Us |
| 32 | 539977577 | RETAINING RING Price: $2.26 |
| 32 | E800512-S72 | Bolt Price: Call Us |
| 33 | 539102084 | WASHER, THRUST Price: $2.64 |
| 33 | E832108-S71M | Lockwasher Price: Call Us |
| 34 | 539977579 | RETAINING RING Price: $2.99 |
| 34 | 89BM-6019-AA | Cover Seal Assembly (Incl. Ref. #29) Price: Call Us |
| 35 | 539102180 | SHIFT ROD & FORK Price: $32.34 |
| 35 | E840126S | Dowel Price: Call Us |
| 36 | 539977581 | W-FLANGED HEX HD THREADFOR Price: $4.69 |
| 36 | 89BM-6505-EA | Valve-Exhaust .040mm 0.S. Price: Call Us |
| 37 | 977582 | KEY Price: Call Us |
| 40 | 977583 | STEEL BALL, 5/16" Price: Call Us |
| 41 | 977584 | SET SCREW, 3/8-16 X 3/8" Price: Call Us |
| 42 | 977585 | SPRING Price: Call Us |
| 43 | 977586 | THRUST WASHER Price: Call Us |
| 45 | 100148 | THREADED PLUG Price: Call Us |
| 46 | 100388 | SQUARE CUT SEAL Price: Call Us |
