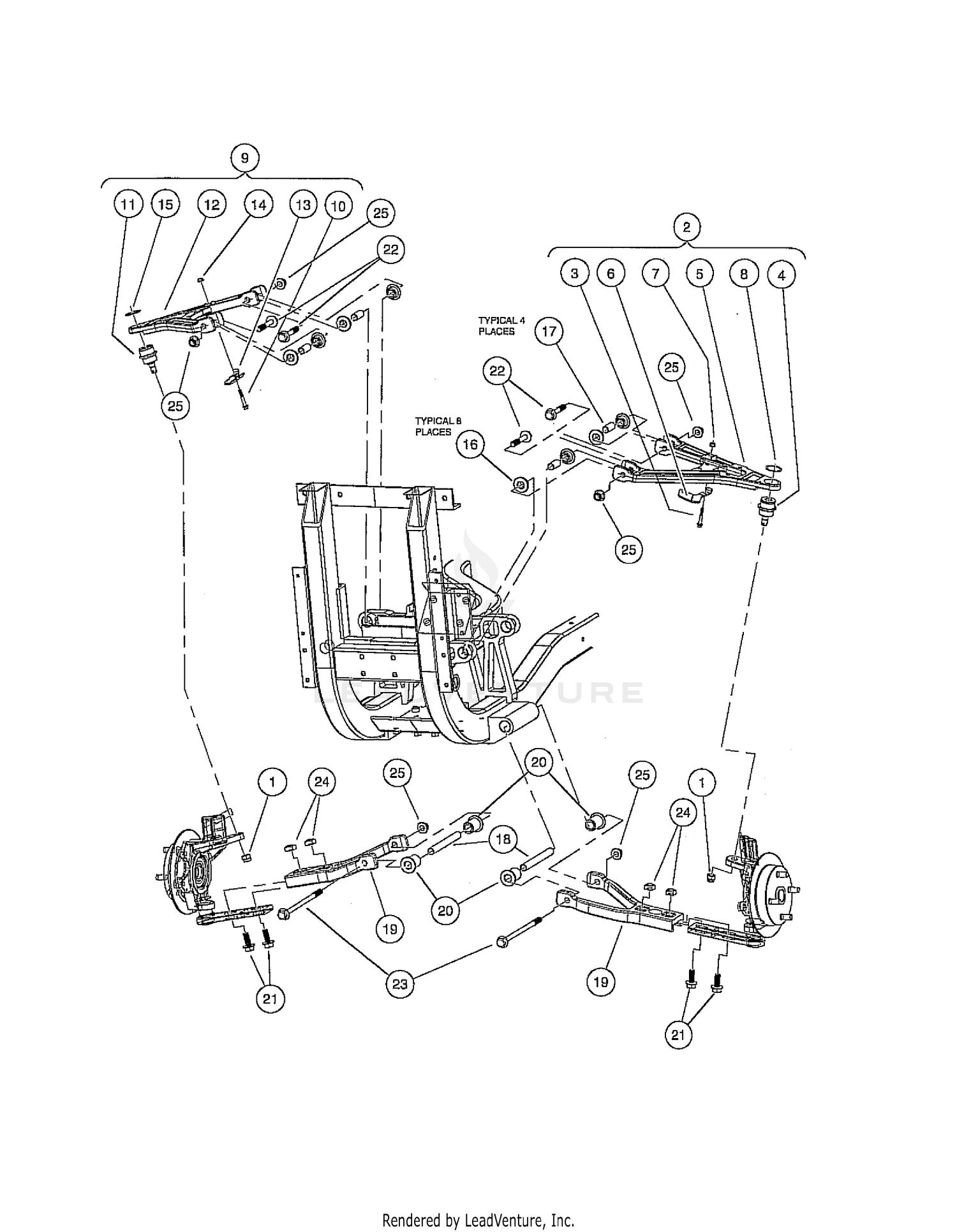

| Ref | Part Number | Description |
|---|
| 1 |
603000684 |
LOCKNUT, M12-1.25 NYLON Price: $3.99 |
| 2 |
603000900 |
SUB-ASSEMBLY, A-ARM, UPPER LH Price: $299.99 |
| 3 |
603000873 |
BOLT - M6X1.0X40 HEX FLNG HD Price: $2.99 |
| 4 |
603000891 |
BALL JOINT Price: $44.99 |
| 5 |
603000900 |
SUB-ASSEMBLY, A-ARM, UPPER LH This part replaces 603000902. Price: $299.99 |
| 6 |
603001139 |
BRACKET, BRAKELINE, LEFT Price: $37.99 |
| 8 |
603001684 |
RING, RETAINING, EXT, 1-1/4" Price: $2.99 |
| 9 |
603000901 |
SUB-ASSEMBLY,A-ARM, UPPER, RH Price: $299.99 |
| 10 |
603000873 |
BOLT - M6X1.0X40 HEX FLNG HD Price: $2.99 |
| 11 |
603000891 |
BALL JOINT Price: $44.99 |
| 13 |
603001140 |
BRACKET, BRAKELINE, RIGHT Price: $179.99 |
| 15 |
603001684 |
RING, RETAINING, EXT, 1-1/4" Price: $2.99 |
| 16 |
603000956 |
BUSHING, A-ARM Price: $4.99 |
| 17 |
603001022 |
SLEEVE, UPPER Price: $8.99 |
| 18 |
603001023 |
SLEEVE, LOWER Price: $27.99 |
| 19 |
603001063 |
ARM, LOWER Price: $139.99 |
| 20 |
603001131 |
BUSHING, LOWER ARM Price: $12.99 |
| 21 |
603001170 |
BOLT, FLG, M12X1.75X30 Price: $5.99 |
| 22 |
603001292 |
BOLT, FLG, M12X1.75X70 Price: $5.99 |
| 23 |
603003544 |
BOLT FLG, M12 X 1.75 X 200 10. This part replaces 603001293. Price: $14.99 |
| 24 |
603001303 |
NUT, SQUARE, M12 X 1.75 Price: $3.99 |
| 25 |
603001312 |
NUT FLG, M12X1.75, NYLON GR 10 Price: $5.99 |
