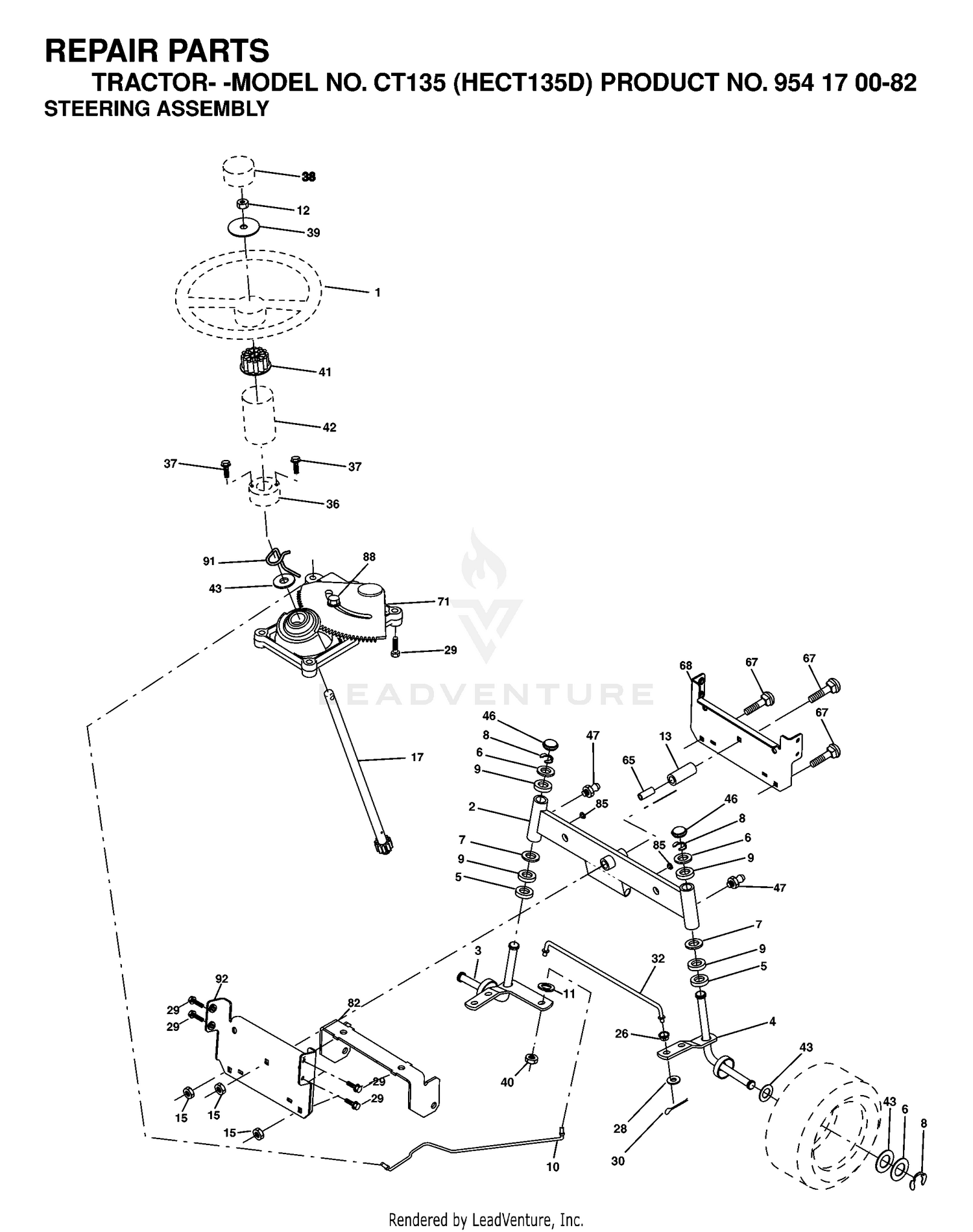

| Ref | Part Number | Description |
|---|
| 1 |
532166627 |
STEERING WHEEL Price: $64.99 |
| 2 |
104-3542 |
SPIDER Price: $67.38 |
| 2 |
532193542 |
AXLE.ASM.LT.CAST.LGHTWGHT This part replaces 532172393. Price: $119.99 |
| 3 |
104-3541 |
HUB-SPIDER Price: $130.30 |
| 3 |
596873901 |
KIT SPINDLE ASM.PNT.LH.15 This part replaces 532169840. Price: $14.99 |
| 4 |
127-3694 |
HYD MOTOR ASM Price: $968.32 |
| 4 |
596873801 |
KIT SPINDLE ASM.PNT.RH.15" This part replaces 532169839. Price: $27.99 |
| 5 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
140-5807 |
RH LIFT ARM ASM This part replaces 120-8878. Price: $737.14 |
| 6 |
532121748 |
WASHER Price: $3.99 |
| 7 |
140-5808 |
LH LIFT ARM ASM This part replaces 120-8879. Price: $714.29 |
| 8 |
120-8802 |
HYD CYLINDER ASM Price: $602.65 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
120-5575 |
PIN Price: $24.69 |
| 10 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 10 |
532175121 |
DRAGLINK.15".TIRES.2001 Price: $59.99 |
| 11 |
21-3001 |
NUT-JAM Price: $10.04 |
| 11 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 12 |
86-8101-01 |
JOINT-BALL, LH Price: $64.64 |
| 12 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 13 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 13 |
532136518 |
TUBE, PIVOT AXLE Price: $7.99 |
| 14 |
140-5809 |
SUPPORT-HUB This part replaces 93-4583-01. Price: $40.20 |
| 15 |
114-8417 |
NUT-HF, NI Price: $0.87 |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 16 |
324-19 |
SCREW-HH Price: $1.29 |
| 17 |
120-8893 |
PLATE-SENSOR Price: $12.11 |
| 17 |
532407600 |
KIT.RPLMNT.SHAFT.STRG. This part replaces 532180641. Price: $59.99 |
| 18 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 19 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 20 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 21 |
104-0108 |
U-BOLT Price: $7.10 |
| 22 |
95-6231 |
CHAIN-HOC Price: $14.75 |
| 23 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 24 |
3217-9 |
NUT-HH Price: $0.37 |
| 25 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 26 |
283-55 |
PIN-CLEVIS Price: $11.14 |
| 27 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 28 |
322-17 |
SCREW-HH Price: $2.62 |
| 29 |
104-8331 |
END-ROD, SPHERICAL Price: $46.75 |
| 29 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 30 |
105-3249 |
DAMPER Price: $176.72 |
| 31 |
115-5455 |
END-ROD, CLEVIS Price: $22.89 |
| 32 |
115-5454 |
PIN-SPRING Price: $5.97 |
| 32 |
532170162 |
ROD.ASM.TIE.BALL.JOINT.NOVAN Price: $79.99 |
| 33 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 33 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 34 |
115-2142 |
SPACER Price: $20.16 |
| 34 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 35 |
87-7480 |
WASHER Price: $1.26 |
| 35 |
873540500 |
NUT, CROWNLOCK Price: $3.99 |
| 36 |
112-6957 |
WASHER-HARDENED Price: $1.37 |
| 36 |
532155106 |
KIT.BUSHING.STEERING This part replaces 532155099. Price: $8.99 |
| 37 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 38 |
532172092 |
INSERT.CAP.STRG.WH (3 2) (L B) This part replaces 532166626. Price: $12.99 |
| 39 |
819182411 |
Washer 9/16 ID x 1 1/2 OD 11 Ga. Zin Price: $4.99 |
| 40 |
873610600 |
NUT This part replaces 532124701. Price: $2.99 |
| 41 |
532159945 |
STEERING WHEEL ADAPTOR Price: $6.99 |
| 43 |
532121749 |
WASHER Price: $2.99 |
| 44 |
532407600 |
KIT.RPLMNT.SHAFT.STRG. This part replaces 532180640. Price: $59.99 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 51 |
873540400 |
NUT.CROWNLOCK.1/4-28 Price: $4.99 |
| 54 |
871130420 |
Bolt Hex 1/4-28 unf x 1-1/4 Gr. 8 Price: $4.99 |
| 65 |
532414736 |
SPACER.BRACE.AXLE This part replaces 532160367. Price: $5.99 |
| 67 |
872110618 |
BOLT CARRIAGE This part replaces 872140618. Price: $4.99 |
| 68 |
531167401 |
SERVICE KIT BRACE.AXLE.1 This part replaces 532169827. Price: $19.99 |
| 71 |
531167801 |
SERVICE KIT STEERING ASM This part replaces 532175146. Price: $139.99 |
| 82 |
531170201 |
SERVICE.KIT BRACKET This part replaces 532169835. Price: $19.99 |
| 87 |
532173966 |
WASHER, FLAT .781 X 1 1/2" Price: $4.99 |
| 88 |
532175118 |
BOLT, SHOULDER 7/16-20 Price: $4.99 |
| 91 |
532175553 |
CLIP.STEERING Price: $9.99 |
