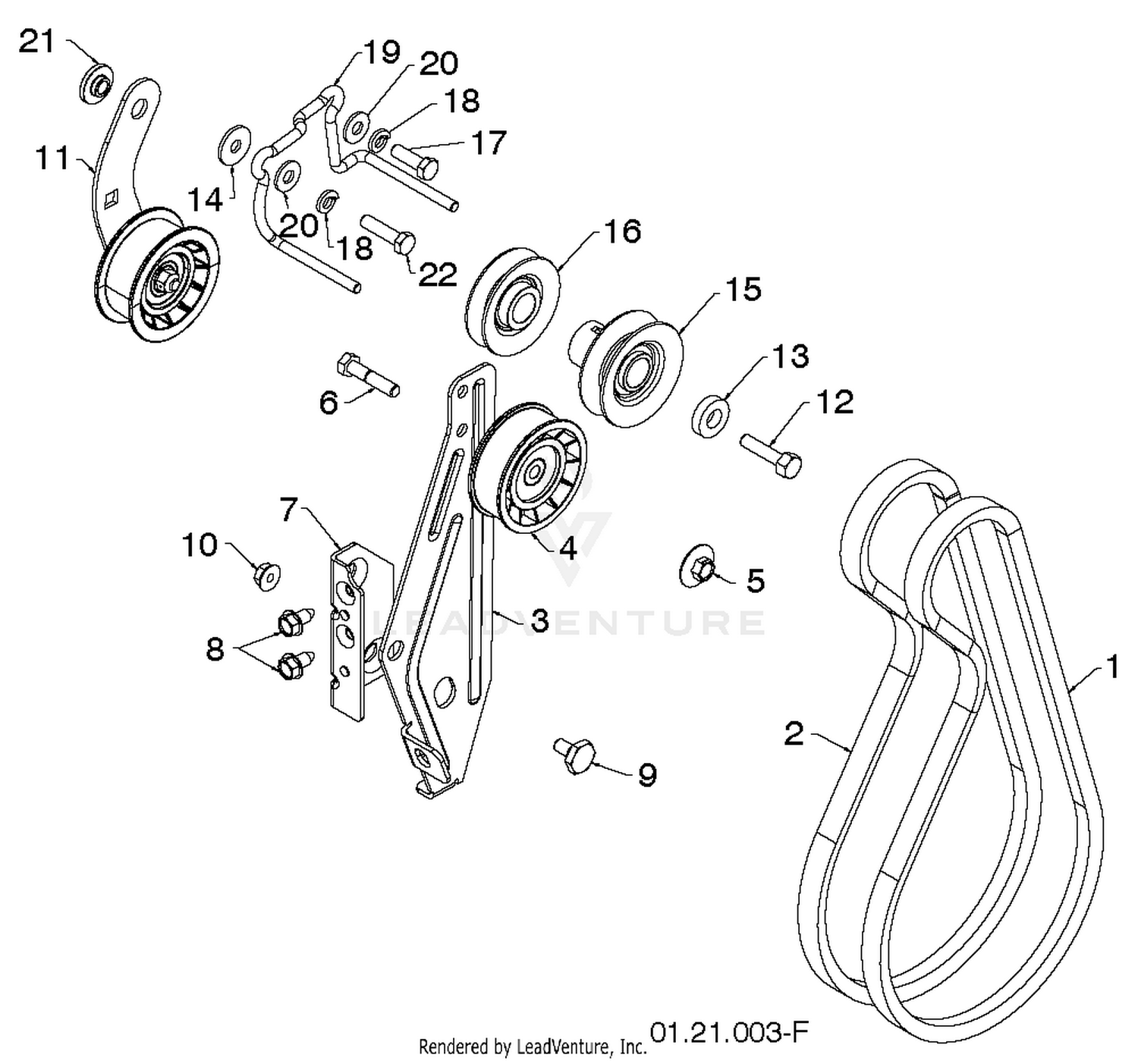

| Ref | Part Number | Description |
|---|
| 1 |
532408007 |
BELT.V.IMPELLER Price: $37.99 |
| 1 |
84-1880 |
FAN Price: $250.88 |
| 2 |
532419744 |
V-BELT TRACTION 34.25 Price: $29.99 |
| 2 |
84-1890 |
DISCONTINUED Price: Call Us |
| 3 |
584232402 |
ARM.IDLER BRAKE.CLEAR.ZINC Price: $12.99 |
| 3 |
84-1930 |
FAN HUB *O Price: $111.65 |
| 4 |
32120-10 |
RING-SNAP Price: $1.29 |
| 4 |
594095301 |
Pulleys This part replaces 532180523. Price: $9.99 |
| 5 |
36-7290 |
BEARING Price: $40.48 |
| 5 |
585802801 |
NUT.HEX.FL 5/16-18 TOP LCK BLK This part replaces 532426589. Price: $4.99 |
| 6 |
322-4 |
SCREW-HH Price: $0.35 |
| 6 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 7 |
532423990 |
RP.BRACKET.IDLER.PIVOT.BLACK This part replaces 585284901. Price: $4.99 |
| 7 |
84-1940-03 |
HUB ASM This part replaces 84-1940. Price: $150.60 |
| 8 |
32128-20 |
NUT-HF Price: $0.99 |
| 8 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 9 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 9 |
532424297 |
BOLT.SHOULDER.1/2X12 Price: $3.99 |
| 10 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 10 |
66-2440 |
DISCONTINUED Price: Call Us |
| 11 |
585238401 |
ARM.ASM.TRACTION.IDLER. Price: $27.99 |
| 11 |
63-7380 |
RESERVE TANK W/ENG Price: $114.51 |
| 12 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 12 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 13 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 13 |
532400026 |
WASHER, FLAT 3/8 Price: $7.99 |
| 14 |
532059289 |
STEEL WASHER Price: $3.99 |
| 14 |
63-6760 |
FITTING-CONNECTOR Price: $61.52 |
| 15 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 15 |
532426491 |
PULLEY.IMPELER. Price: $14.99 |
| 16 |
532426490 |
PULLEY.ENG.TRACTION Price: $12.99 |
| 16 |
63-7790 |
SCREW-CAP Price: $1.46 |
| 17 |
71-2910-03 |
RH REAR ENGINE ANGLE This part replaces 71-2910. Price: $22.46 |
| 17 |
874610516 |
SCREW Price: $3.99 |
| 18 |
117-2738 |
ENGINE-MITSUBISHI (SERVICE) This part replaces 94-3558. Price: $11,452.38 |
| 18 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 19 |
585540501 |
GUIDE.BELT.CHAIN.LS.SNOW This part replaces 585058201. Price: $9.99 |
| 19 |
66-2320-03 |
LH FRONT MOUNT ASM This part replaces 66-2320. Price: $62.36 |
| 20 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 20 |
532155415 |
WASHER.20X8.5 Price: $4.99 |
| 21 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 21 |
587343701 |
BUSHING.BRAKE.ARM This part replaces 532175331. Price: $5.99 |
| 22 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 23 |
84-1870 |
DISCONTINUED Price: Call Us |
| 24 |
63-6720-03 |
IDLER LEVER This part replaces 63-6720. Price: $66.34 |
| 25 |
323-6 |
SCREW-HH Price: $0.66 |
| 26 |
323-8 |
SCREW-HH Price: $1.20 |
| 27 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 28 |
63-8140 |
PULLEY-IDLER Price: $47.94 |
| 29 |
92-8876 |
V-BELT Price: $33.06 |
| 30 |
70-8560 |
DISCONTINUED Price: Call Us |
| 31 |
5-0652 |
SPACER Price: $5.35 |
| 32 |
67-4700 |
GLOW LAMP This part replaces 66-8700. Price: $117.35 |
| 33 |
3-6657 |
CLIP-SKID Price: $22.64 |
| 35 |
321-4 |
SCREW-HH Price: $0.99 |
| 36 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 37 |
321-3 |
SCREW-HH Price: $0.28 |
| 38 |
5-3637 |
SPACER Price: $2.23 |
| 39 |
43-5920 |
WASHER-LOCK, SPRING Price: $0.25 |
| 40 |
48-7880 |
NUT-HEX This part replaces 43-5970. Price: $0.25 |
| 41 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 42 |
57-6390 |
NUT-JAM Price: $0.89 |
| 43 |
33114-016 |
SCREW-HH This part replaces 48-7700. Price: $0.27 |
| 44 |
71-1520 |
RESERVOIR CAP Price: $21.69 |
| 45 |
32105-8 |
SCREW-SHH Price: $1.99 |
| 46 |
32149-7 |
NUT-KEPS Price: $0.27 |
| 47 |
3217-5 |
NUT-HEX Price: $0.25 |
| 48 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
