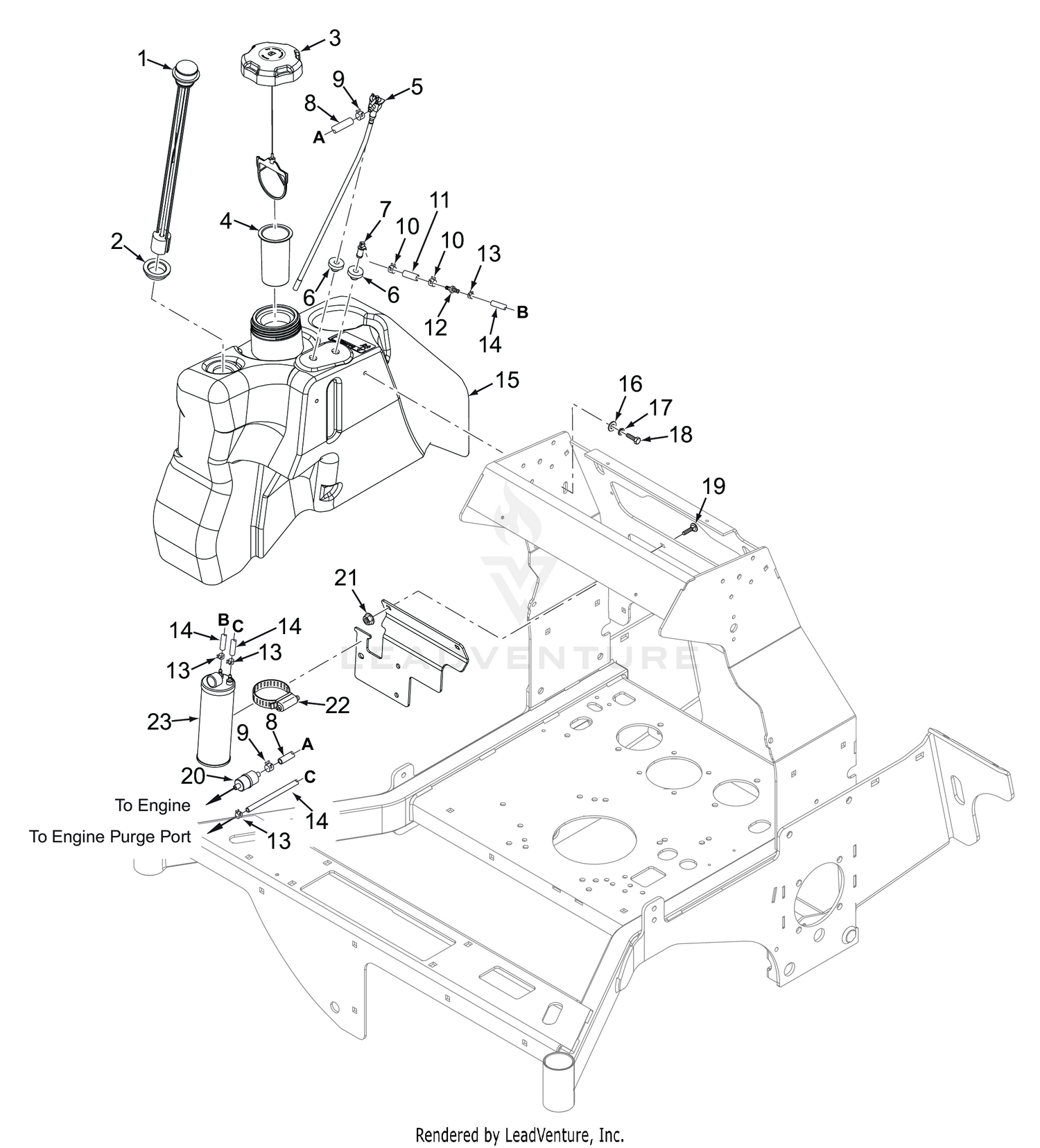

| Ref | Part Number | Description |
|---|
| 1 |
38-2470 |
DISCONTINUED Price: Call Us |
| 2 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 2 |
484242 |
Grommet, Fuel Gauge Price: Call Us |
| 3 |
32104-114 |
SCREW THD 1/4 20 5/8 Price: $5.17 |
| 3 |
484286 |
Fuel Cap w/ Tether (E.P.A.) Price: Call Us |
| 4 |
484279-01 |
Tube, Fuel Tank Insert - 4" Price: Call Us |
| 4 |
68-7320 |
DISCONTINUED This part replaces 27-4390. Price: Call Us |
| 5 |
483896 |
Valve, Fuel Shut Off Price: Call Us |
| 5 |
67-1710 |
DECAL-WARNING This part replaces 28-3290. Price: $7.83 |
| 6 |
482571 |
Bushing, 0.56" Dia. Viton Price: Call Us |
| 7 |
38-4020 |
SEAT MTG WA Price: $170.51 |
| 7 |
486852 |
Remote Vent, With No Valve Price: Call Us |
| 8 |
27-4720 |
SHAFT-PIVOT, SEAT Price: $32.27 |
| 8 |
483617 |
Fuel Hose, 1/4" I.D. Non-Perm (791DFI Fuel Return) Price: Call Us |
| 9 |
48059-01 |
Clamp, Fuel Hose 1/4" Hose I.D. Price: Call Us |
| 9 |
68-7330 |
DECAL - CAUTION This part replaces 27-4620. Price: $16.56 |
| 10 |
27-7310 |
DECAL-REFUELING Price: $27.52 |
| 10 |
48059-02 |
CLAMP, FUEL HOSE(KAWASAKI ONLY) Price: Call Us |
| 11 |
321-4 |
SCREW-HH Price: $0.99 |
| 11 |
484347 |
Hose, 1/4" Vapor Recovery (order by inch) Price: Call Us |
| 12 |
2412-42 |
CLAMP-HOSE Price: $2.65 |
| 12 |
484343-01 |
Mender, 1/4 x 3/16 w/0.02 Hole Price: Call Us |
| 13 |
44-9050 |
HOSE Price: $70.98 |
| 13 |
48059-05 |
Clamp, Vapor Recovery Hose 3/16" Price: Call Us |
| 14 |
3217-6 |
NUT-HEX Price: $1.19 |
| 14 |
484345 |
Hose, Vapor Recovery 3/16" Price: Call Us |
| 15 |
20-4840 |
CLAMP-MUFFLER Price: $15.06 |
| 15 |
463131 |
Fuel Tank Assy., Windstorm (Incl. #1,2,5,6,7) Price: Call Us |
| 16 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 16 |
27-7180 |
CAP Price: $70.51 |
| 17 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 17 |
44-8950-03 |
AIR CLEANER TUBE This part replaces 44-8950. Price: $53.15 |
| 18 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 18 |
27-7160 |
DECAL-INSTALLATION Price: $19.89 |
| 19 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 19 |
27-7100 |
AIR CLEANER ASM Price: $323.10 |
| 20 |
32107-11 |
NUT-SQUARE Price: $0.22 |
| 21 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 21 |
3258-19 |
SCREW Price: $0.42 |
| 22 |
27-7170 |
MOUNTING BAND ASM Price: $48.11 |
| 22 |
48136-17 |
Clamp, 3-1/2" Max. Dia. Price: Call Us |
| 23 |
322-3 |
SCREW-HH Price: $0.79 |
| 23 |
484342 |
Carbon Canister - SVR-52V / SVR-61V Price: Call Us |
| 24 |
108-3833 |
FILTER-AIR This part replaces 27-7110. Price: $26.73 |
| 25 |
27-7120 |
NUT AND GASKET ASM Price: $15.55 |
| 26 |
27-7140 |
SKIRT-BAFFLE Price: $85.92 |
| 27 |
27-7130 |
CLAMP ASM Price: $49.80 |
| 28 |
27-7150 |
A/C CUP ASM Price: $82.89 |
| 29 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 30 |
323-5 |
SCREW-HH Price: $0.41 |
| 31 |
37-9770 |
DISCONTINUED Price: Call Us |
| 32 |
321-2 |
SCREW-HH Price: $2.79 |
| 33 |
38-3170 |
DISCONTINUED Price: Call Us |
| 34 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 35 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 36 |
3217-5 |
NUT-HEX Price: $0.25 |
| 37 |
29-6930 |
DISCONTINUED-SEE PB#936 Price: Call Us |
| 38 |
3-6685 |
SPRING Price: $10.99 |
| 39 |
27-9870 |
PIN-SWITCH, SEAT Price: $31.55 |
| 40 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 41 |
32121-4 |
PIN-ROLL, SLOTTED Price: $3.49 |
| 42 |
37-9590 |
DISCONTINUED Price: Call Us |
| 43 |
32121-50 |
PIN-SPRING Price: $1.21 |
