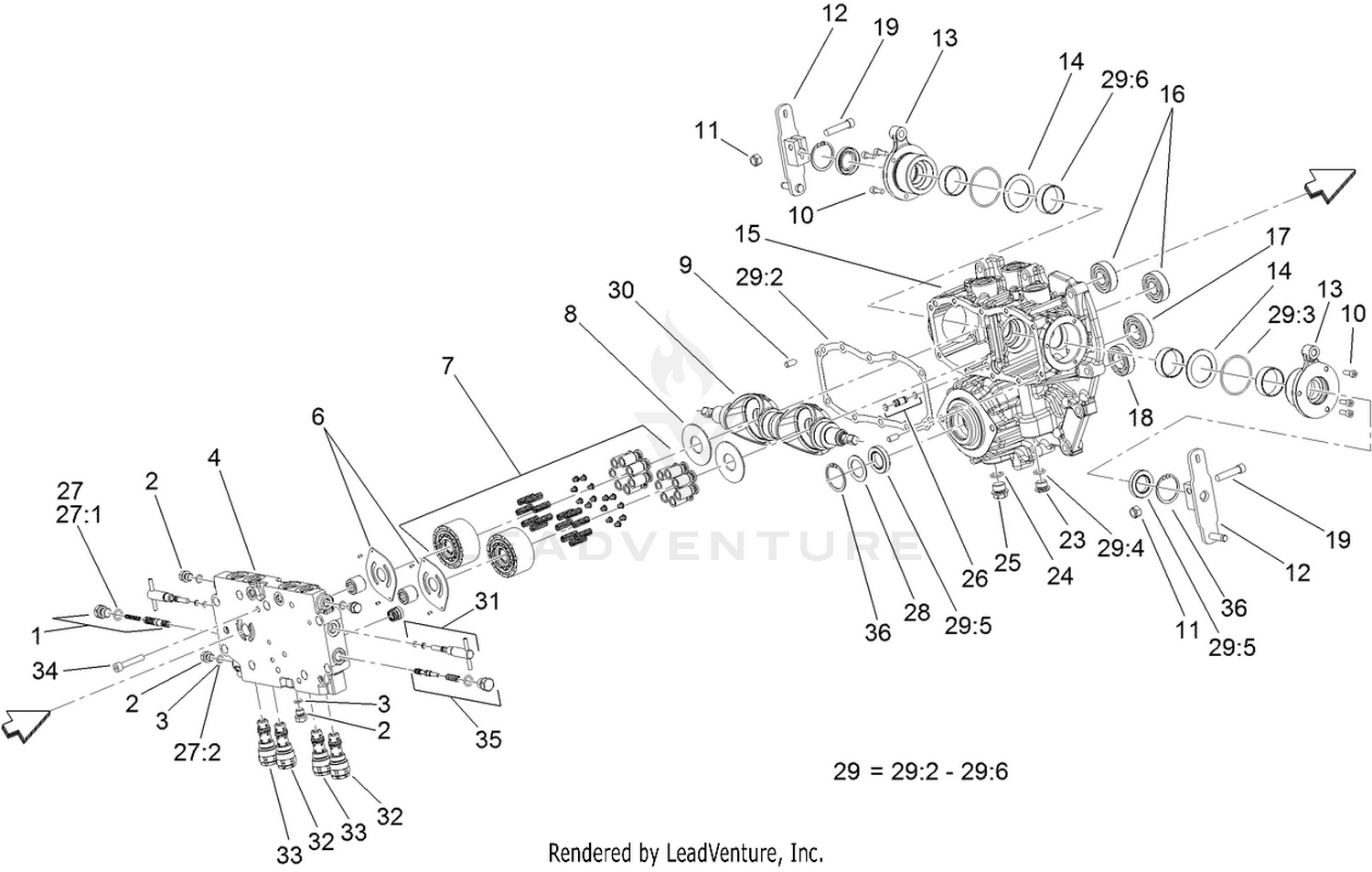

Transmission Assembly (cont.) Center Section Assembly
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 107-0807 | VALVE-FLUSHING, RH Price: $109.99 |
| 2 | 107-0857 | PLUG Price: $32.99 |
| 3 | 107-0817 | O RING-PLUG Price: $2.59 |
| 4 | 121-3377 | CENTER CASE, COMPLETE Price: $2,639.99 |
| 6 | 107-0805 | PLATE-VALVE Price: $105.99 |
| 7 | 107-0824 | CYLINDER BLOCK ASM Price: $1,127.99 |
| 8 | 107-0830 | PLATE-THRUST Price: $71.99 |
| 9 | 92-0765 | PIN-PARALLEL Price: $3.59 |
| 10 | 107-0859 | BOLT Price: $1.59 |
| 11 | 120-6681 | U-NUT Price: $10.99 |
| 12 | 120-6680 | ARM-CONTROL Price: $494.99 |
| 13 | 107-0832 | SIDE COVER ASM Price: $377.99 |
| 14 | 107-0829 | WASHER Price: $35.71 |
| 15 | 120-5151 | PUMP HOUSING ASM Price: $3,433.99 |
| 16 | 107-0826 | BEARING Price: $32.99 |
| 17 | 107-0821 | BEARING Price: $35.99 |
| 18 | 107-0838 | BEARING Price: $60.99 |
| 19 | 120-6682 | BOLT Price: $8.19 |
| 23 | 107-0861 | PLUG-NPTF Price: $9.99 |
| 24 | 237-79 | O-RING Price: $5.09 |
| 25 | 107-0867 | PLUG Price: $12.99 |
| 26 | 107-0812 | PIPE Price: $104.99 |
| 27 | 107-0852 | CENTER CASE SEAL KIT Price: $11.99 |
| 28 | 107-0813 | SPACER Price: $4.79 |
| 29 | 107-0853 | PUMP HOUSING SEAL KIT Price: $174.99 |
| 30 | 120-6679 | PLATE-SWASH Price: $751.99 |
| 31 | 107-0808 | VALVE-BYPASS Price: $73.99 |
| 32 | 107-0804 | VALVE-REAR Price: $384.99 |
| 33 | 107-0803 | VALVE-FRONT Price: $384.99 |
| 34 | 107-0863 | BOLT Price: $3.79 |
| 35 | 107-0806 | VALVE-FLUSHING, LH Price: $109.99 |
