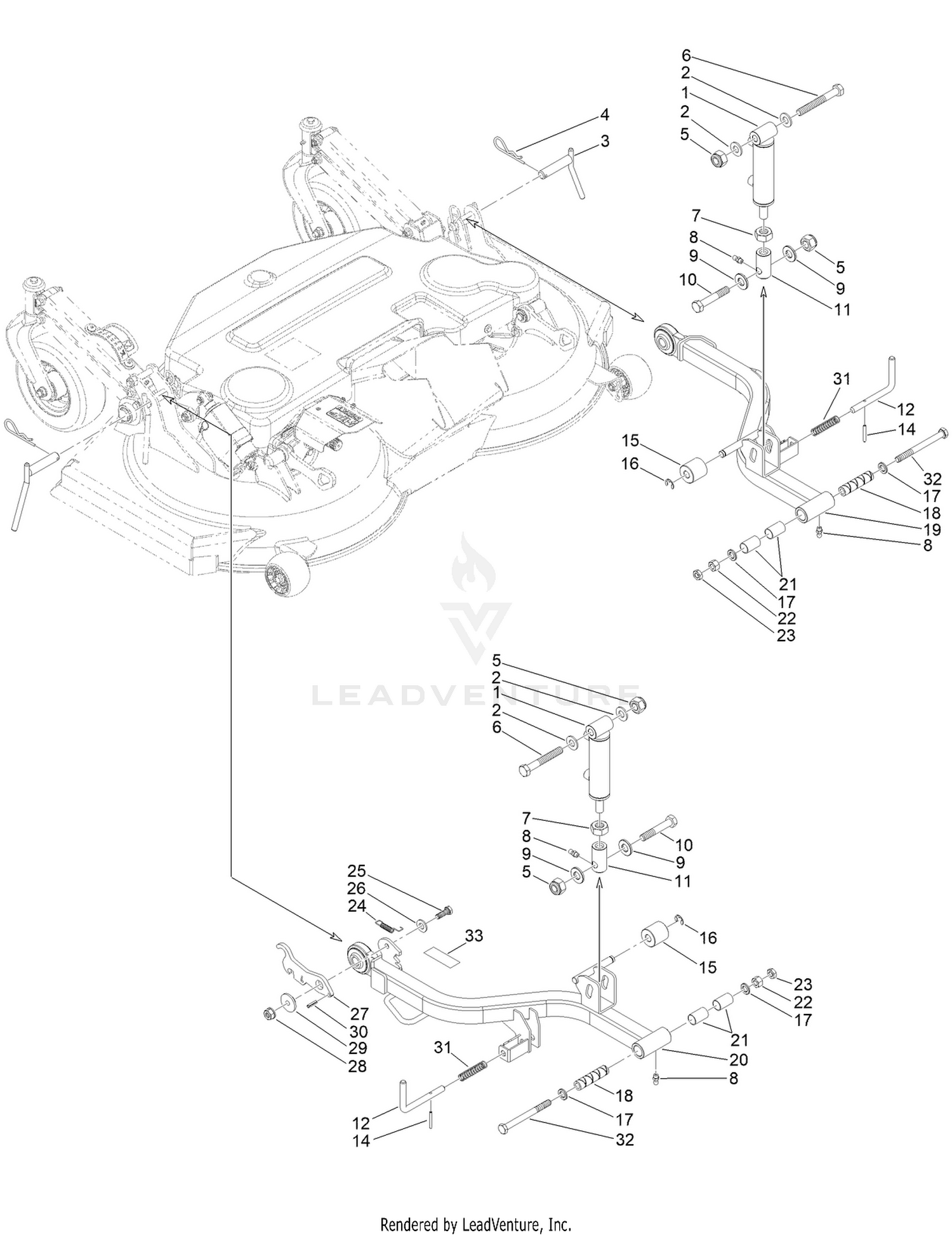

Cutting Deck and Lift Arms Assembly
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 134-9337 | RAM Price: Call Us |
| 2 | 134-3012 | WASHER Price: $0.27 |
| 3 | 134-9091 | PIN-PIVOT Price: Call Us |
| 4 | 134-1098 | PIN-SPRING Price: $1.17 |
| 5 | 134-1090 | NUT Price: $2.25 |
| 6 | 134-9089 | SCREW, HH CAP Price: Call Us |
| 7 | 134-1037 | NUT Price: $1.10 |
| 8 | 134-1065 | FITTING-GREASE Price: $1.22 |
| 9 | 134-0977 | WASHER-PLASTIC Price: $6.35 |
| 10 | 134-9090 | SCREW, HH CAP Price: Call Us |
| 11 | 134-0692 | SUPPORT Price: $16.77 |
| 12 | 134-0660 | PIN-UNHOOKING Price: $28.26 |
| 14 | 134-1205 | PLUG-SPIROL Price: $1.46 |
| 15 | 134-9083 | ROLLER, PLATFORM Price: Call Us |
| 16 | 134-2964 | RING-SNAP Price: $0.39 |
| 17 | 134-8073 | WASHER-PLAIN, CHAMFERED Price: $0.78 |
| 18 | 134-0899 | BUSHING Price: $32.75 |
| 19 | 134-9086 | RH ARM, DECK Price: Call Us |
| 20 | 134-9088 | LH ARM, DECK Price: Call Us |
| 21 | 134-1187 | BUSHING Price: $8.54 |
| 22 | 134-8075 | NUT-HEX Price: $0.92 |
| 23 | 134-1035 | NUT Price: $0.49 |
| 24 | 134-0695 | SPRING Price: $11.04 |
| 25 | 134-1023 | SCREW Price: $0.70 |
| 26 | 134-1046 | WASHER Price: $0.25 |
| 27 | 134-9084 | HOOK, DECK Price: Call Us |
| 28 | 134-3009 | NUT Price: $0.51 |
| 29 | 134-0710 | BUSHING Price: $8.75 |
| 30 | 134-1136 | PLUG-SPIROL Price: $0.47 |
| 31 | 134-0641 | SPRING Price: $6.60 |
| 32 | 134-8074 | SCREW-HH Price: $11.94 |
