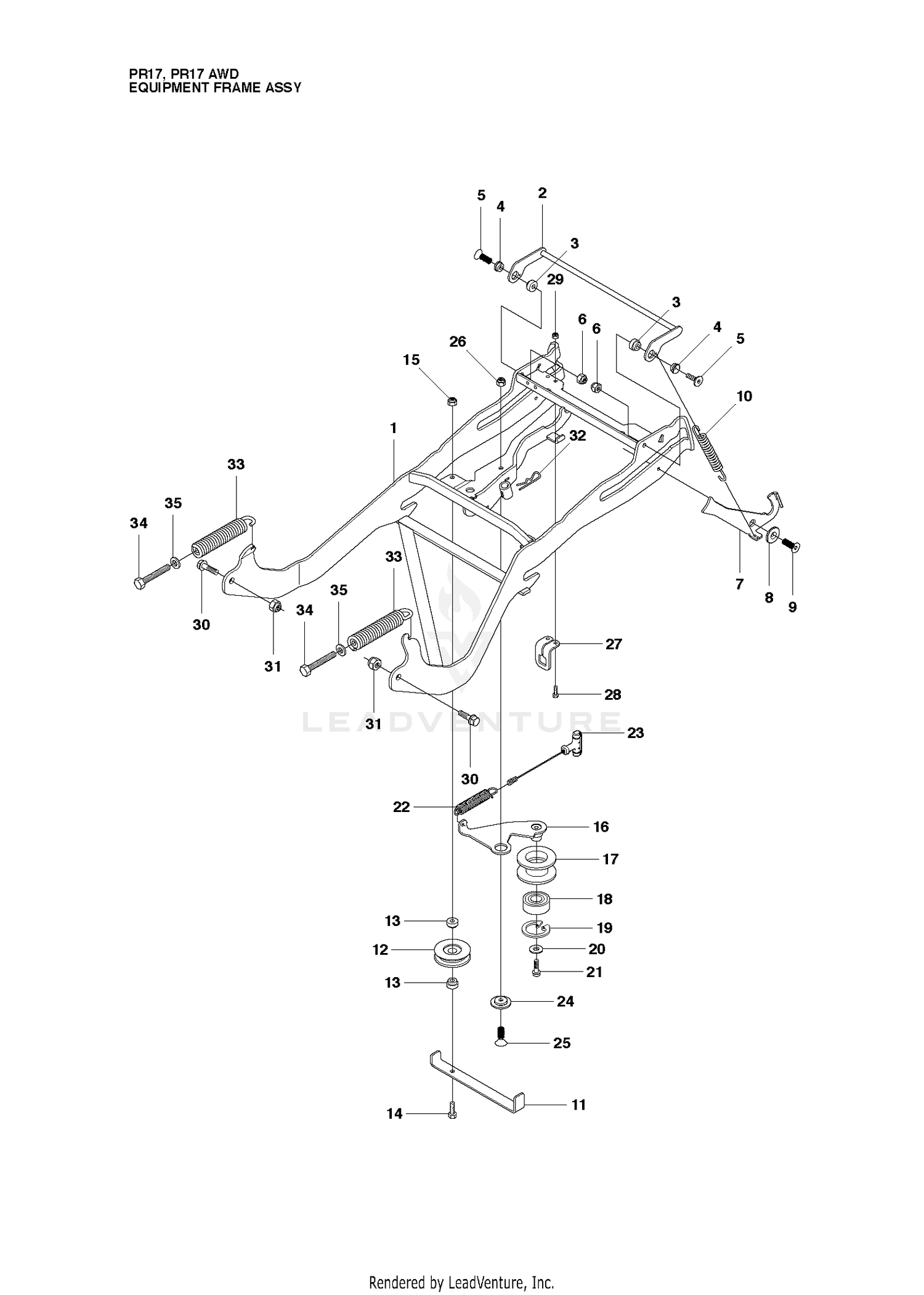

FRAME
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 502637801 | NEEDS DESCRIPTION Price: Call Us |
| 2 | 504557801 | NEEDS DESCRIPTION Price: Call Us |
| 3 | 544003401 | BUSHING Price: $17.99 |
| 4 | 506993302 | NEEDS DESCRIPTION Price: Call Us |
| 5 | 725645901 | NEEDS DESCRIPTION Price: Call Us |
| 6 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 7 | 504558002 | NEEDS DESCRIPTION Price: Call Us |
| 8 | 506918701 | SPACER Price: $5.99 |
| 9 | 725644801 | SCREW IHCSFM Price: $2.99 |
| 10 | 506535603 | SPRING Price: $4.99 |
| 11 | 504621601 | NEEDS DESCRIPTION Price: Call Us |
| 12 | 544004601 | PULLEY ASSY Price: $49.99 |
| 13 | 544003401 | BUSHING Price: $17.99 |
| 14 | 725246351 | SCREW This part replaces 725246051. Price: $4.99 |
| 15 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 16 | 504621901 | NEEDS DESCRIPTION Price: Call Us |
| 17 | 505153901 | BELT TENSIONER WHEEL ASSY This part replaces 506928901. Price: $54.99 |
| 18 | 738210404 | BALL BEARING 6004-2RS1 Price: $9.99 |
| 19 | 735313810 | RETAINING RING Price: $2.99 |
| 20 | 734116441 | SPACER Price: $3.99 |
| 22 | 504622401 | SPRING Price: $7.99 |
| 23 | 504622101 | NEEDS DESCRIPTION Price: Call Us |
| 24 | 586496701 | WASHER SHOULDER ASSY This part replaces 505451701. Price: $4.99 |
| 25 | 725645301 | SCREW Price: $3.99 |
| 26 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 27 | 504621701 | NEEDS DESCRIPTION Price: Call Us |
| 28 | 725236871 | BOLT FLANGE - M6X20 Price: $2.99 |
| 29 | 732211601 | LOCKNUT M6 Price: $4.99 |
| 30 | 506895801 | BOLT Price: $6.99 |
| 31 | 732252201 | Nut Price: $2.65 |
| 32 | 506966601 | RETAINER Price: $3.99 |
| 33 | 505418701 | NEEDS DESCRIPTION Price: Call Us |
| 34 | 725251571 | Price: $7.84 |
| 35 | 596134901 | GSPH This part replaces 734117201. Price: $2.99 |
