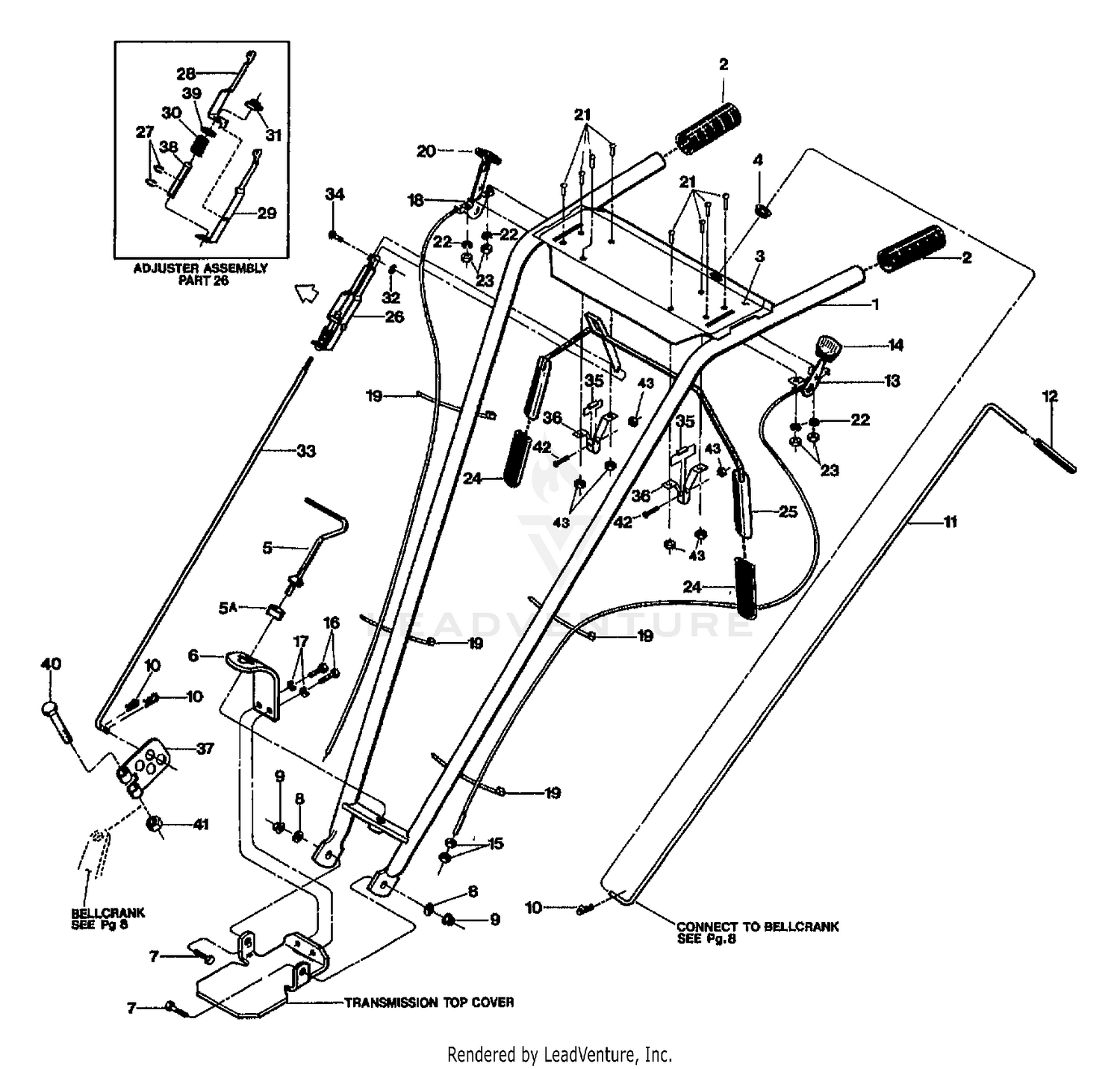

| Ref | Part Number | Description |
|---|
| 1 |
2619 |
ASSM-HANDLEBAR W/GRIPS (INCL. 2-5A) Price: Call Us |
| 2 |
720-04083 |
Handlebars Grip This part replaces 9125. Price: $12.95 |
| 3 |
2558 |
DECAL-CONTROL PANEL Price: Call Us |
| 4 |
9251 |
BUSHING-NYLON (PART OF OPERATOR CONTROL PANEL) Price: Call Us |
| 5 |
20703 |
HEX SCREW Not Available Price: |
| 5A |
736-04445 |
Keyed Washer This part replaces 9955. Price: $3.65 |
| 6 |
20753 |
PLATE-HANDLEBAR ADJUST Price: Call Us |
| 11 |
20830 |
LEVER, CLUTCH-MANEUVERING Not Available Price: |
| 12 |
9198 |
GRIP-CONTROL ROD Price: Call Us |
| 13 |
GW-9442P |
Wheel Gear Control & Cable Ass This part replaces 9442. Price: $35.23 |
| 14 |
GW-9057 |
Knob, Wheel Gear Control Lever This part replaces 9057. Price: $7.12 |
| 15 |
9826 |
NUT-HEX 5/16-24 Price: Call Us |
| 18 |
9445 |
CABLE-THROTTLE ECONO OPC Price: Call Us |
| 20 |
731-0108 |
Knob, Throttle Control This part replaces 9212. Price: $8.12 |
| 21 |
9722 |
SCR-RH M10-32X.5 MACH Price: Call Us |
| 22 |
9909 |
WASHER-LK M10 Price: Call Us |
| 23 |
9809 |
NUT-HH M10-32X.125 Price: Call Us |
| 24 |
GW-9390 |
Grip This part replaces 9390. Price: $4.26 |
| 25 |
1918840 |
Bail, Forward Clutch Control This part replaces 20863. Price: $102.41 |
| 26 |
2620 |
ASSM-ADJUSTMENT OPC (INCL. 27-30,38-39) Price: Call Us |
| 27 |
GW-9532 |
Clip Ring This part replaces 9532. Price: $3.22 |
| 28 |
20808 |
ADJUSTER-RT SIDE Not Available Price: |
| 29 |
GW-20809 |
ADJUSTER-LT SIDE O Not Available This part replaces 20809. Price: |
| 30 |
9059 |
SPRING-ADJUSTER OPC Price: Call Us |
| 31 |
9522 |
WELDNUT 5/16-18 Price: Call Us |
| 32 |
9386 |
RING-KLIP .188 DIA Price: Call Us |
| 33 |
20831 |
CONTROL ROD OPC Not Available Price: |
| 34 |
9388 |
ASSM-PIN & CLIP (SMALL FRAME) Price: Call Us |
| 35 |
9431 |
SPACER-#10 SPLIT Price: Call Us |
| 36 |
GW-20806 |
Bracket, Bail Support This part replaces 20806. Price: $7.83 |
| 37 |
20805 |
SWIVEL Price: Call Us |
| 38 |
9432 |
BUSHING-.5X.334X2.88 Price: Call Us |
| 39 |
9973 |
WASHER-.75X.51X.06 ZP Price: Call Us |
| 40 |
9664 |
SCR-HH 1/4-20X1.5 G5ZP Price: $11.00 |
| 41 |
9811 |
NUT-LK 1/4-20 Price: Call Us |
| 42 |
9582 |
SCR 10-32 Price: Call Us |
