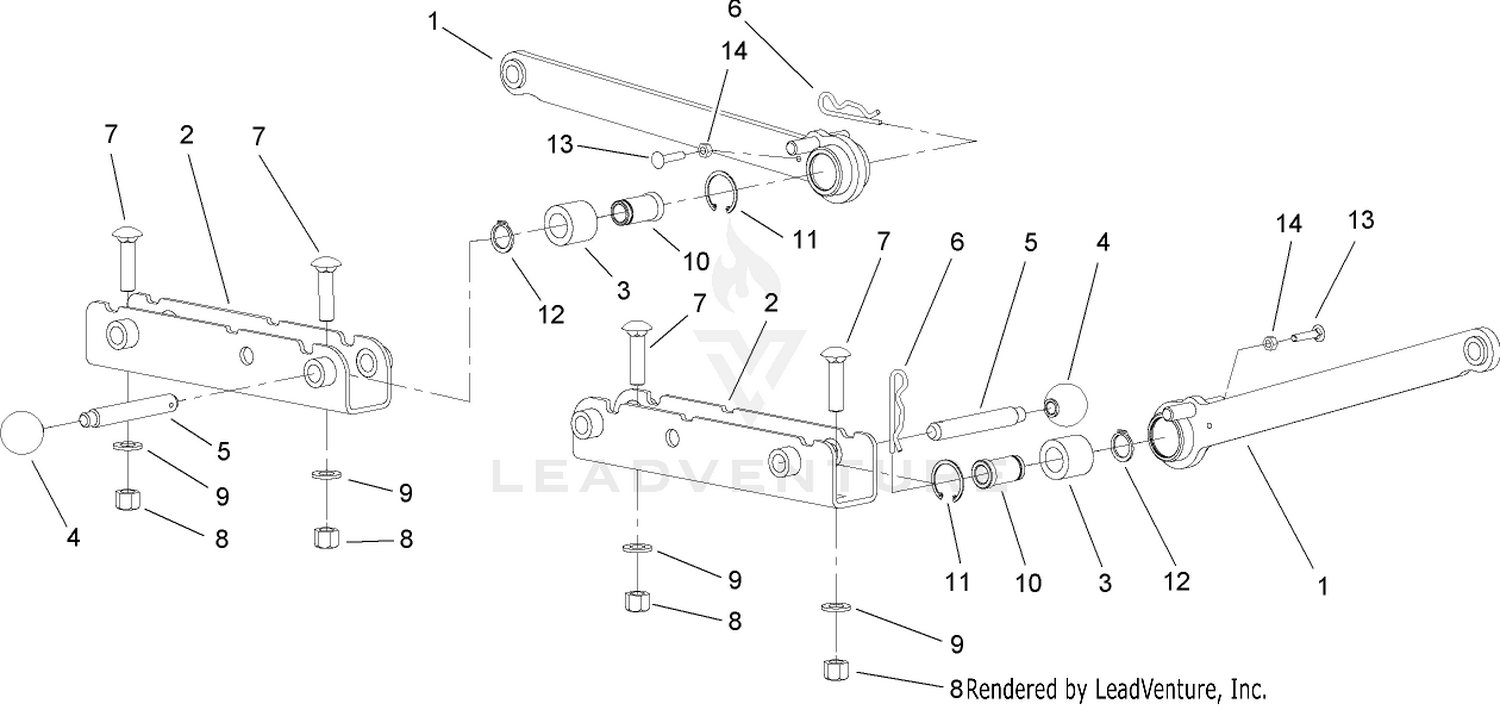

Manual Latch Assembly
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 108-3518-03 | LATCH ASM Price: $172.30 |
| 2 | 108-3541-03 | LATCH ASM-PIN Price: $114.72 |
| 3 | 108-3648 | SPACER-PLASTIC Price: $34.67 |
| 4 | 92-8564 | KNOB Price: $11.17 |
| 5 | 108-3610 | PIN-CLEVIS Price: $53.85 |
| 6 | 3290-468 | PIN-COTTER Price: $0.95 |
| 7 | 110-5077 | SCREW-CARRRIAGE Price: $12.58 |
| 8 | 3296-23 | NUT-LOCK, NI Price: $0.52 |
| 9 | 106-9888 | WASHER-FLAT Price: $0.49 |
| 10 | 108-3646 | SPACER Price: $45.62 |
| 11 | 32151-34 | RING-RETAINING Price: $0.67 |
| 12 | 32151-33 | RING-RETAINING, EXT Price: $3.09 |
| 13 | 3229-3 | SCREW-CARR Price: $4.49 |
