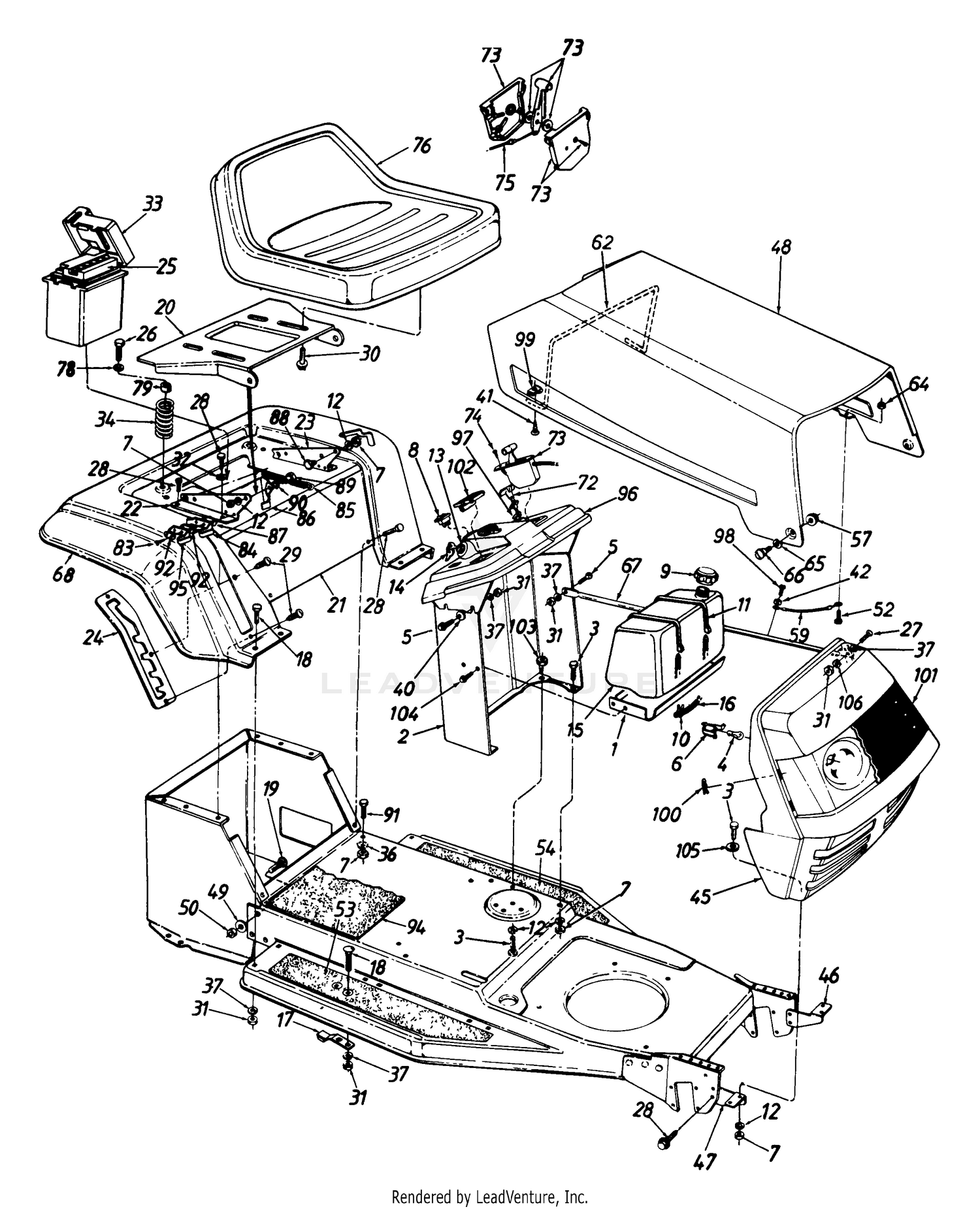

| Ref | Part Number | Description |
|---|
| 1 |
17932-0637 |
BRACKET-TANK SUPPORT Not Available This part replaces 17932. Price: |
| 2 |
17933A |
PEDESTAL Not Available This part replaces 17933. Price: |
| 4 |
925-0963 |
Miniature Lamp 12V Socket Type This part replaces 725-0963. Price: $6.73 |
| 5 |
710-0258 |
Hex Bolt 1/4 x .62" Lg. Price: $3.63 |
| 6 |
925-1651 |
SQ HEADLIGHT SOCKET Not Available This part replaces 725-1651. Price: |
| 10 |
726-0205 |
Hose Clamp Price: $3.71 |
| 11 |
726-0230 |
Cable Tie This part replaces 726-0209. Price: $23.95 |
| 13 |
925-0267B |
Ignition Switch This part replaces 725-0267. Price: $33.31 |
| 14 |
925-0201 |
Key This part replaces 725-0201. Price: $8.70 |
| 15 |
751-0555D |
FUEL TANK 1.36 GAL This part replaces 751-0553. Price: $78.46 |
| 16 |
751-22813-24 |
FUEL HOSE 1/4-24" This part replaces 751-0535-15. Price: $27.48 |
| 17 |
961-0194A |
BLADE BRAKE ASSEMBLY Not Available This part replaces 761-0194. Price: |
| 18 |
710-0134 |
Carriage Bolt 1/4-20 x .62" Price: $3.71 |
| 19 |
710-0793 |
SCREW 3/8-24 x .80 Not Available Price: |
| 20 |
783-0039A |
SEAT PIVOT BRACKET Not Available This part replaces 15607D. Price: |
| 21 |
17590 |
FENDER-RR Not Available Price: |
| 22 |
17704 |
SEAT HINGE SUPPORT BRKT. (RH) Not Available Price: |
| 23 |
17703 |
SEAT HINGE SUPPORT BRKT. (LH) Not Available Price: |
| 24 |
17553 |
BRACKET-DECK INDEX Not Available Price: |
| 25 |
753-0607 |
BATTERY Not Available This part replaces 725-1633. Price: |
| 26 |
710-0817 |
Hex Self-Tap Screw 5/6-18 x 1.25" Lg. Price: $5.77 |
| 27 |
710-0924 |
Truss Mach. Scr. 1/4-20 x.75" Lg. This part replaces 710-0255. Price: $4.02 |
| 28 |
710-0726 |
Hex AB-Tap Scr. 5/16 x .75" Lg. Price: $3.82 |
| 29 |
710-1017 |
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. Price: $7.26 |
| 30 |
710-0623 |
Hex Self-Tap Scr. 3/8-16 x .75" Lg. Price: $3.93 |
| 32 |
736-0607 |
External L-Wash. 5/16" I.D. Price: $3.66 |
| 34 |
732-0588 |
COMPRESSION SPRING Not Available Price: |
| 36 |
736-0242 |
Bell-Wash. 5/16" I.D. Price: $3.75 |
| 40 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 41 |
710-3009 |
Pan Hd. Scr. 10-24 x .75" Lg. Price: $6.24 |
| 42 |
736-0400 |
Fl-Wash. .218" I.D. x .62" Price: $4.56 |
| 45 |
17940B |
GRILLE Not Available This part replaces 17931A. Price: |
| 46 |
17595 |
BRACKET-GR Not Available Price: |
| 47 |
17596 |
BRACKET-GR Not Available Price: |
| 48 |
17941 |
HOOD Not Available Price: |
| 49 |
736-0217 |
L-Wash. 3/8" I.D.- H.D. Price: $3.86 |
| 50 |
712-0241 |
Hex L-Nut 3/8-24 Thd. Price: $3.86 |
| 52 |
710-0473 |
Truss Mach. Scr. #10-24 x .5" Lg. Price: $3.90 |
| 53 |
723-0308B |
FOOT PAD - R H Not Available Price: |
| 54 |
723-0309B |
FOOT PAD (LH) Not Available Price: |
| 57 |
712-0380 |
LOCK NUT 1/4 x 28 Not Available Price: |
| 59 |
723-0302 |
Hood Stop Price: $11.12 |
| 62 |
732-0699 |
HOOD SPRING Not Available Price: |
| 64 |
712-0272 |
Hex Sems Nut #10-24 Thd Price: $3.58 |
| 65 |
736-0413 |
Spr. Wash. .39" I.D. x .62" O.D. Price: $6.01 |
| 66 |
938-0952A |
Shoulder Bolt, .375 x .125 This part replaces 738-0724. Price: $6.17 |
| 67 |
749-0722B |
SUPPORT-GR Not Available Price: |
| 68 |
731-0511-81 |
Trim Strip 81" Lg. Price: $92.23 |
| 72 |
946-0616A |
Choke Control 23" This part replaces 746-0616A. Price: $24.63 |
| 73 |
831-0823A |
Throttle Control Box Price: $30.59 |
| 74 |
710-0779A |
Truss AB-Tap Scr. #10 x .5" Price: $3.85 |
| 75 |
746-0501 |
Throttle Wire (B&S) Price: $15.17 |
| 75 |
946-0638 |
Throttle Control Wire 18.5" This part replaces 746-0638. Price: $9.47 |
| 76 |
757-0348A |
SEAT-V-550 4 BOLT Not Available This part replaces 757-0348. Price: |
| 76 |
957-0360A |
SEAT Not Available This part replaces 757-0338. Price: |
| 76 |
957-0378 |
LOW BACK SEAT BLACK W/SWITCH Not Available This part replaces 757-0345. Price: |
| 78 |
736-0159 |
Fl-Wash. 344" I.D x .88" O.D. Price: $3.71 |
| 79 |
722-0160 |
RUBBER BUSHING .318IDX.930OD Not Available Price: |
| 83 |
710-0227 |
Hex Tap Scr. #8 x .5" Lg. Price: $3.90 |
| 84 |
725-1439 |
Safety Switch (Seat) Price: $7.18 |
| 85 |
932-0581B |
Extension Spring This part replaces 732-0581B. Price: $12.55 |
| 86 |
17239C |
BRACKET-SEAT LIFT Not Available This part replaces 17239A. Price: |
| 87 |
726-0278 |
Insulator Boss Plate Price: $5.95 |
| 88 |
938-0155 |
Shoulder Bolt This part replaces 738-0155. Price: $6.01 |
| 89 |
738-0296 |
Shld. Bolt .437" Dia. x .268" Lg. Price: $3.93 |
| 90 |
936-0141 |
Spr. Wash. 7/16" I.D. This part replaces 736-0141. Price: $6.01 |
| 91 |
710-0604A |
Screw, 5/16-18 x .625 This part replaces 710-0604. Price: $3.96 |
| 92 |
726-0279 |
Insulator Plate Price: $3.22 |
| 94 |
723-0423 |
PAD-CENTER FOOT Not Available Price: |
| 95 |
925-1303 |
Outer Seat Spring Switch This part replaces 725-1303. Price: $5.58 |
| 97 |
17782 |
CLIP-CHOKE RETAINER Not Available Price: |
| 98 |
710-0351 |
Truss Mach. B-Tap Scr. #10 x .5" Lg. Price: $3.90 |
| 99 |
926-0130 |
U-TYPE SPEED NUT Not Available This part replaces 726-0130. Price: |
| 100 |
714-0104 |
Internal Cotter Pin 5/16" Dia Price: $3.90 |
| 101 |
931-1099A |
Lens This part replaces 731-1099A. Price: $81.56 |
| 103 |
712-3007 |
Hex Jam Nut 5/16-18 Thd. Price: $6.06 |
| 104 |
710-0599 |
Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg Price: $3.86 |
| 105 |
736-3078 |
Fl-Wash. .344" I.D. x 1" O.D. Price: $3.95 |
