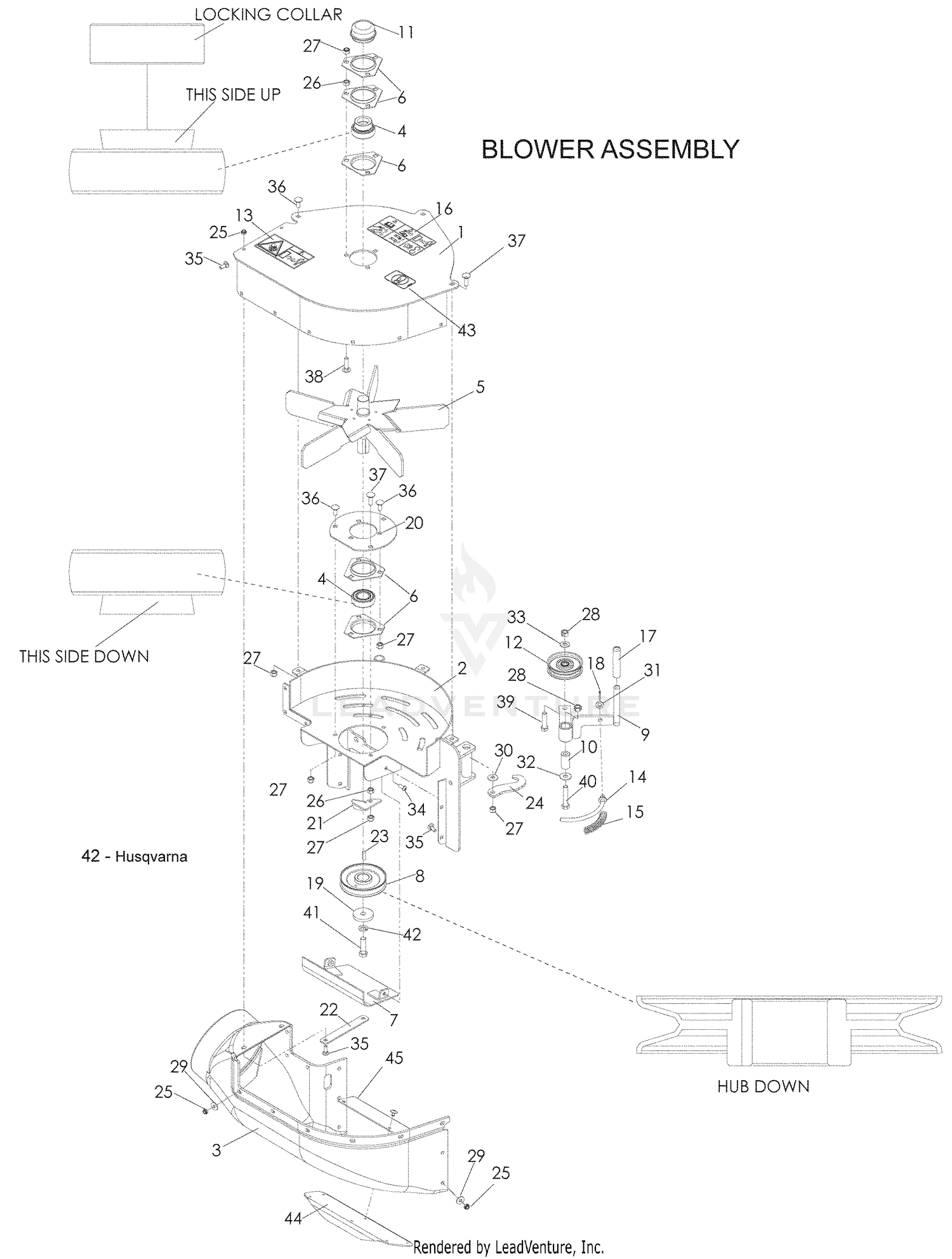

| Ref | Part Number | Description |
|---|
| 1 |
539111331 |
FAN COVER W/DECALS Price: $179.99 |
| 1A |
631776A |
SHAFT & LEV This part replaces 631776. Price: $12.00 |
| 2 |
539108941 |
BLOWER HOUSING WELDMENT Price: $399.99 |
| 2 |
631970 |
RET SPRING This part replaces 631777. Price: $3.00 |
| 3 |
539109900 |
LOWER HOUSING Price: $149.99 |
| 3 |
631778 |
SHUTTER Price: $1.20 |
| 4 |
539106786 |
BEARING KIT-2 PCS Price: $44.99 |
| 4 |
650506 |
SCREW Price: $0.87 |
| 5 |
539110111 |
FAN WELDMENT Price: $179.99 |
| 5 |
630766 |
SPRING Price: $1.25 |
| 5A |
630738 |
SPRING Price: $1.25 |
| 6 |
539102691 |
BRG FLANGE Price: $3.99 |
| 6 |
651025 |
SCREW This part replaces 650417. Price: $1.18 |
| 7 |
539108301 |
COVER PLATE WELDMENT Price: $60.99 |
| 7 |
631859 |
SHAFT & LEV Price: $7.14 |
| 8 |
539106713 |
SHEAVE 4" Price: $54.99 |
| 8 |
630735 |
SPRING This part replaces 631813. Price: $1.25 |
| 9 |
539106715 |
IDLER ARM Price: $34.99 |
| 9 |
631753 |
SHUTTER Price: $1.25 |
| 10 |
539101836 |
BUSHING, SLEEVE Price: $2.99 |
| 10 |
630748 |
WELCH PLUG This part replaces 631746. Price: $1.17 |
| 11 |
595281301 |
Caps This part replaces 539102535. Price: $4.99 |
| 11 |
631027 |
WELCH PLUG Price: $1.17 |
| 12 |
539106721 |
PULLEY Price: $25.99 |
| 12 |
631021B |
INLET NEEDLE KIT This part replaces 631021. Price: $4.82 |
| 13 |
539106741 |
EURO DECAL, IMPELLER Price: $5.99 |
| 13 |
631022 |
CLIP Price: $1.25 |
| 14 |
539106801 |
SPRING ROD WLDMNT Price: $99.99 |
| 14 |
632019A |
FLOAT This part replaces 631023. Price: $5.85 |
| 15 |
539106720 |
SPRING Price: $22.99 |
| 15 |
631024 |
FLOAT SHAFT Price: $1.17 |
| 16 |
539105785 |
DECAL, EURO WARNING Price: $8.99 |
| 16 |
631867 |
FLOAT BOWL Price: $2.34 |
| 17 |
27136A |
DRAIN ASSY Price: $5.96 |
| 17 |
539101050 |
GRIP Price: $2.99 |
| 18 |
27554 |
GASKET Price: $1.05 |
| 18 |
539990037 |
COTTER PIN 3/32 X 3/4 Price: $2.99 |
| 19 |
596770301 |
Washers This part replaces 539106504. Price: $4.99 |
| 20 |
539106809 |
BEARING PLATE - BLACK Price: $12.99 |
| 20 |
631781 |
POWER SCREW Price: $9.57 |
| 21 |
27110A |
GASKET This part replaces 27110. Price: $1.45 |
| 21 |
539106811 |
BELT GUIDE Price: $6.99 |
| 22 |
539106812 |
BACKING (BLACK) Price: $6.99 |
| 23 |
539102067 |
KEY 1/4 SQ X 3/4 Price: $2.99 |
| 23 |
630740 |
O RING Price: $1.49 |
| 24 |
539111303 |
IDLER ARM KEEPER Price: $5.99 |
| 24 |
630898 |
ADJ SCREW Price: $1.69 |
| 25 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539108120. Price: $1.99 |
| 25 |
631028A |
GASKET This part replaces 631028. Price: $1.95 |
| 26 |
596582601 |
Nuts This part replaces 539990196. Price: $2.99 |
| 26 |
632164 |
FUEL FITTING This part replaces 631803. Price: $5.95 |
| 27 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 27 |
630739 |
WASHER Price: $1.25 |
| 28 |
595305901 |
Nuts This part replaces 539990546. Price: $2.99 |
| 29 |
597338501 |
Washers This part replaces 539990598. Price: $12.99 |
| 30 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 31 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99 |
| 32 |
596433701 |
GSPW Washers This part replaces 539990517. Price: $2.99 |
| 33 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 539990122. Price: $2.99 |
| 34 |
596789701 |
Screws This part replaces 539111229. Price: $1.99 |
| 35 |
596238401 |
BOLT CUP HEAD SQUARE NECK BOLT This part replaces 539990074. Price: $2.99 |
| 36 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 37 |
595901501 |
Bolts This part replaces 539990208. Price: $3.99 |
| 38 |
596671401 |
Bolts This part replaces 539100472. Price: $3.99 |
| 39 |
539990655 |
HCS 3/8C X 1 1/2 Price: $3.99 |
| 40 |
539990588 |
HCS 3/8C X 2 Price: $3.99 |
| 41 |
539100141 |
HCS 7/16F X 1 1/2 Price: $7.99 |
| 42 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 43 |
581724301 |
DECAL.DECK.6MIL.EURO.NOSTEP This part replaces 539105743. Price: $3.99 |
| 44 |
539111340 |
BLOWER SUPPORT Price: $22.99 |
