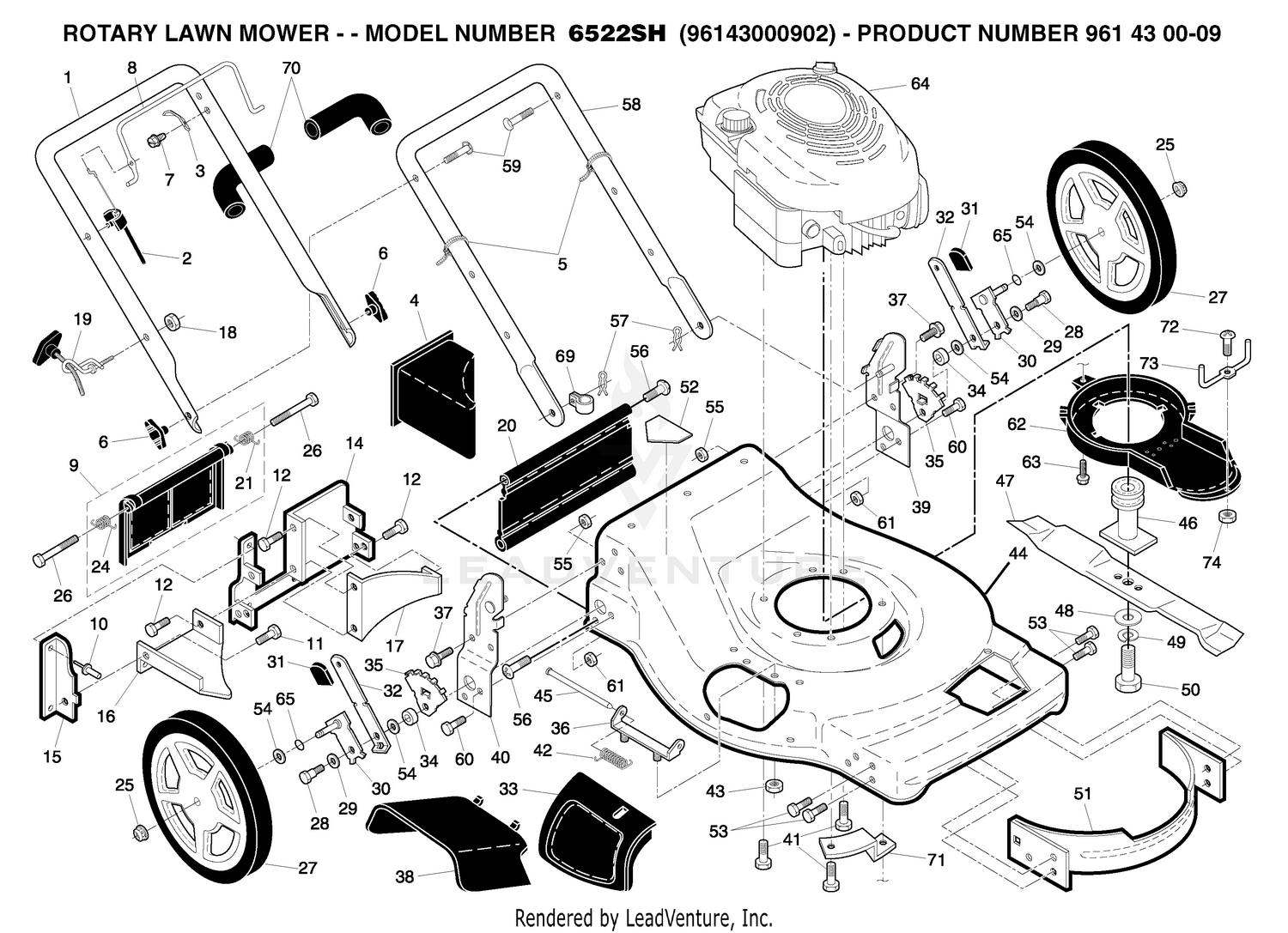

| Ref | Part Number | Description |
|---|
| 1 |
532427658 |
HANDLE.ASM.GRY.W/GRIP This part replaces 532196403. Price: $37.99 |
| 2 |
532183567 |
CABLE.ENGINE BRAKE.MZR Price: $14.99 |
| 3 |
532850733 |
BRACKET.UPSTOP This part replaces 532125162. Price: $4.99 |
| 4 |
532166649 |
PLUG.MULCH.22RD Price: $27.99 |
| 5 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 6 |
532185577 |
HANDLE.KNOB.BLACK This part replaces 532191856. Price: $7.99 |
| 7 |
532750634 |
SCREW Price: $2.99 |
| 8 |
532197019 |
BAIL.DSTRT.FL.AW.CREAS.ORANGE Price: $14.99 |
| 9 |
532193679 |
KIT.DOOR.ASM.REAR.PLAZ.22 Price: $17.99 |
| 10 |
532128415 |
RIVET BLIND Price: $3.99 |
| 11 |
532150050 |
SCREW.HXTAP.10-24 Price: $2.99 |
| 12 |
532054583 |
SCREW Price: $4.99 |
| 14 |
532195622 |
PLATE.BACK.22.RD/VE/STD This part replaces 532197076. Price: $12.99 |
| 15 |
532138860 |
SIDE BAFFLE Price: $3.16 |
| 16 |
532176655 |
BAFFLE.DISCHRG.22RD.VE.N/SLOTS This part replaces 532177133. Price: $8.99 |
| 17 |
532140661 |
BAFFLE.REAR.HSG.ASM.QT.22.BLAC This part replaces 532148941. Price: $6.99 |
| 18 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
| 19 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532194788. Price: $7.99 |
| 20 |
532413160 |
SKIRT.REAR.22RD/SD.FO/VE This part replaces 532189008. Price: $11.99 |
| 21 |
532170938 |
DOOR SPRING LH Price: $4.99 |
| 24 |
532170939 |
DOOR SPRING RH Price: $5.99 |
| 25 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 26 |
532184193 |
BOLT Price: $4.99 |
| 28 |
532174719 |
BOLT SHOULDER 3/8 -16X1 This part replaces 532142748. Price: $7.99 |
| 30 |
532196021 |
ARM.ASM.AXLE.12/14 REC.WHL Price: $7.99 |
| 31 |
532189808 |
KNOB.S/P.RWGD.EXT.ERGO.GREY This part replaces 532190622. Price: $2.99 |
| 32 |
532198456 |
SPRING.SELECTOR.EXTENSION Price: $5.99 |
| 33 |
532197029 |
DOOR.MULCH.22.REAR.FWGD.GREY Price: $11.99 |
| 34 |
532401629 |
SPACER.HEIGHT.ADJUSTER This part replaces 532146630. Price: $3.99 |
| 35 |
532700325 |
WHEEL ADJUSTING BRACKET This part replaces 532155047. Price: $3.99 |
| 36 |
532175735 |
BRACKET.ASM.HINGE.21.FWGD. Price: $4.99 |
| 37 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 39 |
532195915 |
BRACKET.ASM.HDL.LT.EZEM.22.BLA This part replaces 532197150. Price: $11.99 |
| 40 |
532195914 |
BRKT.ASM.HND/HW.RT.BLACK This part replaces 532197151. Price: $11.99 |
| 41 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 42 |
532193000 |
SPRING.TORSION Price: $5.99 |
| 43 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 45 |
532175650 |
ROD.HINGE.21 Price: $4.99 |
| 46 |
532443950 |
KIT.BLADE.ADAPTOR.BELT.GUIDE. This part replaces 532194037. Price: $49.99 |
| 47 |
532141114 |
BLADE 22" Price: $24.99 |
| 48 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 49 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 50 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 51 |
532170031 |
FRONT BAFFLE KIT Price: $22.99 |
| 52 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532107339. Price: $3.99 |
| 53 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 54 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 55 |
596322601 |
Nuts This part replaces 532751592. Price: $2.99 |
| 56 |
532088652 |
HINGE SCREW Price: $3.99 |
| 57 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 58 |
532151590 |
HANDLE.LOWR.DLX.20RD.CLIP.BLAC This part replaces 532153406. Price: $19.99 |
| 59 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $5.99 |
| 60 |
874760612 |
BOLT Price: $3.99 |
| 61 |
596322601 |
Nuts This part replaces 532751592. Price: $2.99 |
| 62 |
532413032 |
KIT.SHIELD.DEBRIS.TORUS. This part replaces 532199314. Price: $19.99 |
| 63 |
532192325 |
SCREW.HEX.WSH Price: $4.99 |
| 65 |
532197480 |
O-RING..070X.487.NEOPRENE Price: $3.99 |
| 69 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
| 70 |
532182748 |
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) Price: $7.99 |
| 71 |
532188839 |
BRACKET.DEBRIS.SHIELD.BZP This part replaces 532190939. Price: $4.99 |
| 72 |
532182227 |
SCREW.#8.MACH Price: $3.99 |
| 73 |
532197162 |
KEEPER.BELT.FGD Price: $2.99 |
| 74 |
532182228 |
NUT.HEX.#8 Price: $4.99 |
