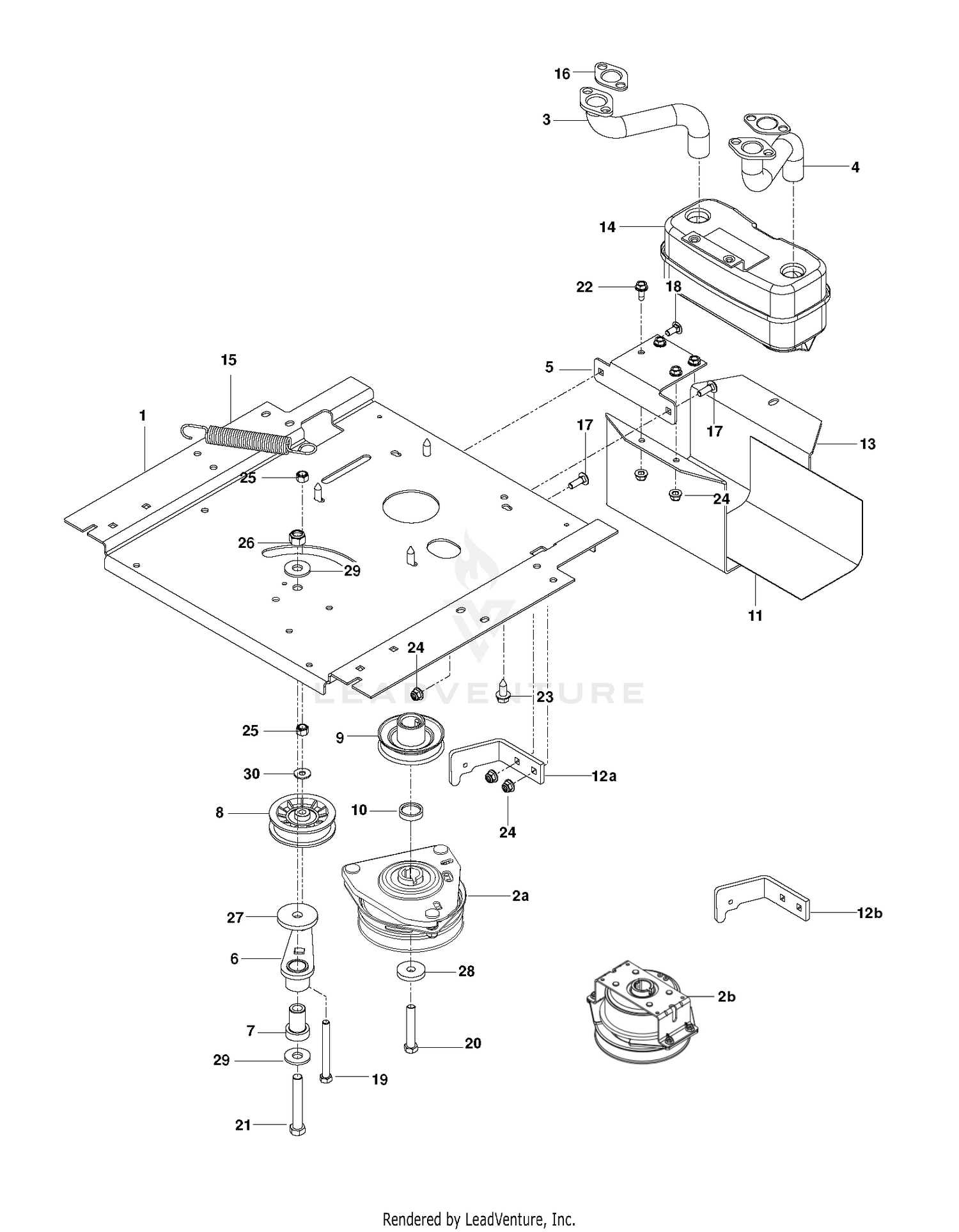

| Ref | Part Number | Description |
|---|
| 1 |
593898602 |
PLATE ENGINE; RZ, 23IN BLACK This part replaces 588017102. Price: $149.99 |
| 2a |
532414336 |
KIT.SVC.CLUTCH.ELECTRIC. This part replaces 532400008. Price: $329.99 |
| 2b |
587241601 |
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 Price: $229.99 |
| 3 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK Price: $22.99 |
| 4 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN Price: $27.99 |
| 5 |
581886702 |
BRACKET MUFFLER MS431BLK Price: $19.99 |
| 6 |
583593901 |
ARM.IDLER This part replaces 532448145. Price: $11.99 |
| 7 |
539101231 |
IDLER SPINDLE Price: $11.99 |
| 8 |
531350601 |
PULLEY IDLER, BACKSIDE 3 INCH This part replaces 539110311. Price: $19.99 |
| 9 |
587537401 |
PULLEY.ENGINE Price: $22.99 |
| 10 |
587660101 |
SPACER.SPACER.625 W/OGURA.LCC Price: $5.99 |
| 11 |
539132859 |
HEAT SHIELD Price: $22.99 |
| 12a |
587633302 |
CLUTCH.STOP.OGURA LCC.BLACK This part replaces 522442506. Price: $7.99 |
| 12b |
587633302 |
CLUTCH.STOP.OGURA LCC.BLACK Price: $7.99 |
| 13 |
587451202 |
GUARD.MUFFLER.WO.TOW.HITCHX431 Price: $44.99 |
| 14 |
539131604 |
MUFFLER ASM TWIN Price: $39.99 |
| 15 |
547878302 |
SPRING BELT TENSIONER BLACK This part replaces 532196105. Price: $5.99 |
| 16 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 17 |
595901501 |
Bolts This part replaces 872140508. Price: $3.99 |
| 18 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 19 |
596433901 |
Screws This part replaces 874520656. Price: $2.99 |
| 20 |
581332806 |
Bolts This part replaces 581332803. Price: $6.99 |
| 21 |
596435301 |
Bolts This part replaces 874780852. Price: $3.99 |
| 22 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 23 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 25 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 26 |
596135601 |
GSPW NUTS This part replaces 873800800. Price: $3.99 |
| 27 |
539112670 |
HEAVY WASHER Price: $3.99 |
| 28 |
532126197 |
WASHER Price: $6.99 |
| 29 |
595316401 |
Washers This part replaces 819182212. Price: $2.99 |
| 30 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
