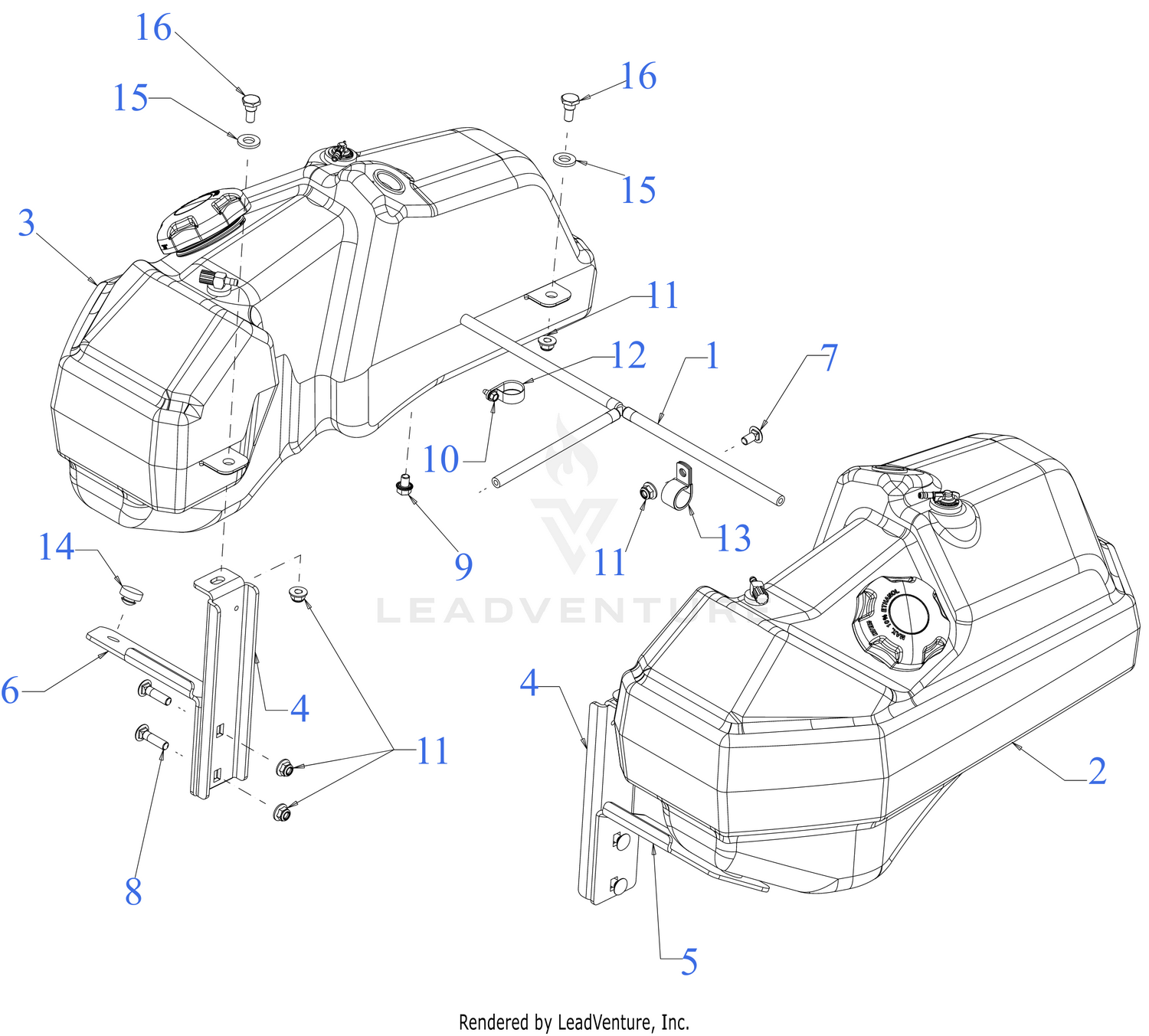

Fuel Tank Mounting
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 651-05381A | FUEL LINE ASSEMBLY Price: $63.99 |
| 7 | 710-0389 | CARRIAGE BOLT 3/8-16 x .750 GR5 Price: $3.89 |
| 8 | 710-0431 | CARRIAGE BOLT 3/8-16 x 1.50 Price: $4.22 |
| 9 | 710-05412 | SCREW 3/8-16 x .500 GR5 Price: $3.37 |
| 10 | 710-0599 | SCREW 1/4-20 X.500 Price: $3.86 |
| 11 | 712-04065 | NUT Price: $3.68 |
| 12 | 726-04119 | DRAIN HOSE CLAMP Price: $2.83 |
| 13 | 726-0475 | HOSE CLAMP 1.0" Price: $12.11 |
| 14 | 735-05058 | RUBBER BUMPER 1.000 x .313 Price: $2.83 |
| 15 | 736-0326 | FLAT WASHER .510 x 1.000 x .125 Price: $3.89 |
