| Ref | Part Number | Description |
|---|

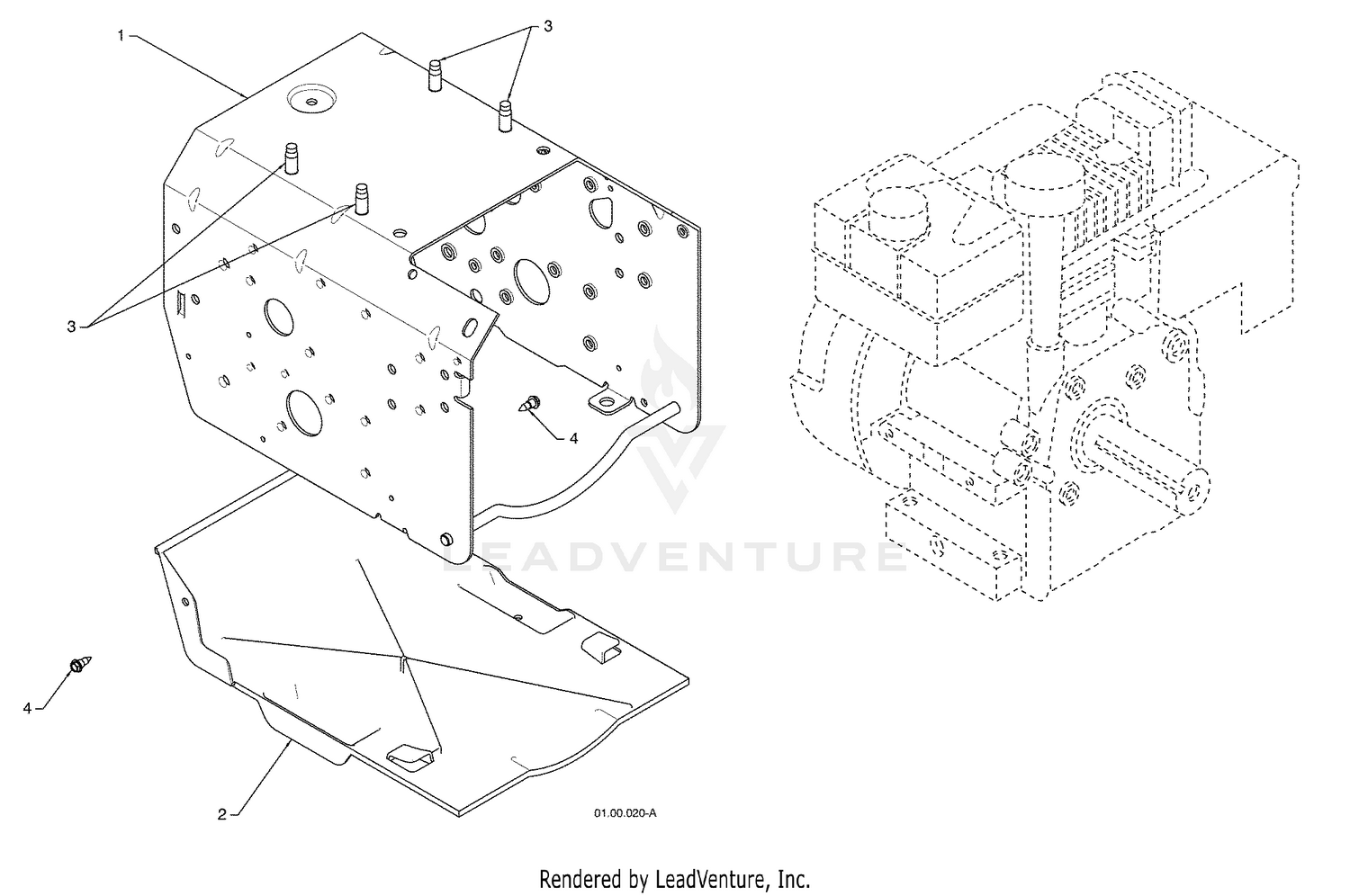

| 1 |
532415307 |
FRAME.WELD.SNOWBLOWER.ORANGE Price: $49.99 |
| 1 |
62-5550 |
DECAL Price: $9.32 |
| 2 |
532410877 |
PAN.BOTTOM.PLASTIC Price: $19.99 |
| 2 |
75-1420-01 |
DISCONTINUED This part replaces 75-1420. Price: Call Us |
| 3 |
106-5950 |
RH FENDER ASM This part replaces 93-7579. Price: $661.25 |
| 3 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 4 |
85-4730 |
DECAL-ONLY, HYD OIL Price: $2.46 |
| 5 |
65-5100 |
HANDLE-DOOR Price: $9.05 |
| 6 |
237-141 |
GROMMET-RUBBER Price: $2.39 |
| 7 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 8 |
93-3636 |
HOOD & CARTON ASM This part replaces 93-0000. Price: $1,654.64 |
| 9 |
93-0081 |
STRIP-SEAL Price: $73.83 |
| 10 |
92-5549 |
DECAL - RM 5300D Price: $69.04 |
| 11 |
3272-4 |
PIN-COTTER Price: $0.25 |
| 12 |
93-0011-03 |
SCREEN-HOOD REAR This part replaces 93-0011. Price: $125.60 |
| 13 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 14 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 15 |
321-39 |
SCREW-HH Price: $0.42 |
| 16 |
62-7400 |
DECAL Price: $24.54 |
| 17 |
63-6900-01 |
LH HOOD HINGE PLATE ASM This part replaces 63-6900. Price: $23.15 |
| 18 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 19 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 20 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 21 |
75-0570 |
CABLE-HOOD Price: $16.66 |
| 22 |
75-6280-03 |
HOSE CLAMP BRKT This part replaces 75-6280. Price: $7.93 |
| 23 |
92-5751 |
DECAL-HOOD, LH Price: $34.66 |
| 24 |
75-1280 |
DECAL - TOWING Price: $8.60 |
| 25 |
93-3601 |
DISCONTINUED Price: Call Us |
| 25 |
93-8097 |
DECAL-SERV INSTR,SWEDISH Price: $21.49 |
| 26 |
75-5810-03 |
BOX-TOOL ASM This part replaces 75-5810. Price: $234.90 |
| 27 |
93-0096 |
DECAL-ACE Price: $9.71 |
| 28 |
52-1320 |
DECAL-DIESEL FUEL Price: $20.70 |
| 29 |
106-5951 |
LH FENDER ASM This part replaces 75-3860. Price: $625.15 |
| 30 |
322-3 |
SCREW-HH Price: $0.79 |
| 31 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 32 |
93-6689 |
DECAL-NO RIDERS This part replaces 75-5190. Price: $9.75 |
| 33 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 34 |
93-8074 |
DISCONTINUED Price: Call Us |
| 35 |
75-0650 |
TREAD-FOOTREST, LH Price: $30.34 |
| 36 |
75-1410-01 |
PLATE-ACCESS, FLOOR This part replaces 75-1410. Price: $142.43 |
| 37 |
75-0630 |
TREAD-FOOT, CENTER Price: $56.24 |
| 38 |
75-1390-01 |
COVER-ACCESS, FRONT This part replaces 75-1390. Price: $78.27 |
| 39 |
75-0620 |
TREAD-FOOT, LH Price: $24.33 |
| 40 |
322-4 |
SCREW-HH Price: $0.35 |
| 41 |
93-3626 |
BRACKET-HOSE Price: $23.80 |
| 42 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 42 |
75-6840 |
KNOB-KNURLED Price: $16.22 |
| 43 |
94-5811 |
DISCONTINUED Price: Call Us |
| 44 |
74-5950 |
LATCH-SWELL Price: $21.28 |
| 45 |
32128-33 |
NUT-HF Price: $0.25 |
| 46 |
3258-166 |
SCREW-PRH Price: $0.28 |
| 47 |
75-6260-03 |
COVER-BOX, TOOL This part replaces 75-6260. Price: $59.24 |
| 48 |
93-3639 |
DECAL- WARNING HILLSIDE Price: $18.15 |
| 49 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 50 |
2412-107 |
CLAMP-R Price: $2.65 |
| 51 |
75-5780 |
HINGE-STEEL Price: $18.08 |
| 52 |
93-8744 |
RIVET-BLIND Price: $0.75 |
| 53 |
133-8095 |
DECAL-CE This part replaces 93-7252. Price: $3.73 |
| 54 |
72-3560 |
DECAL Price: $12.52 |
