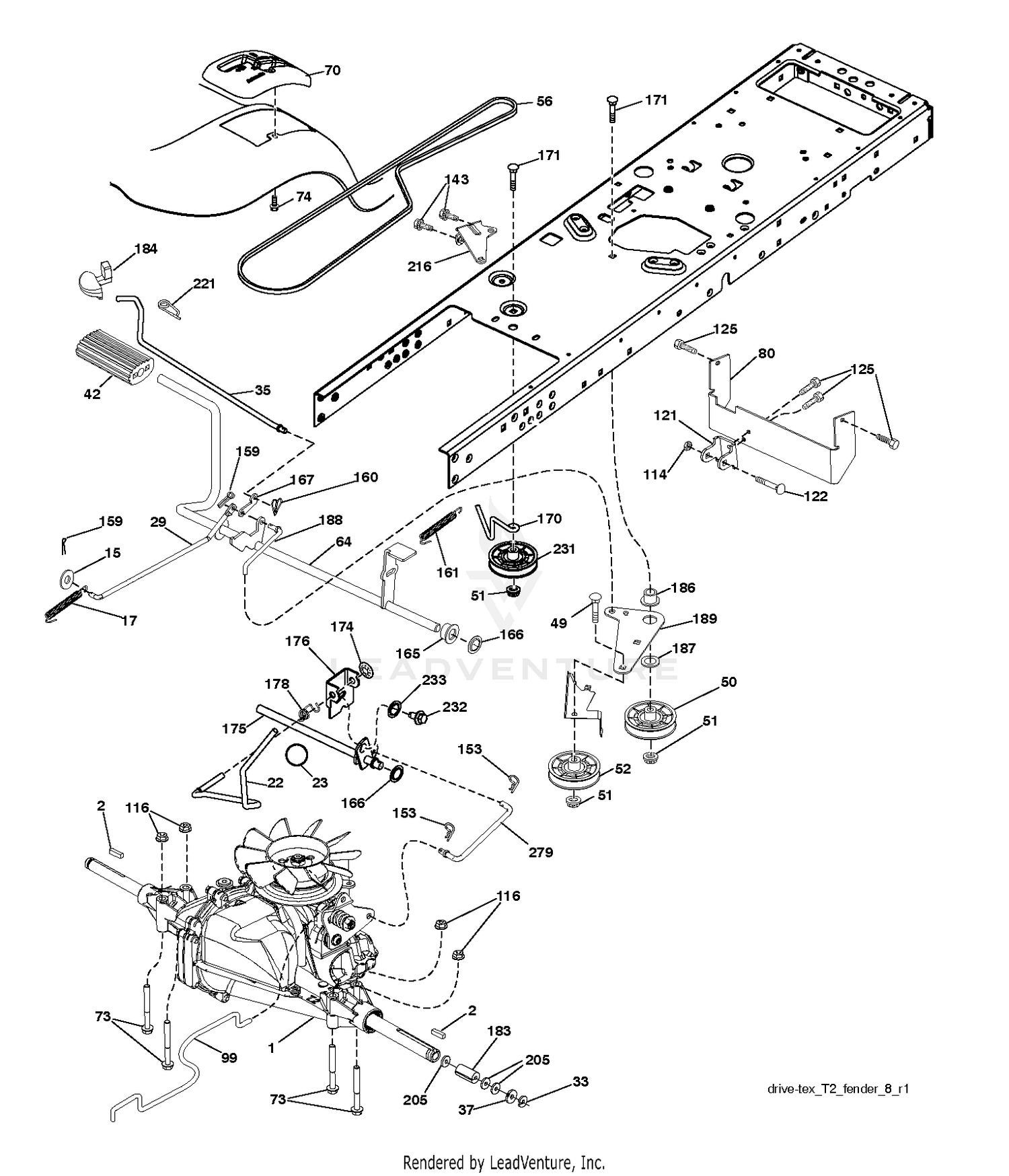

| Ref | Part Number | Description |
|---|
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 2 |
93-7592 |
TREAD-REST, FOOT Price: $13.96 |
| 3 |
75-0620 |
TREAD-FOOT, LH Price: $24.33 |
| 4 |
104-5223 |
TREAD-FOOT, RH Price: $16.15 |
| 5 |
32148-7 |
NUT-CLINCH Price: $0.98 |
| 8 |
105-9860 |
SEAL-FOAM Price: $4.58 |
| 9 |
106-7794-01 |
PLATE-MOUNT, HYD FITTING Price: $15.21 |
| 10 |
322-3 |
SCREW-HH Price: $0.79 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 17 |
532197296 |
SPRING.BRAKE.HG3000/3500 Price: $5.99 |
| 22 |
532197660 |
ROD.SHIFT.FENDER.TLT.2006 Price: $119.99 |
| 23 |
532121274 |
KNOB.DUCKHEAD.1/2 Price: $8.99 |
| 29 |
532423239 |
ROD.BRAKE.T2.TEX This part replaces 532408391. Price: $39.99 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 35 |
596874801 |
Rods This part replaces 532401031. Price: $6.99 |
| 37 |
532121749 |
WASHER Price: $2.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 64 |
532196200 |
SHAFT.ASM.PEDAL.BRAKE. Price: $49.99 |
| 70 |
532439971 |
CONSOLE.SHIFT.STL.HYD.TEX.GREY This part replaces 532411474. Price: $14.99 |
| 73 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 74 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 80 |
581550701 |
STRAP.TORQUE.T2 This part replaces 532408393. Price: $22.99 |
| 99 |
532408418 |
ROD.ASM.BYPASS.SPRING.T2.FS Price: $7.99 |
| 114 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 121 |
532175611 |
BRACKET STRAP TORQUE Price: $6.99 |
| 122 |
872010520 |
BOLT.5/16-18X2.5 Price: $4.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 165 |
532196212 |
BUSHING.SHAFT.BRAKE.HAND Price: $5.99 |
| 166 |
532429164 |
NUT.PUSH.625 This part replaces 532197290. Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532413430 |
KEEPER.CENTER SPAN.1.688 Price: $5.99 |
| 171 |
872110622 |
BOLT Price: $3.99 |
| 174 |
532197289 |
NUT.PUSH.500.2006 Price: $2.99 |
| 175 |
532408539 |
SHAFT.ASM.SHFT.T2.TLT Price: $22.99 |
| 176 |
532196214 |
ARM.CLEVIS.ROD.SHIFT Price: $6.99 |
| 178 |
532197456 |
SPRING.SHIFT.GT2006 Price: $4.99 |
| 183 |
532156972 |
SPACER, AXLE PVST Price: $5.99 |
| 184 |
532411484 |
HANDLE.PARKNG BRK.PRED.LT.428 This part replaces 532409747. Price: $24.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 231 |
532407287 |
IDLER.V-GROOVE.1.688.OFFSET Price: $19.99 |
| 232 |
596238601 |
Bolts This part replaces 874780716. Price: $2.99 |
| 233 |
596135201 |
Washers This part replaces 532405296. Price: $2.99 |
| 279 |
532424155 |
LINK.SHIFT.T2 This part replaces 532408538. Price: $8.99 |
