| Ref | Part Number | Description |
|---|
| 1 |
03888300 |

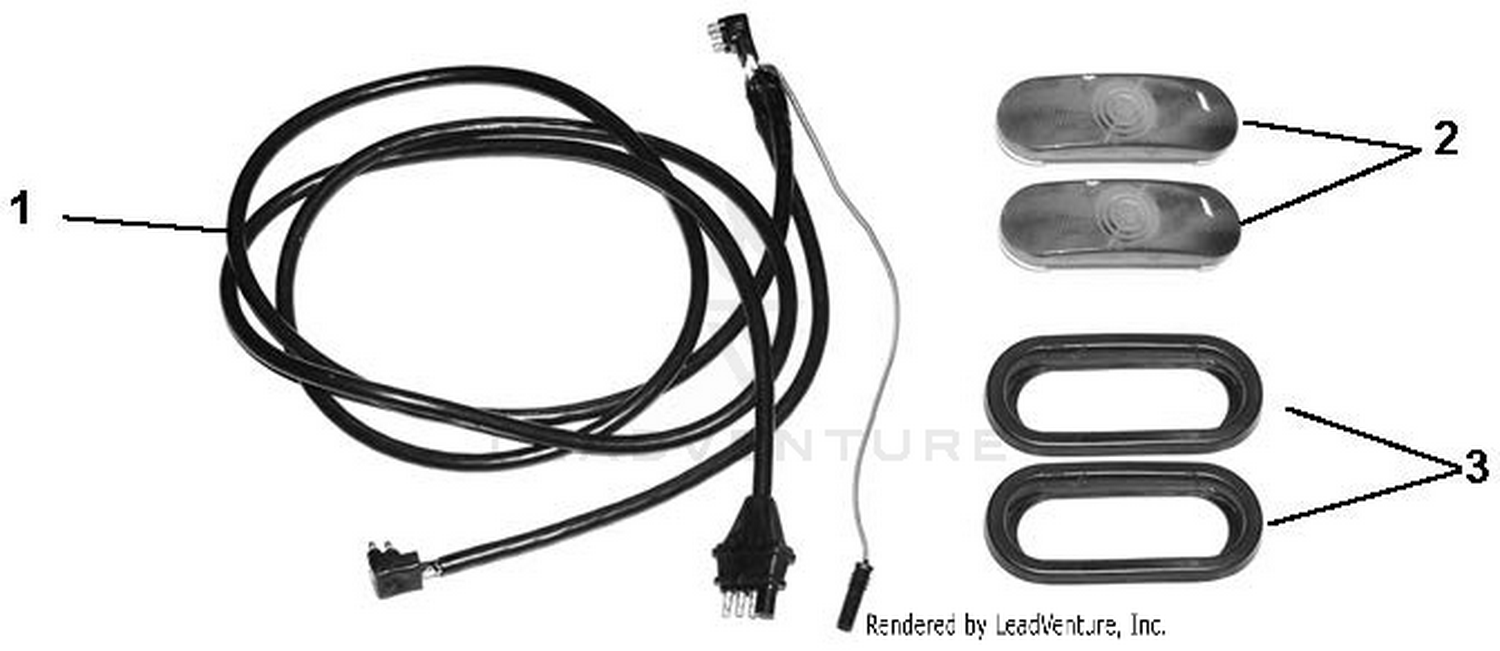

WIRE HRNS,TRAILER LIGHT KIT Price: $54.55 |
| 1 |
37-5600 |
DISCONTINUED Price: Call Us |
| 2 |
03888400 |
TAIL LIGHT HOUSING W/ BULB Price: $31.45 |
| 2 |
30-1020 |
DISCONTINUED Price: Call Us |
| 3 |
30-0980 |
DISCONTINUED Price: Call Us |
| 3 |
481507 |
Insert, Filler Neck Price: Call Us |
| 4 |
3217-6 |
NUT-HEX Price: $1.19 |
| 4 |
481164 |
CAP, HYDRAULIC TANK Price: Call Us |
| 5 |
37-5650 |
DISCONTINUED Price: Call Us |
| 5 |
482571 |
Bushing, 0.56" Dia. Viton Price: Call Us |
| 6 |
3242-6 |
SCREW-SET, SQH Price: $3.60 |
| 6 |
482572 |
Elbow, 90 Degree, 9/16-18 JIC x 9/16 O-Ring Price: Call Us |
| 7 |
3-3267 |
KEY-SQUARE Price: $4.38 |
| 7 |
482573 |
Bushing, 0.78" Dia. Viton Price: Call Us |
| 8 |
3230-16 |
SCREW-CARR Price: $1.79 |
| 8 |
482574 |
Fitting, 90 Degree - 1/2" Hose Price: Call Us |
| 9 |
3230-4 |
BOLT-CARR Price: $0.47 |
| 9 |
427280 |
Bracket, Hydro Tank Mounting Price: Call Us |
| 10 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 10 |
37-5340 |
DISCONTINUED Price: Call Us |
| 11 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 11 |
3257-8 |
KEY-WOODRUFF Price: $4.56 |
| 12 |
251-253 |
BEARING Price: $22.84 |
| 12 |
48136-13 |
Clamp, .69" Max. / .25" Min. Dia. Price: Call Us |
| 13 |
3253-24 |
WASHER-LOCK/SP Price: $0.37 |
| 13 |
48811 |
Hose, 3/8" ID - 10-1/4" Long (Order By The Inch) Price: Call Us |
| 14 |
251-77 |
COLLAR-LOCK, BEARING Price: $10.22 |
| 14 |
48136-05 |
Clamp, Cable 3/4" I.D. Price: Call Us |
| 15 |
39-4370 |
JACKSHAFT Price: $548.06 |
| 15 |
48351 |
Hose Assembly, 1/2" ID (Oil Reservoir to Filter Base) Price: Call Us |
| 16 |
37-5580 |
DISCONTINUED Price: Call Us |
| 16 |
482266-01 |
Elbow, 90 Degree - 9/16" O-Ring x 3/8" Hose Price: Call Us |
| 17 |
322-3 |
SCREW-HH Price: $0.79 |
| 17 |
483863 |
Pump, LH - 10cc (36 Only) Price: Call Us |
| 18 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 18 |
483862 |
Pump, RH - 10cc (36 Only) Price: Call Us |
| 19 |
3242-1 |
SCREW-SQH Price: $3.66 |
| 19 |
48350-02 |
Elbow, 90 Degree 3/4-16 JIC x 3/4-16 O-Ring Price: Call Us |
| 20 |
485847 |
Tee, 3/4" O-Ring Price: Call Us |
| 20 |
5-7280 |
KEY Price: $4.64 |
| 21 |
32-1790 |
DISCONTINUED Price: Call Us |
| 21 |
485963 |
Drain Hose Assy. Price: Call Us |
| 22 |
3242-2 |
SCREW-SQH Price: $1.29 |
| 22 |
48771-02 |
Plug, JIC 3/4-16 UNF Price: Call Us |
| 23 |
251-286 |
FLANGE This part replaces 251-285. Price: $26.78 |
| 23 |
482417 |
Filter Head Assembly Price: Call Us |
| 24 |
04001-19 |
Bolt, Hex Head, 3/8-16 x 1 Gr. 5 Price: Call Us |
| 24 |
323-4 |
SCREW-HH Price: $1.02 |
| 25 |
251-286 |
FLANGE Price: $26.78 |
| 25 |
48462-01 |
OIL FILTER, SPECIAL Price: Call Us |
| 26 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 26 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 27 |
04001-52 |
Bolt, Hex Hd. 1/2-13 x 2-1/2" (lower) Price: Call Us |
| 27 |
32128-20 |
NUT-HF Price: $0.99 |
| 28 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 28 |
485922 |
Hose Assy., 11-1/4" Price: Call Us |
| 29 |
3272-52 |
DISCONTINUED Price: Call Us |
| 29 |
484503 |
Hose Assy., 13-1/4" Price: Call Us |
| 30 |
31-0680 |
DISCONTINUED Price: Call Us |
| 30 |
485903 |
Tube Assy., 1/2 x 2 x 2" Price: Call Us |
| 31 |
37-5470 |
DISCONTINUED Price: Call Us |
| 31 |
485904 |
Tube Assy., 1/2 x 2 x 3-1/4" Price: Call Us |
| 32 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 32 |
48572-02 |
TUBE UNION, 3/4-16 JIC TO 7/8-14 "O" RING Price: Call Us |
| 33 |
32-1450 |
DISCONTINUED Price: Call Us |
| 33 |
483388 |
Wheel Motor Price: Call Us |
| 34 |
04021-19 |
Locknut, Hex 1/2-13 Center Lock Price: Call Us |
| 34 |
30-8670 |
DISCONTINUED Price: Call Us |
| 35 |
04008-01 |
Bolt, Serr. Flange 1/2-20 x 4.563" Price: Call Us |
| 35 |
31-7620 |
DISCONTINUED Price: Call Us |
| 36 |
31-0210 |
DISCONTINUED Price: Call Us |
| 37 |
31-9500 |
DISCONTINUED Price: Call Us |
| 37 |
48679 |
HEX CASTLE NUT, 3/4-28 UNEF Price: Call Us |
| 38 |
3272-23 |
PIN-COTTER Price: $0.28 |
| 38 |
422214 |
Lock Washer, Wheel Motor Price: Call Us |
| 39 |
04028-02 |
Wheel Nut, 1/2-20 x 13/16 Price: Call Us |
| 39 |
32152-2 |
NUT-LOCK, CONE Price: $1.79 |
| 40 |
04102-03 |
Bolt, Hex Head 7/16-20 x 2-1/4" w/Patch (Kawasaki) Price: Call Us |
| 40 |
323-11 |
SCREW-HH Price: $1.08 |
| 41 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 41 |
37-5160 |
DISCONTINUED Price: Call Us |
| 42 |
04041-28 |
Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52) Price: Call Us |
| 42 |
37-5620 |
DISCONTINUED Price: Call Us |
| 43 |
37-5250 |
DISCONTINUED Price: Call Us |
| 43 |
462166 |
Clutch w/Tag GT2.5-FE02 (48 / 52) Price: Call Us |
| 44 |
04063-28 |
Key, 1/4 x 1/4 x 3-1/2" Price: Call Us |
| 44 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 45 |
04001-51 |
Capscrew, Hex Head 3/8-16 x 3-3/4" Price: Call Us |
| 45 |
37-5610 |
DISCONTINUED Price: Call Us |
| 46 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 46 |
251-287 |
DISCONTINUED Price: Call Us |
| 47 |
04043-04 |
Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8 Price: Call Us |
| 47 |
37-5070 |
DISCONTINUED Price: Call Us |
| 48 |
37-5660 |
DISCONTINUED Price: Call Us |
| 48 |
463205 |
Idler Arm Assy., Pump Drive Price: Call Us |
| 49 |
109842 |
BEARING-BALL This part replaces 31-0530. Price: $25.99 |
| 49 |
48224 |
BEARINGS, BALL, NEUTRAL RETURN Price: Call Us |
| 50 |
30-5440 |
DISCONTINUED Price: Call Us |
| 50 |
483526 |
Spring, Transmission Idler Price: Call Us |
| 51 |
483802 |
Pulley, 4-3/4" OD - 1.125 Bore Price: Call Us |
| 52 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2-1/4" - 61" Price: Call Us |
| 53 |
483214 |
Pulley, Idler 4†Dia. Price: Call Us |
| 54 |
04001-172 |
Bolt, Hex Head 1/4-20 x 1" Grade 8 Black Price: Call Us |
| 54 |
302-53 |
DISCONTINUED Price: Call Us |
| 55 |
482085 |
Hub, Tapered, 15mm Bore Price: Call Us |
| 56 |
04063-14 |
KEY, 5 MM X 5 MM X 25 MM Price: Call Us |
| 57 |
482649 |
Pulley, 5.45 OD - Tapered Bore" Price: Call Us |
| 58 |
485902 |
Belt, Pump Drive - SVRII-36 Price: Call Us |
| 59 |
484128 |
Pulley, 4" Dia. Idler Price: Call Us |
| 60 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2-1/4" - 61" Price: Call Us |
| 61 |
43683 |
Pivot, Idler Price: Call Us |
| 62 |
43720 |
Spacer, Idler Pulley - SFZ61 Price: Call Us |
| 63 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 64 |
4200433 |
Anti-Rotation Weldment Price: Call Us |
| 65 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 66 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 67 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black Price: Call Us |
| 68 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 70 |
485993 |
Tube Assy., 1/2 x 2" Wide Price: Call Us |
| 71 |
428403 |
Heatshield, Muffler- SVRII Price: Call Us |
| 72 |
428449 |
MTG BRKT, MUFFLER Price: Call Us |
| 73 |
488487 |
Muffler, 19X - SVRII Price: Call Us |
| 74 |
483017 |
Oil Drain, 35BV & 37BV-EFI - Briggs & Stratton Price: Call Us |
| 75 |
485961 |
FITTING, M14 FEMALE TO M20 MALE Price: Call Us |
| 76 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 77 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 78 |
431041 |
BUSHING, UHMW Price: Call Us |
| 79 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 80 |
04001-17 |
Bolt, Hex Head 5/16-18 x 2-1/2" (x3) (35BV & 37BV-EFI) Price: Call Us |
| 81 |
04040-04 |
Flatwasher, 5/16-.344 x .688 x .065 (48V / 52V) Price: Call Us |
