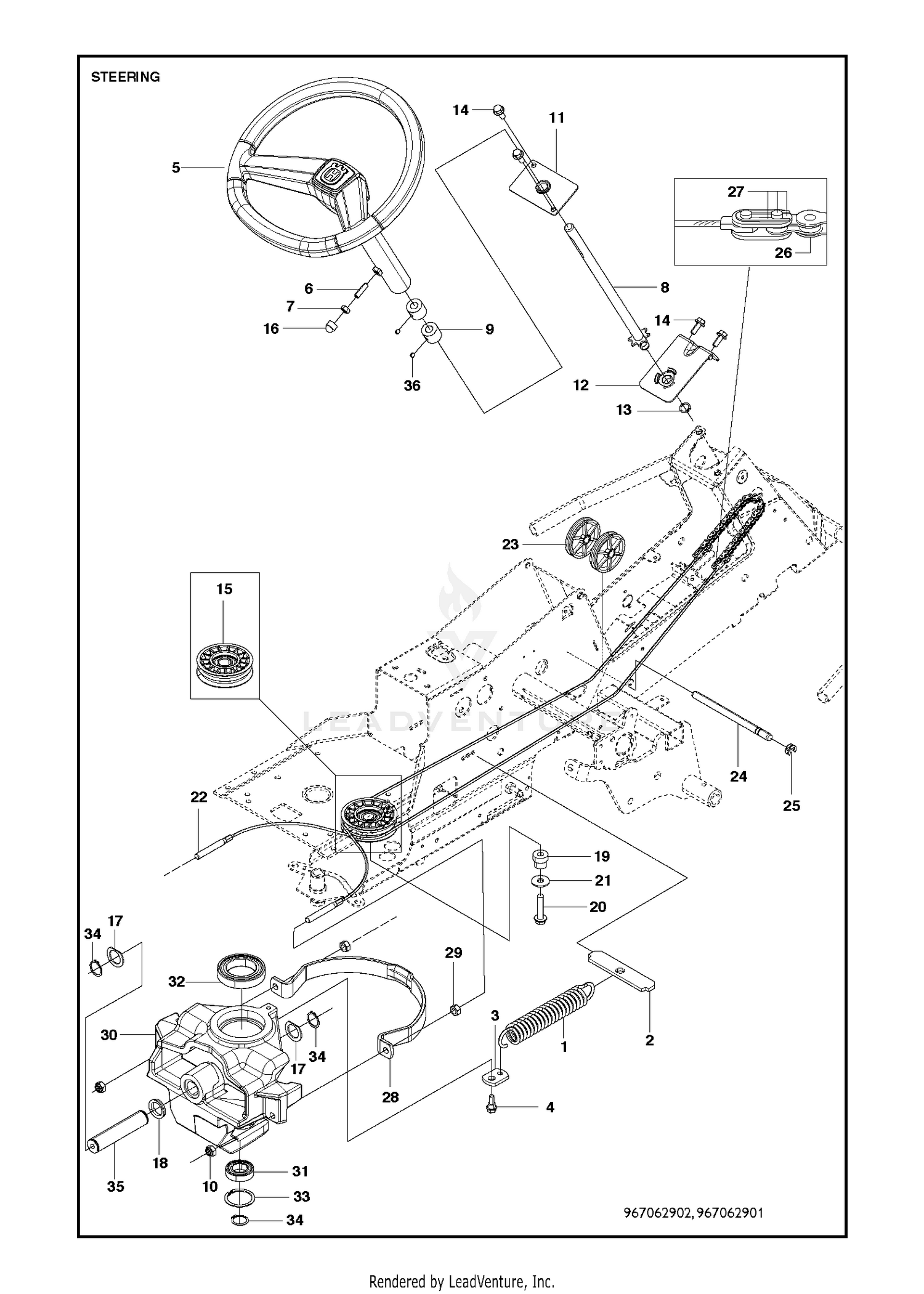

| Ref | Part Number | Description |
|---|
| 1 |
506671901 |
SPRING Price: $22.99 |
| 2 |
590735401 |
Brackets This part replaces 506576301. Price: $12.99 |
| 3 |
506670801 |
CONNECTOR Price: $6.99 |
| 4 |
506597401 |
BOLT Price: $5.99 |
| 5 |
577960402 |
STEERING WHEEL Price: $64.99 |
| 6 |
728745505 |
SCREW Price: $3.99 |
| 7 |
731231801 |
NUT Price: $3.99 |
| 8 |
583899901 |
Steering Price: $49.99 |
| 9 |
587080901 |
DRIVER STEERING WHEEL This part replaces 506863401. Price: $7.99 |
| 10 |
130-1546 |
PISTON (STD) Price: $270.64 |
| 10 |
130-1549 |
PISTON (+0.50MM) Price: $230.54 |
| 10 |
732212001 |
NUT This part replaces 732212051. Price: $3.99 |
| 11 |
584155601 |
BRACKET STEERING ASSY WITH BUS Price: $14.99 |
| 12 |
583899701 |
BRACKET STEERING ROD ASSY Price: $19.99 |
| 13 |
735311700 |
RETAINING RING SGA 15 Price: $2.99 |
| 14 |
506570104 |
BOLT Price: $4.99 |
| 15 |
576492501 |
PULLEY Price: $44.99 |
| 16 |
544433201 |
PROTECTIVE COVER Price: $3.99 |
| 18 |
740681421 |
V-RING Price: $3.99 |
| 19 |
576487301 |
Price: Call Us |
| 20 |
130-1506 |
PISTON RING ASM (STD) Price: $205.88 |
| 20 |
130-1507 |
PISTON RING ASM (+0.50MM) Price: $207.53 |
| 20 |
506675403 |
COLLAR SCREW Price: $2.29 |
| 21 |
734117441 |
WASHER Price: $3.99 |
| 22 |
501604804 |
WIRE ASSY This part replaces 577199904. Price: $17.99 |
| 23 |
506522401 |
ROLLER Price: $9.99 |
| 24 |
506539404 |
SHAFT Price: $14.99 |
| 25 |
735311420 |
RETAINING RING Price: $2.99 |
| 26 |
506554601 |
STEERING CHAIN Price: $17.99 |
| 27 |
506554701 |
LINK Price: $4.99 |
| 28 |
544427301 |
WIRE GUIDE Price: $29.99 |
| 29 |
731232001 |
Nut Price: $3.99 |
| 30 |
577659301 |
SPINDLE Price: $159.99 |
| 30 |
98-9513 |
PIN-PISTON Price: $13.17 |
| 31 |
738210504 |
Ball Bearing 6005-2rs Price: $28.99 |
| 32 |
738211004 |
BALL BEARING 6010 2RS1 Price: $39.99 |
| 33 |
735314010 |
CIRCLIP SGH 47 Price: $4.99 |
| 34 |
735312600 |
RETAINING RING SGA 25 Price: $2.99 |
| 35 |
506985901 |
SHAFT Price: $44.99 |
| 36 |
728844305 |
Screw Price: $1.99 |
| 40 |
98-9514 |
CIRCLIP-PIN, PISTON Price: $2.79 |
| 50 |
117-7586 |
CONNECTING ROD ASM Price: $547.99 |
| 60 |
115-3014 |
BUSHING-PIN, PISTON Price: $19.81 |
| 70 |
98-9517 |
BOLT-ROD, CONNECTING Price: $10.31 |
| 80 |
117-7588 |
METAL-CRANKPIN (-0.4MM) Price: $49.06 |
| 80 |
98-9519 |
BEARING-ROD (-0.2MM) Price: $43.73 |
| 80 |
98-9553 |
BEARING-ROD (STD) Price: $52.92 |
| 90 |
130-1375 |
CRANKSHAFT ASM Price: $1,550.05 |
| 100 |
117-7561 |
GEAR-CRANKSHAFT Price: $87.12 |
| 110 |
98-9666 |
KEY Price: $3.58 |
| 120 |
127-0445 |
GEAR-DRIVE, OIL PUMP Price: $14.70 |
| 130 |
98-9522 |
SLEEVE-CRANKSHAFT Price: $116.47 |
| 140 |
127-0444 |
COLLAR-CRANKSHAFT Price: $42.94 |
| 150 |
105-3783 |
O-RING Price: $6.33 |
| 160 |
112-7005 |
BEARING-MAIN (STD) Price: $66.99 |
| 160 |
127-0432 |
METAL-CRANKSHAFT (-0.4MM) Price: $39.56 |
| 160 |
98-9528 |
BEARING-MAIN (-0.2MM) Price: $15.04 |
| 170 |
127-0416 |
METAL-SIDE (+0.2MM) Price: $21.04 |
| 170 |
127-0417 |
METAL-SIDE (+0.40MM) Price: $12.65 |
| 170 |
98-9413 |
BEARING-THRUST (STD) Price: $16.90 |
| 180 |
127-0437 |
METAL-SIDE (+0.2MM) Price: $18.42 |
| 180 |
98-9688 |
BEARING-THRUST (STD) Price: $16.90 |
