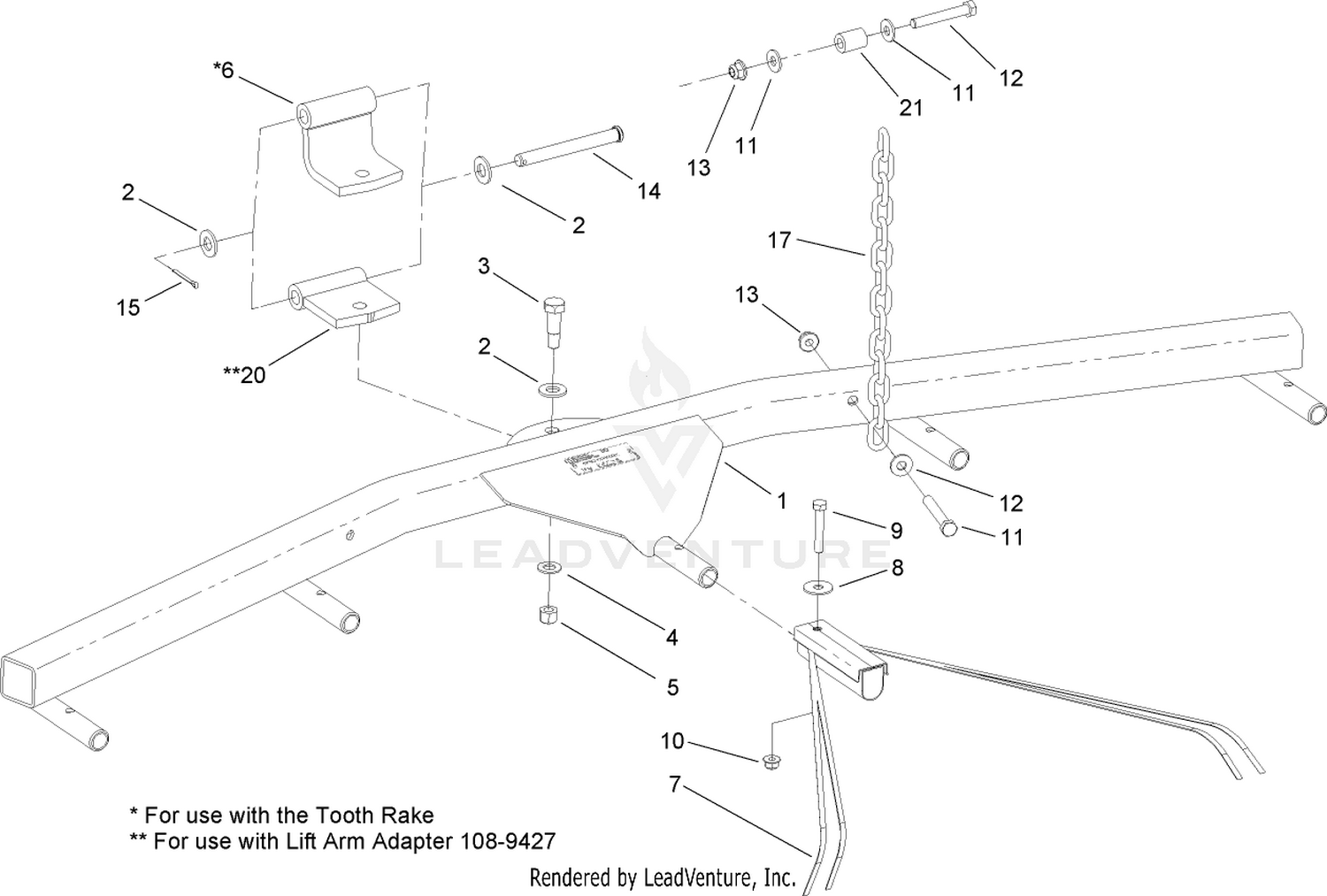

| Ref | Part Number | Description |
|---|
| 1 |
108-3198-03 |
HANGER ASM Price: $536.14 |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 3 |
80-2050 |
BOLT-SHOULDER Price: $29.15 |
| 4 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 5 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 6 |
108-9429-03 |
PIVOT ASM Price: $81.48 |
| 7 |
117-4689 |
SPRING RAKE KIT This part replaces 85-0360. Price: $65.49 |
| 8 |
3256-35 |
WASHER-FLAT Price: $0.68 |
| 9 |
322-21 |
SCREW-HH Price: $4.29 |
| 10 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 11 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 12 |
323-47 |
SCREW-HH Price: $1.22 |
| 13 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 14 |
283-83 |
PIN-CLEVIS Price: $9.52 |
| 15 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 17 |
84-2452 |
CHAIN-14 LINK, STRAIGHT Price: $13.35 |
| 19 |
108-9427 |
LIFT ARM ADAPTER ASM Price: $761.33 |
| 20 |
112-1428-03 |
PIVOT ASM Price: $70.30 |
